Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. DISCHARGE FUEL SYSTEM PRESSURE

    (Refer to PRECAUTION [10/2014 - ] )

  3. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
  5. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  6. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  7. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  8. REMOVE EGR VALVE ASSEMBLY

    Refer to PROCEDURE - Step 4

  9. REMOVE VACUUM SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 2

  10. SEPARATE INTAKE MANIFOLD
    1. Slide the clip and disconnect the No. 2 ventilation hose from the intake manifold.
      GTY317766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

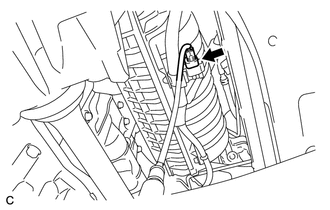

    2. Disconnect the heated oxygen sensor connector.
      GTY539692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

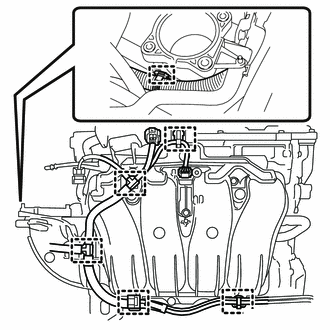

    3. Disconnect the 6 wire harness clamps.
      GTY317765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 bolts and separate the intake manifold from the engine assembly.
      GTY317771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  12. REMOVE FUEL DELIVERY PIPE

    Refer to PROCEDURE - Step 7

  13. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold from the vehicle.
    2. Remove the intake manifold gasket from the intake manifold.
      GTY317772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

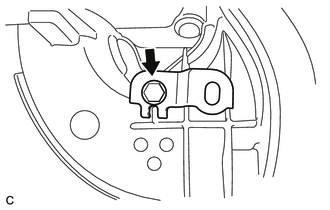

    3. Remove the bolt and wire harness clamp bracket.
      GTY317773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

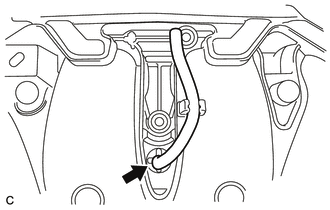

    4. Remove the vacuum hose from the intake manifold.
      GTY317774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Slide the clip and remove the fuel vapor feed hose from the intake manifold.
      GTY319437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
