Removal [10/2014 - ]: Procedure

  1. DRAIN COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE EGR VALVE ASSEMBLY

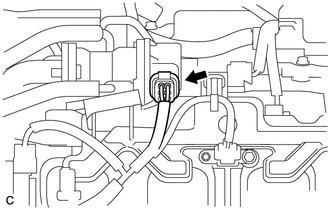

    1. Disconnect the EGR valve assembly connector.
      GTY322026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

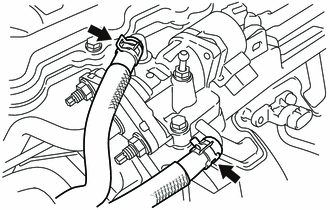

    2. Slide the 2 clips and disconnect the 2 water by-pass hoses from the EGR valve assembly.
      GTY478707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

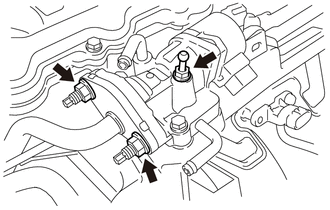

    3. Using a 10 mm deep socket wrench, remove the bolt from the EGR valve assembly.
      GTY482326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a 12 mm deep socket wrench, remove the 2 nuts from the EGR valve assembly.

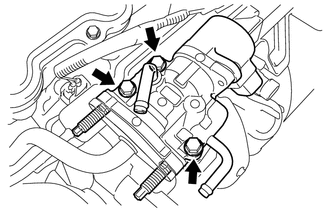

    5. Remove the 3 bolts and EGR valve assembly from the intake manifold.
      GTY478708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

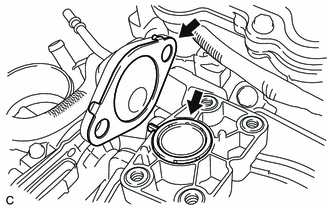

    6. Remove the EGR valve gasket from the No. 1 EGR pipe.
      GTY317756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the EGR inlet gasket from the intake manifold.
