Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER
    1. Disengage the claw to remove the luggage trim service hole cover.
      GTY546337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] or INITIALIZATION [10/2015 - ] ).

  4. REMOVE AUXILIARY BATTERY
    1. Open the auxiliary battery terminal cap.

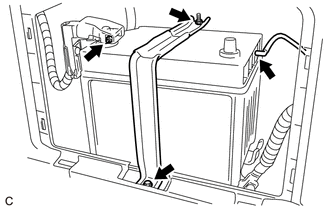

      GTY372101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the nut, and disconnect the cable from the positive (+) auxiliary battery terminal.
    3. Disconnect the auxiliary battery hose.
    4. Loosen the nut and remove the bolt.
    5. Remove the auxiliary battery clamp.
    6. Remove the auxiliary battery.
