Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  2. REMOVE VACUUM SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR)

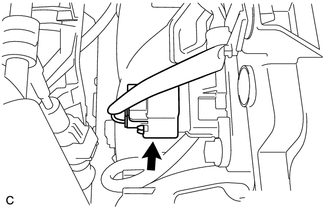

    1. Disconnect the connector from the vacuum sensor (manifold absolute pressure sensor).
      GTY319439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

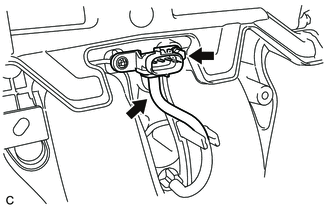

    2. Disconnect the vacuum hose from the vacuum sensor (manifold absolute pressure sensor).
      GTY317752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and vacuum sensor (manifold absolute pressure sensor) from the intake manifold.
