Installation (To 12/2010): Installation

  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

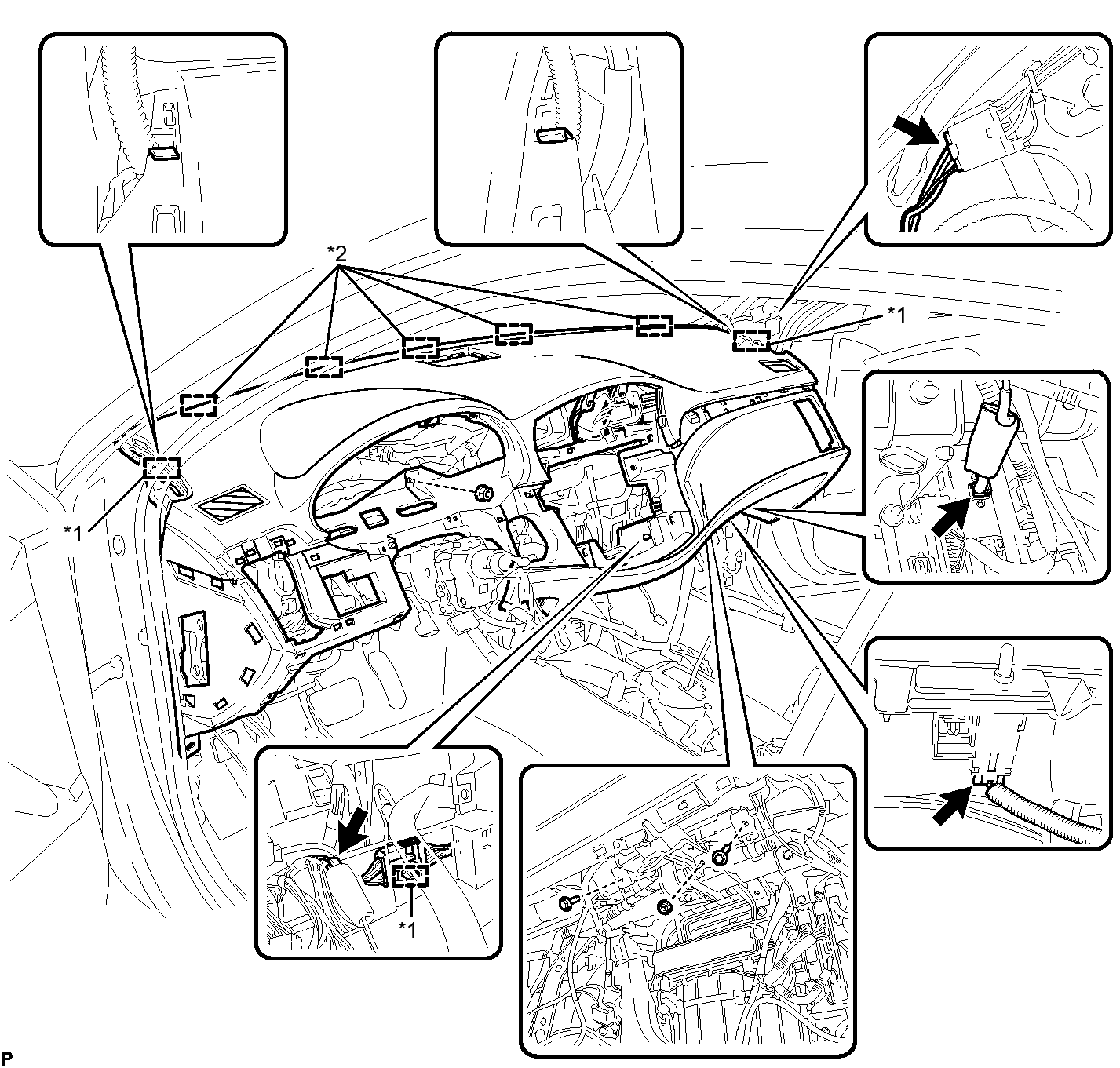

    1. Engage the 5 pins.
      Fig 1: Identifying Instrument Panel Safety Pad Sub-Assembly Pin Location
      GTY303419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Clamp *2 Pin
    2. Install the 2 bolts <A> and 2 nuts <F>.

      Bolt <A>

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    3. Engage each clamp.
    4. Connect each connector.
  2. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  . Refer to INSTALLATION - Step 6
  3. INSTALL TIRE PRESSURE MONITOR ECU  . Refer to INSTALLATION - Step 1
  4. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 1
  5. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 2
  6. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY
  7. INSTALL NO. 1 SPEAKER HOLE COVER
    1. Engage the 12 claws to install the No. 1 speaker hole cover.
      Fig 2: Locating No. 1 Speaker Hole Cover Claws
      GTY305139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    1. Engage the 2 clips.
    2. Install the lower center instrument panel finish panel with the 2 screws <E>.
  9. INSTALL FRONT CONSOLE BOX
    1. Engage the 2 claws.
    2. Install the front console box with the 2 nuts <F> and screw <E>.
  10. INSTALL CONSOLE BOX ASSEMBLY
    1. Install the console box assembly with the 2 bolts <D> and 2 screws <E>.
    2. Connect each connector.
  11. INSTALL CONSOLE BOX CARPET
    1. Install the console box carpet.
  12. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Connect each connector.
      Fig 3: Identifying Upper Console Panel Sub-Assembly Clip and Claw Location
      GTY295218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 10 clips to install the upper console panel sub-assembly.
    3. Engage the 6 claws to install the upper console box.
      Fig 4: Identifying Upper Console Box Claw Location
      GTY303903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL SEAT HEATER SWITCH (w/ Seat Heater System)
    1. Connect the connector.
    2. Engage the 4 claws to install the seat heater switch.
      Fig 5: Identifying Seat Heater Switch (W/ Seat Heater System) Claw Location
      GTY304071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
    1. Engage the 5 claws to install the position indicator housing assembly.
      Fig 6: Identifying Position Indicator Housing Assembly Claw Location
      GTY304879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob clockwise to install the shift lever knob sub-assembly.
      Fig 7: Identifying Shift Lever Knob Sub-Assembly Claw, Clip and Guides Location
      GTY297268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL INSTRUMENT SIDE PANEL RH
    1. Engage the claw, 2 clips and 3 guides to install the instrument side panel RH.
  17. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH
    1. Engage the 3 claws and clip.
    2. Install the lower instrument panel finish panel RH with the bolt <B> or <C> and 4 screws <E>.
  18. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect each connector.
    2. Engage the 4 claws and 2 guides to install the No. 2 instrument panel under cover sub-assembly.
      Fig 8: Identifying No. 2 Instrument Panel Under Cover Sub-Assembly Claws and Guides Location
      GTY307670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT DOOR SCUFF PLATE RH
  20. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
  21. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 6 claws to install the No. 4 instrument panel register assembly.
  22. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Engage the 4 clips to install the No. 2 instrument cluster finish panel garnish.
  23. INSTALL INSTRUMENT SIDE PANEL LH
    1. Engage the 4 claws and 3 guides to install the instrument side panel LH.
  24. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  25. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH
    1. Connect each connector.
    2. Engage the 7 claws and 4 clips.
    3. Engage the 2 claws to connect the room temperature sensor.
    4. Connect the hood lock control cable.
    5. Install the lower instrument panel finish panel LH with bolt <B> or <C> and screw <E>.
      Fig 9: Identifying Lower Instrument Panel Finish Panel LH Screw Location
      GTY301275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Close the cover as shown in the illustration.
  26. INSTALL FRONT DOOR SCUFF PLATE LH
  27. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
  28. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 4 clips to install the No. 1 instrument panel register assembly.
  29. INSTALL COMBINATION METER ASSEMBLY  . Refer to INSTALLATION - Step 1
  30. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Engage the 3 claws.
    2. Install the No. 2 instrument cluster finish panel subassembly with the 2 screws <E>.
  31. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Connect each connector.
    2. Engage the 8 clips to install the instrument panel sub-assembly.
  32. INSTALL INSTRUMENT PANEL FINISH PLATE (w/o Smart Key System)
    1. Install the instrument panel finish plate.
  33. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Engage the 2 clips to install the No. 1 instrument cluster finish panel garnish.
      Fig 10: Identifying No. 1 Instrument Cluster Finish Panel Garnish Clip
      GTY303647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect each connector.
    2. Engage the 9 claws and 2 clips to install the center instrument cluster finish panel sub-assembly.
  35. INSTALL INTEGRATION CONTROL AND PANEL WITH NAVIGATION RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to INSTALLATION - Step 4
  36. INSTALL INTEGRATION CONTROL AND PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  . Refer to INSTALLATION - Step 4

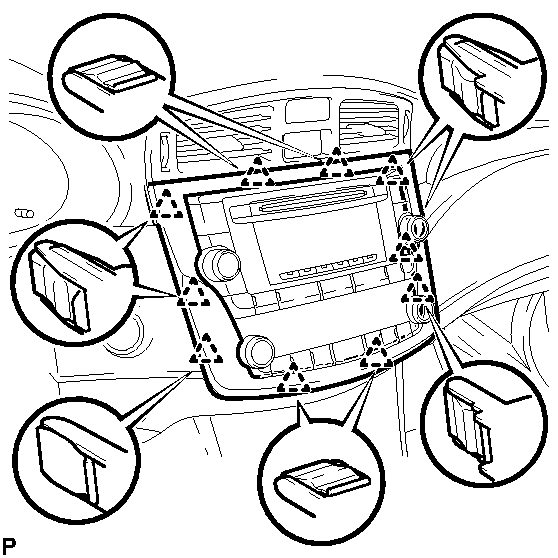

  37. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
    1. Engage the 10 clips to install the center upper instrument cluster finish panel.
      Fig 11: Locating Center Upper Instrument Cluster Finish Panel
      GTY303827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 8
  39. INSTALL UPPER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 9
  40. INSTALL LOWER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 10
  41. ADJUST SPIRAL CABLE
  42. INSTALL STEERING WHEEL ASSEMBLY  . Refer to INSTALLATION - Step 14
  43. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  44. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 2
  45. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 3
  46. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  47. INSPECT STEERING PAD

    Refer to ON-VEHICLE INSPECTION

  48. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
