Installation (To 12/2010): Installation

INSTALL TIRE PRESSURE WARNING ECU
1. Install the tire pressure warning ECU with the screw.

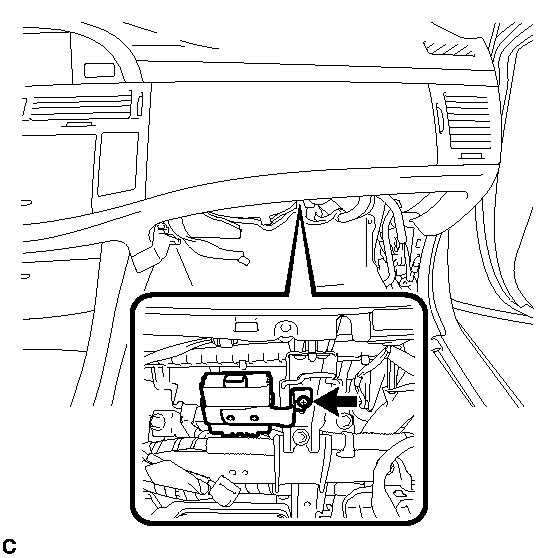

  Fig 1: Locating Tire Pressure Warning ECU With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector to the tire pressure warning ECU.

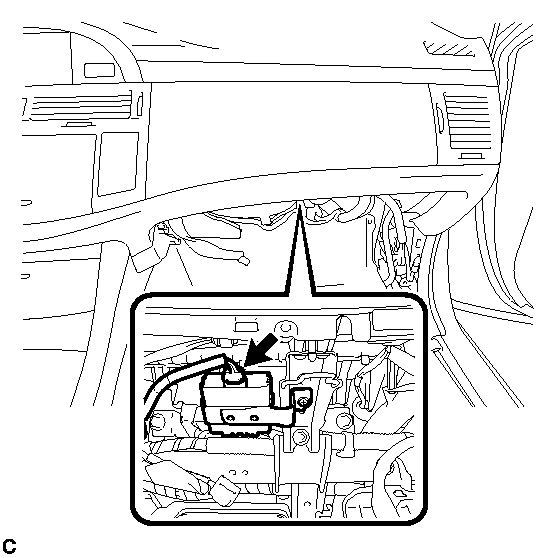

  Fig 2: Locating Tire Pressure Warning ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL LOWER RH
INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2
INSTALL FRONT DOOR SCUFF PLATE RH
INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REGISTER TRANSMITTER ID
HINT:

Refer to REGISTRATION
INSPECT TIRE PRESSURE WARNING SYSTEM
HINT:

Refer to TEST MODE PROCEDURE
INITIALIZE SYSTEM
NOTE:
- Be sure to register the transmitter IDs of all tires including the grand spare tire in the ECU before initialization.
- Be sure to inflate all tires including the grand spare tire to the proper inflation pressure before initialization.
HINT:

Refer to INITIALIZATION
