Roof Headlining: Installation

INSTALL NO. 1 ROOF WIRE (w/o Sliding Roof)
1. Install the No. 1 roof wire.

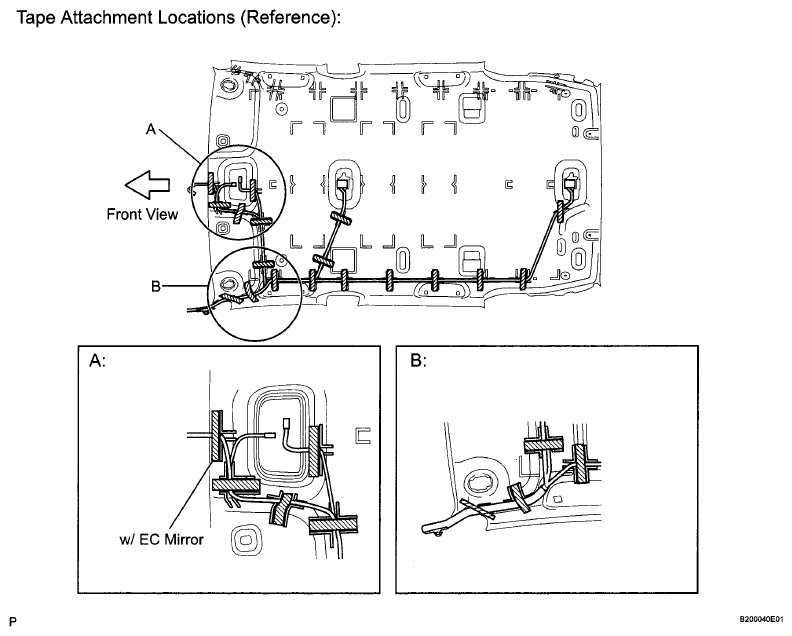

  Fig 1: Identifying Adhesive Tape Attachment Location On No. 1 Roof Wire (W/O Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply adhesive tape to the locations shown in the illustration.
  HINT:

  As shown in the illustration, line up and secure the reference tape of the wire harness to the tip of the roof headlining assembly.
INSTALL NO. 1 ROOF WIRE (w/ Sliding Roof)
1. Engage the 3 clamps, and install the No. 1 roof wire.

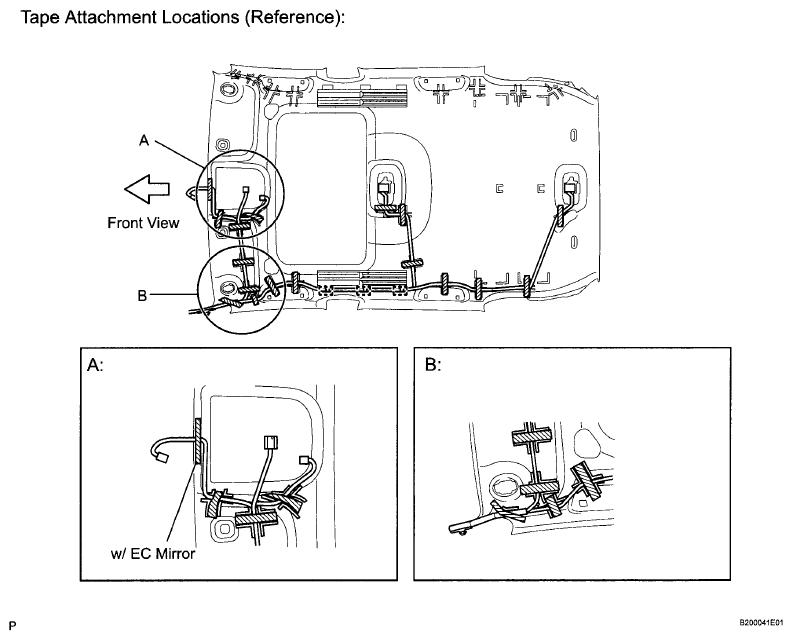

  Fig 2: Identifying Adhesive Tape Attachment Location On No. 1 Roof Wire (W/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply adhesive tape to the locations shown in the illustration.
  HINT:

  As shown in the illustration, line up and secure the reference tape of the wire harness to the tip of the roof headlining assembly.
INSTALL ANTENNA CORD SUB-ASSEMBLY (w/o Sliding Roof) (See INSTALLATION )
INSTALL ANTENNA CORD SUB-ASSEMBLY (w/ Sliding Roof) (See INSTALLATION )
INSTALL NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the 3 No. 2 roof silencer pads and install the silencer pads using hot-melt glue or double-sided tape as shown in the illustration.
Fig 3: Identifying No. 2 Roof Silencer Pad (W/O Sliding Roof)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the 3 No. 1 roof silencer pads and install the silencer pads using hot-melt glue or double-sided tape as shown in the illustration.
Fig 4: Identifying No. 1 Roof Silencer Pad (W/O Sliding Roof)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOF SILENCER PAD (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the 2 No. 1 roof silencer pads and install the silencer pad using hot-melt glue or double-sided tape as shown in the illustration.
Fig 5: Identifying No. 1 Roof Silencer Pad (W/ Sliding Roof)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
1. Pull the roof headlining assembly into the vehicle through the back door.
  NOTE: Do not damage the roof headlining assembly or body interior.
2. Install the 2 clips.
3. Connect the antenna cord sub-assembly connectors to the rear pillar RH.

  Fig 6: Installing Roof Headlining Assembly (W/O Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the antenna cord sub-assembly connector to the rear pillar RH with the bolt.
5. Connect the antenna cord sub-assembly connector and engage each clamp to the front pillar RH.
6. Connect the No. 1 roof wire connectors to the instrument panel junction block.
7. Engage each clamp to the front pillar LH.

  Fig 7: Locating Antenna Cord Sub-Assembly Connector (W/ EC Mirror)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: After installation, make sure that the back door weatherstrip does not interfere with the roof headlining assembly.
8. w/ EC Mirror:
  1. Connect the inner mirror connector.
INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
1. Pull the roof headlining assembly into the vehicle through the back door.
  NOTE: Do not damage the roof headlining assembly or body interior.
2. Install the 2 clips.
3. Connect the sliding roof drive gear connector.
4. Connect the antenna cord sub-assembly connectors to the rear pillar RH.

  Fig 8: Installing Roof Headlining Assembly (W/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the antenna cord sub-assembly connector to the rear pillar RH with the bolt.
6. Connect the antenna cord sub-assembly connector and engage each clamp to the front pillar RH.
7. Connect the No. 1 roof wire connectors to the instrument panel junction block.
8. Engage each clamp to the front pillar LH.

  Fig 9: Locating Antenna Cord Sub-Assembly Connector (W/ EC Mirror)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: After installation, make sure that the back door weatherstrip does not interfere with the roof headlining assembly.
9. w/ EC Mirror:
  1. Connect the inner mirror connector.
INSTALL VISOR HOLDER
1. Engage the 2 claws.
2. Push in the visor holder as shown in the illustration.
  HINT:

  Use the same procedure for the RH side and the LH side.
Fig 10: Identifying Visor Holder With Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR ASSIST GRIP ASSEMBLY
1. Assemble the rear assist grip assembly as shown in the illustration.

  Fig 11: Identifying Rear Assist Grip Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear assist grip assembly.
  HINT:

  Use the same procedure for the RH side and the LH side.
Fig 12: Identifying Rear Assist Grip Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY (w/o Curtain Shield Airbag)
1. Assemble the front assist grip sub-assembly as shown in the illustration.

  Fig 13: Identifying Front Assist Grip Sub-Assembly (W/O Curtain Shield Airbag)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front assist grip sub-assembly.
Fig 14: Identifying Front Assist Grip Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY (w/ Curtain Shield Airbag)
1. Assemble the front assist grip sub-assembly as shown in the illustration.

  Fig 15: Identifying Front Assist Grip Sub-Assembly (W/ Curtain Shield Airbag)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front assist grip sub-assembly.
  HINT:

  Use the same procedure for the RH side and the LH side.
INSTALL VISOR ASSEMBLY LH
1. Install the 2 clips to the visor assembly LH.

  Fig 16: Identifying Front Assist Grip Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 clips and install the visor assembly LH.

  Fig 17: Identifying Visor Assembly LH Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the visor bracket cover.
INSTALL VISOR ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.

Fig 18: Identifying Visor Bracket Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SUN ROOF OPENING TRIM MOULDING (W/ Sliding Roof)
1. Align the recess of the sun roof opening trim moulding with the notch of the roof headlining and install the sun roof opening trim moulding.
NOTE: After installation, check that the corners fit correctly.
INSTALL NO. 2 ROOM LIGHT ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 ROOM LIGHT ASSEMBLY (See INSTALLATION )
INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof) (See INSTALLATION )

Fig 19: Aligning Recess Of Sun Roof Opening Trim Moulding With Notch Of Roof Headlining
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof) (See INSTALLATION )
INSTALL INNER REAR VIEW MIRROR COVER (w/ EC Mirror) (See INSTALLATION )
INSTALL ROOF SIDE INNER GARNISH LH
1. Engage the 7 clips and install the roof side inner garnish LH.
NOTE: After installation, make sure that the back door weatherstrip does not interfere with the roof side inner garnish LH.

Fig 20: Identifying Roof Side Inner Garnish LH And Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL QUARTER PILLAR GARNISH LH
1. Engage the 2 claws, 3 clips and 2 guides, and install the quarter pillar garnish LH.
Fig 21: Identifying Quarter Pillar Garnish LH, Claws, Clips And Guides
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE DECK TRIM PANEL ASSEMBLY LH
1. Engage the 5 claws and 3 clips, and install the side deck trim panel assembly LH.
NOTE: After installation, make sure that the back door weatherstrip does not interfere with the side deck trim panel assembly LH.

Fig 22: Identifying Side Deck Trim Panel Assembly LH And Claws With Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR COMBINATION LIGHT SERVICE COVER LH
1. Engage the 4 claws and 2 guides, and install the rear combination light service cover LH.
Fig 23: Installing Rear Combination Light Service Cover LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
1. Engage the claw, and install the 2 No. 1 luggage compartment trim hooks.
2. Install the 2 screws.
Fig 24: Identifying No. 1 Luggage Compartment Trim Hook And Screws (LH Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)
1. for front side:
  1. Install the luggage hold belt striker assembly with the bolt.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  Fig 25: Identifying Luggage Hold Belt Striker Assembly And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for rear side:
  1. Install the luggage hold belt striker assembly with the bolt.
    Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (See INSTALLATION )

Fig 26: Identifying Luggage Hold Belt Striker Assembly And Bolt (Rear Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE GARNISH LH
1. Engage the 4 claws and clip and guide, and install the rear seat side garnish LH.
Fig 27: Identifying Rear Seat Side Garnish LH, Claws And Clip With Guide
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY (for LH Side)
1. Install the rear seatback hinge sub-assembly with the bolt.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
INSTALL ROOF SIDE INNER GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.

Fig 28: Locating Rear Seatback Hinge Sub-Assembly Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL QUARTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL SIDE DECK TRIM PANEL ASSEMBLY RH (w/o Woofer)
1. Engage the 5 claws and 3 clips, and install the side deck trim panel assembly RH.
NOTE: After installation, make sure that the back door weatherstrip does not interfere with the side deck trim panel assembly RH.

Fig 29: Identifying Side Deck Trim Panel Assembly RH, Claws And Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE DECK TRIM PANEL ASSEMBLY RH (w/ Woofer)
1. Engage the 5 claws and 3 clips, and install the side deck trim panel assembly RH.
NOTE: After installation, make sure that the back door weatherstrip does not interfere with the side deck trim panel assembly RH.

Fig 30: Identifying Side Deck Trim Panel Assembly RH Claws And Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR COMBINATION LIGHT SERVICE COVER RH (w/ Woofer)
1. Engage the 3 claws and 3 guides, and install the rear combination light service cover RH.
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)
HINT:

Use the same procedure for the RH side and the LH side.

Fig 31: Installing Rear Combination Light Service Cover RH (W/ Woofer)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH (See INSTALLATION )
INSTALL REAR SEAT SIDE GARNISH RH
1. Engage the 4 claws and clip and guide, and install the rear seat side garnish RH.
INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY (for RH Side)
HINT:

Use the same procedure for the RH side and the LH side.

Fig 32: Identifying Rear Seat Side Garnish RH, Claws, Clip And Guide
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DECK TRIM COVER
1. Engage the 2 guides and 8 claws, and install the rear deck trim cover.
Fig 33: Identifying Rear Deck Trim Cover And Claws With Guides
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE COMPARTMENT TRAY
1. Install the luggage compartment tray.
2. Install the 2 bolts.
INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR (See INSTALLATION )

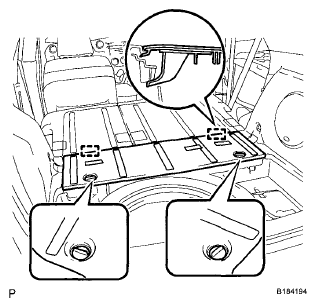

Fig 34: Identifying Luggage Compartment Tray And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK FLOOR BOX RH
1. Engage the 2 claws.
2. Install the deck floor box RH with the bolt.
Fig 35: Identifying Deck Floor Box RH With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK FLOOR BOX LH
1. Engage the 2 claws.
2. Install the deck floor box LH with the bolt.
Fig 36: Identifying Deck Floor Box LH With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL JACK ASSEMBLY
1. Install the jack assembly.
INSTALL JACK CARRIER ASSEMBLY

Fig 37: Identifying Jack Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 DECK BOARD
1. Engage the 2 guides and install the No. 2 deck board.
Fig 38: Identifying No. 2 Deck Board And Guides
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK BOARD ASSEMBLY
1. Engage the 2 guides and install the deck board assembly.
INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
INSTALL REAR SEATBACK ASSEMBLY RH (See INSTALLATION )
INSTALL REAR SEATBACK INNER HINGE COVER (for RH Side) (See INSTALLATION )
INSTALL REAR SEATBACK OUTER HINGE COVER (for RH Side) (See INSTALLATION )
CONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY (See INSTALLATION )

Fig 39: Identifying Deck Board Assembly And Guides
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
INSTALL REAR SEATBACK ASSEMBLY LH (See INSTALLATION )
INSTALL REAR SEATBACK INNER HINGE COVER (for LH Side) (See INSTALLATION )
INSTALL REAR SEATBACK OUTER HINGE COVER (for LH Side) (See INSTALLATION )
INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
INSTALL UPPER CENTER PILLAR GARNISH LH
1. Engage the clip.
2. Install the upper center pillar garnish LH with the 2 screws.
Fig 40: Identifying Upper Center Pillar Garnish LH With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER CENTER PILLAR GARNISH LH
1. Engage the 2 claws and 2 clips, and install the lower center pillar garnish LH.
CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH (See INSTALLATION )
INSTALL LAP BELT OUTER ANCHOR COVER (for Driver Side) (See INSTALLATION )

Fig 41: Identifying Lower Center Pillar Garnish LH Claws And Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
1. Align the alignment mark (orange) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip LH.
NOTE: After installation, check that the corners fit correctly.

Fig 42: Locating Rear Door Opening Trim Weatherstrip LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR SCUFF PLATE LH
1. Engage the 6 claws and install the rear door scuff plate LH.
INSTALL UPPER CENTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.
CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH (See INSTALLATION )

Fig 43: Identifying Rear Door Scuff Plate LH And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER CENTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL LAP BELT OUTER ANCHOR COVER (for Front Passenger Side) (See INSTALLATION )
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
1. Align the alignment mark (pink) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip RH.
NOTE: After installation, check that the corners fit correctly.
INSTALL REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY (See INSTALLATION )
CONNECT INSTRUMENT PANEL WIRE ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY (See INSTALLATION )

Fig 44: Locating Rear Door Opening Trim Weatherstrip RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) (See INSTALLATION )
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) (See INSTALLATION )
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY (See INSTALLATION )
INSTALL FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag)
1. Install a new clip <A> on the front pillar garnish LH.
2. Engage the 2 guides and 2 clips, then install the front pillar garnish LH.

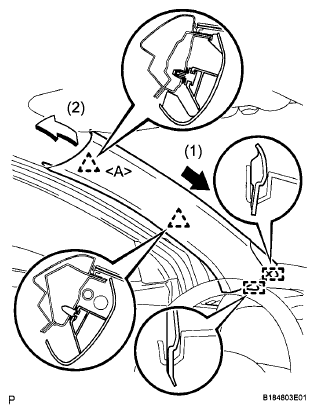

Fig 45: Identifying Front Pillar Garnish LH Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag)
1. Remove the protective cover.

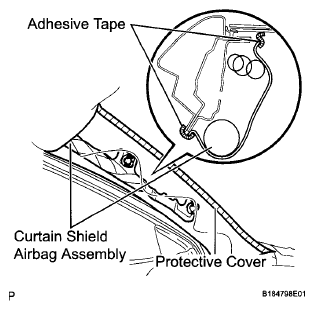

  Fig 46: Identifying Curtain Shield Airbag And Protective Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new clip <A> on the front pillar garnish LH.
3. Engage the 2 guides and 2 clips, then install the front pillar garnish LH.

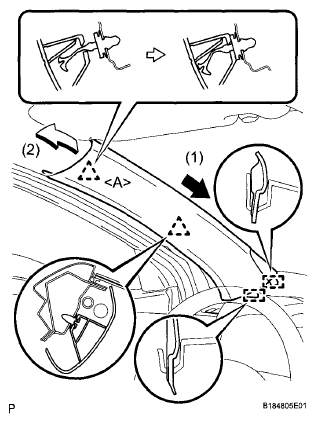

Fig 47: Identifying Front Pillar Garnish LH Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
1. Align the alignment mark (purple) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip LH.
NOTE: After installation, check that the corners fit correctly.

Fig 48: Locating Front Door Opening Trim Weatherstrip LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL SIDE TRIM BOARD LH
1. Engage the claw and clip, then install the cowl side trim board LH.
Fig 49: Identifying Cowl Side Trim Board LH Clip And Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR SCUFF PLATE LH
1. Engage the 8 claws, then install the front door scuff plate LH.
INSTALL FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)
HINT:

Use the same procedure for the RH side and the LH side.

Fig 50: Identifying Front Door Scuff Plate LH And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)
1. Remove the protective cover.

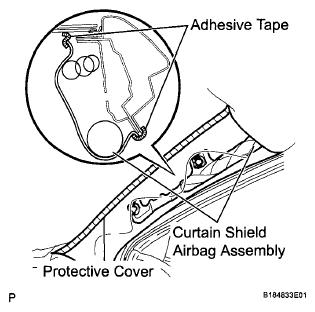

  Fig 51: Identifying Curtain Shield Airbag And Protective Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new clip <A> on the front pillar garnish RH.
3. Engage the 2 guides and 2 clips, then install the front pillar garnish RH.

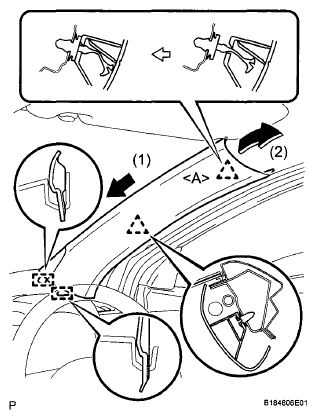

Fig 52: Identifying Front Pillar Garnish RH Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
1. Align the alignment mark (green) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip RH.
NOTE: After installation, check that the corners fit correctly.
INSTALL COWL SIDE TRIM BOARD RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL COMBINATION METER ASSEMBLY (See INSTALLATION )
INSTALL METER HOOD SUB-ASSEMBLY (See INSTALLATION )

Fig 53: Locating Front Door Opening Trim Weatherstrip RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
ADJUST SPIRAL CABLE (See INSTALLATION )
INSTALL STEERING WHEEL ASSEMBLY (See INSTALLATION )
INSTALL STEERING PAD (See INSTALLATION )
INSTALL LOWER NO. 3 STEERING WHEEL COVER (See INSTALLATION )
INSTALL LOWER NO. 2 STEERING WHEEL COVER (See INSTALLATION )
INSPECT STEERING WHEEL CENTER POINT
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD (See INSTALLATION )
INSPECT SRS WARNING LIGHT
(See DIAGNOSIS SYSTEM )
