Upper Instrument Panel: Installation

  1. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. When using a new upper instrument panel sub-assembly:
      1. Before installing the upper instrument panel sub-assembly, immediately twist and cut off the portions shown in the illustration (joints for moulding).
      Fig 1: Positioning Upper Instrument Panel Sub-Assembly
      G06037845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 claws.
      Fig 2: Identifying Instrument Panel Box Door Claws
      G06037846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not allow the wire harness to get caught in the claws.
    3. Engage the 5 claws and the 2 guides.
      Fig 3: Identifying Instrument Panel Box Door Claws And Guides
      G06037847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the bolt <C>.
    5. Install the passenger airbag bolt <A>.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    6. Connect the connector and install the upper instrument panel sub-assembly.
    Fig 4: Locating Passenger Airbag Bolt
    G06037848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  3. INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY
    1. Engage the 6 claws and install the No. 1 instrument panel box door sub-assembly.
    Fig 5: Identifying No. 1 Instrument Panel Box Door Sub-Assembly Claws
    G06037849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Insert the glove compartment door assembly horizontally and engage the 2 hinges.
      NOTE: Engaging the hinges from the top will deform the hinges. Be sure to install the glove compartment door assembly horizontally.
      Fig 6: Installing Glove Compartment Door Assembly
      G06037850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Bend portions (A) and (B) in the direction indicated by the arrows in the illustration to engage the 2 stoppers.
    3. Engage the claw, connect the glove compartment door stopper, and install the glove compartment door assembly.

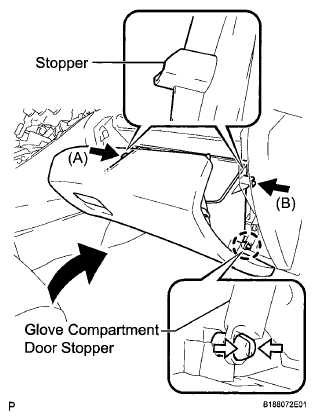

    Fig 7: Locating Glove Compartment Door Stopper
    G06037851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)
    1. Engage the 9 claws and install the center instrument cluster finish panel assembly.
  6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)
    1. Connect the connector.
      Fig 8: Identifying Center Instrument Cluster Finish Panel Assembly Claws (Manual Transaxle)
      G06037852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 9 claws and install the center instrument cluster finish panel assembly.
    Fig 9: Identifying Center Instrument Cluster Finish Panel Assembly Claws (Automatic Transaxle)
    G06037853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
    1. Turn the shift lever knob clockwise and install the shift lever knob sub-assembly.
    Fig 10: Identifying Shift Lever Knob Turn Position (Manual Transaxle)
    G06037854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
    1. Turn the shift lever knob clockwise and install the shift lever knob sub-assembly.
  9. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
    1. Connect each connector.
      Fig 11: Identifying Shift Lever Knob Turn Position (Automatic Transaxle)
      G06037855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 7 claws and install the lower instrument panel finish panel assembly.
  10. INSTALL FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag) (See  INSTALLATION  )
  11. INSTALL FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag) (See  INSTALLATION  )
  12. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH (See  INSTALLATION  )
  13. INSTALL FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the RH side and LH side.

  14. INSTALL FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag) (See  INSTALLATION  )
    Fig 12: Identifying Lower Instrument Panel Finish Panel Assembly Claws
    G06037856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side.

  16. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  17. INSTALL METER HOOD SUB-ASSEMBLY  (See INSTALLATION )
  18. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Engage the 5 claws and install the instrument cluster finish panel sub-assembly.
    Fig 13: Identifying Instrument Cluster Finish Panel Sub-Assembly Claws
    G06037857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Engage the claw as shown in the illustration.
    2. Connect each connector.
      Fig 14: Installing Center Instrument Cluster Finish Panel Sub-Assembly
      G06037858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 14 claws and 2 guides to install the center instrument cluster finish panel sub-assembly.
      Fig 15: Identifying Center Instrument Cluster Finish Panel Sub-Assembly And Claws
      G06037859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  21. ADJUST SPIRAL CABLE  (See INSTALLATION )
  22. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  23. INSTALL STEERING PAD  (See INSTALLATION )
  24. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  25. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  26. INSPECT STEERING WHEEL CENTER POINT
  27. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  28. INSPECT STEERING PAD  (See INSTALLATION )
  29. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
