Lower Instrument Panel: Installation

  1. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. When using a new lower instrument panel sub-assembly:
      1. Before installing the lower instrument panel sub-assembly, immediately twist and cut off the portions shown in the illustration (joints for moulding).
      Fig 1: Identifying Lower Instrument Panel Sub-Assembly
      G06037890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    3. Install the screw <B>.
    4. Install the 11 bolts <C>.
    5. Install the 2 bolts <D>.

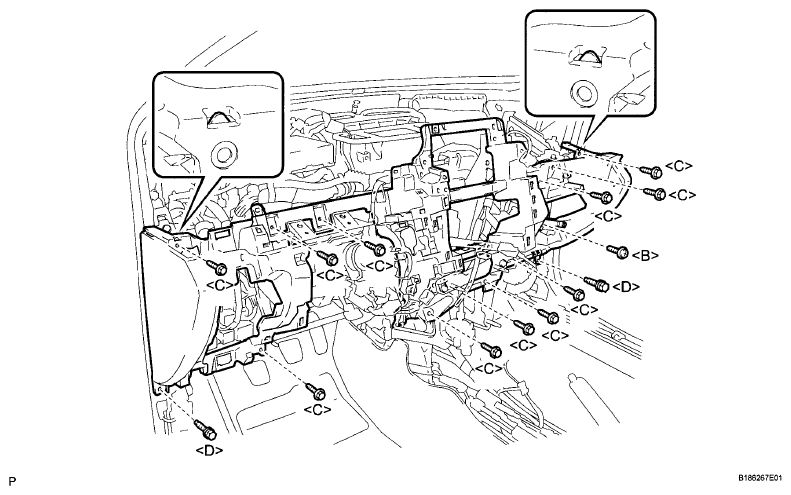

      Fig 2: Identifying Lower Instrument Panel Sub-Assembly And Bolts
      G06037891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Engage each clamp.
    7. Install the lower instrument panel sub-assembly with the 3 screws <E>.

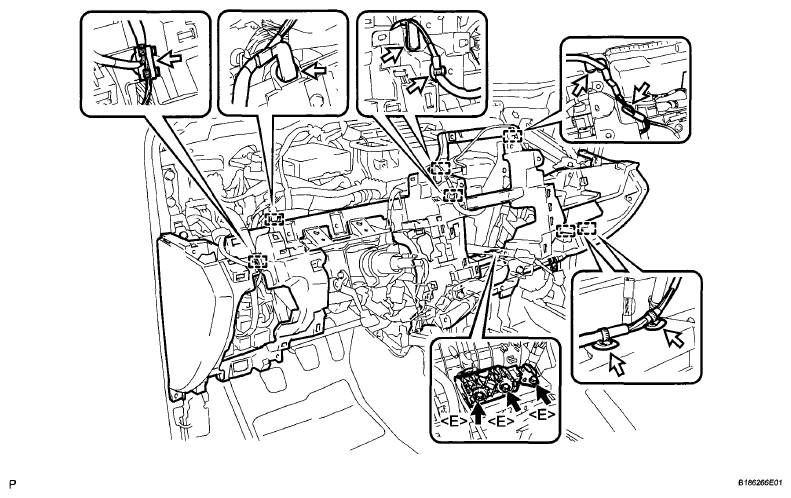

      Fig 3: Identifying Lower Instrument Panel Sub-Assembly With Screws
      G06037892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Engage the 3 claws and install the hood lock control cable assembly.

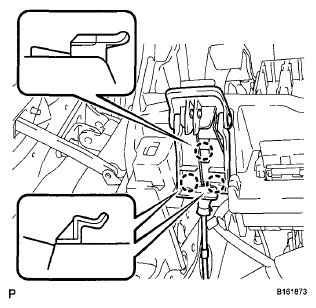

      Fig 4: Identifying Hood Lock Control Cable Assembly And Claws
      G06037893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Engage the 2 claws and install the DLC3.
  2. INSTALL RADIO WIRE SUB-ASSEMBLY  (See INSTALLATION )
  3. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL UPPER STEERING COLUMN COVER  (See INSTALLATION )
  5. INSTALL LOWER STEERING COLUMN COVER  (See INSTALLATION )
    Fig 5: Identifying DLC3 And Claws
    G06037894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT SHIFT LEVER ASSEMBLY (for Manual Transaxle)

    for C59: (See INSTALLATION )

    for E351: (See REMOVAL )

  7. CONNECT SHIFT LEVER ASSEMBLY (for Automatic Transaxle)

    for U341F: (See INSTALLATION )

    for U250E: (See INSTALLATION )

    for U140E: (See INSTALLATION )

  8. INSTALL COWL SIDE TRIM BOARD LH (See  INSTALLATION  )
  9. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  10. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)
    1. Engage the guide.
    2. Engage the 3 claws and install the No. 2 instrument panel under cover sub-assembly.
  11. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure for the RH side and LH side.

  12. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side.

    Fig 6: Identifying No. 2 Instrument Panel Under Cover Sub-Assembly And Claws With Guides
    G06037895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Engage the 3 claws and 2 guides.

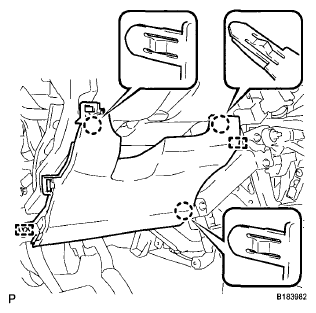

      Fig 7: Identifying Lower Instrument Panel Finish Panel Sub-Assembly And Claws With Guides
      G06037896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the lower instrument panel finish panel sub-assembly with the 2 screws <B>.
    Fig 8: Identifying Lower Instrument Panel Finish Panel Sub-Assembly And Screws
    G06037897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 1 SWITCH HOLE BASE
    1. Engage the 4 claws and install the No. 1 switch hole base.
    Fig 9: Identifying No. 1 Switch Hole Base And Claws
    G06037898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)
    1. Engage the 6 claws.
    2. Install the lower center instrument panel finish panel with the 2 clips.

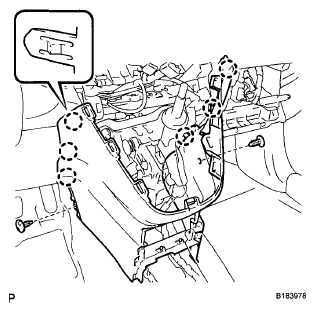

    Fig 10: Identifying Lower Center Instrument Panel Finish Panel And Claws (Manual Transaxle)
    G06037878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle)
    1. Engage the 6 claws.
    2. Install the lower center instrument panel finish panel with the screw <B> and 2 clips.

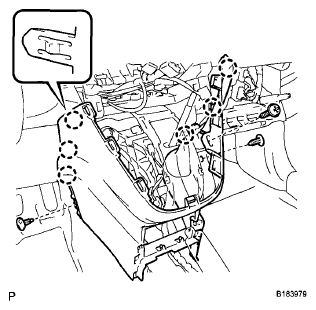

    Fig 11: Identifying Lower Center Instrument Panel Finish Panel And Claws (Automatic Transaxle)
    G06037879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT NO. 1 CONSOLE BOX INSERT
    1. Engage the 3 claws and guide to install the front No. 1 console box insert.
    Fig 12: Identifying Front No. 1 Console Box Insert And Claws
    G06037876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT NO. 2 CONSOLE BOX INSERT
    1. Engage the 3 claws and guide to install the front No. 2 console box insert.
  19. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 2WD) (See  INSTALLATION  )
  20. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 4WD) (See  INSTALLATION  )
    Fig 13: Identifying Front No. 2 Console Box Insert And Claws
    G06037877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL CONSOLE BOX CARPET
  22. INSTALL NO. 2 SWITCH HOLE BASE
    1. Connect each connector.
    2. Engage the 6 claws and install the No. 2 switch hole base.
    Fig 14: Identifying No. 2 Switch Hole Base And Claws
    G06037875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL FRONT UPPER CONSOLE BOX
    1. Engage the 8 claws and install the front upper console box.
      Fig 15: Identifying Front Upper Console Box And Claws
      G06037874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL AIR CONDITIONING PANEL ASSEMBLY  (See INSTALLATION )
  25. INSTALL NAVIGATION ANTENNA CORD SUB-ASSEMBLY (w/ Navigation System)  (See REMOVAL )
  26. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)  (See INSTALLATION )
  27. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)  (See INSTALLATION )
  28. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  29. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  30. INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY (See  INSTALLATION  )
  31. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
  32. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) (See  INSTALLATION  )
  33. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) (See  INSTALLATION  )
  34. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (See  INSTALLATION  )
  35. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) (See  INSTALLATION  )
  36. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY (See  INSTALLATION  )
  37. INSTALL FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag) (See  INSTALLATION  )
  38. INSTALL FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag) (See  INSTALLATION  )
  39. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH (See  INSTALLATION  )
  40. INSTALL FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the RH side and LH side.

  41. INSTALL FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag) (See  INSTALLATION  )
  42. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side.

  43. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  44. INSTALL METER HOOD SUB-ASSEMBLY  (See INSTALLATION )
  45. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  46. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  47. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  48. ADJUST SPIRAL CABLE  (See INSTALLATION )
  49. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  50. INSTALL STEERING PAD  (See INSTALLATION )
  51. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  52. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  53. INSPECT STEERING WHEEL CENTER POINT
  54. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  55. INSPECT STEERING PAD  (See INSTALLATION )
  56. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
