Air Conditioning Panel: Installation

INSTALL AIR CONDITIONING PANEL ASSEMBLY
1. Engage the 2 claws and the air mix damper control cable sub-assembly.

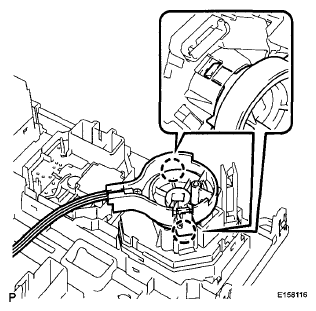

  Fig 1: Identifying Air Mix Damper Control Cable Sub-Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws and the No. 2 heater control cable sub-assembly.
3. Connect each connector.

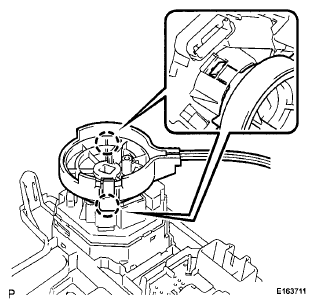

  Fig 2: Identifying No. 2 Heater Control Cable Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 6 claws to install the air conditioning panel assembly.

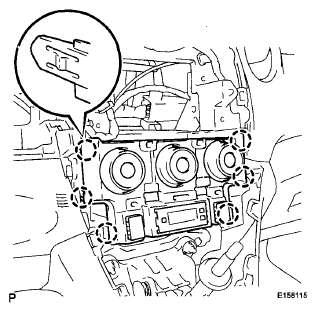

  Fig 3: Identifying Air Conditioning Panel Assembly Claws And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) (See INSTALLATION )
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) (See INSTALLATION )
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
