Throttle Body: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE WINDSHIELD WIPER MOTOR AND LINK
HINT:

See the steps from "Remove front wiper arm and blade assembly LH" through "Remove windshield wiper motor and link" (See REMOVAL ).
SEPARATE EJECTOR TUBE (See REMOVAL )
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY (See REMOVAL )
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE NO. 1 ENGINE UNDER COVER
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE NO. 1 VACUUM SWITCHING VALVE (See REMOVAL )
REMOVE AIR CLEANER CAP SUB-ASSEMBLY
1. Disconnect the mass air flow meter connector and separate the hose from hose clamp.

  Fig 1: Locating Mass Air Flow Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ventilation hose from the cylinder head cover.
3. Disconnect the hose from the air cleaner cap sub-assembly and the hose clamp.

  Fig 2: Locating Air Cleaner Cap Sub-Assembly And Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the 2 vacuum hoses from the air cleaner cap sub-assembly.
5. Separate the 2 vacuum hoses from the 2 hose clamps.

  Fig 3: Locating Vacuum Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

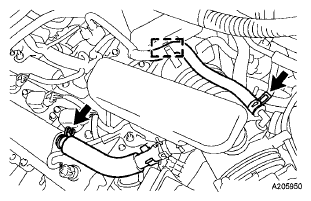

6. Unlock the hose band and separate the air cleaner cap sub-assembly from the throttle body assembly.

  Fig 4: Locating Hose Band
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

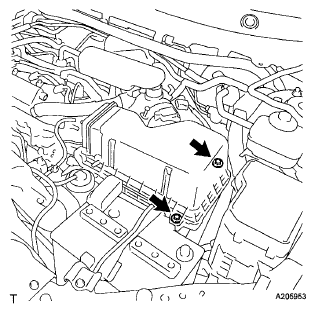

7. Remove the 2 bolts and air cleaner cap sub-assembly.

  Fig 5: Locating Bolts And Air Cleaner Cap Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE BODY ASSEMBLY
1. Disconnect the throttle body assembly connector.
2. Disconnect the fuel tube from the clamp.

  Fig 6: Locating Throttle Body Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 2 water by-pass hoses from the throttle body assembly.

  Fig 7: Locating Water By-Pass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 4 bolts and the throttle body assembly with the fuel tube bracket.

  Fig 8: Locating Bolts And Throttle Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt and fuel tube bracket.

  Fig 9: Locating Bolt And Fuel Tube Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the gasket from the intake manifold.

  Fig 10: Locating Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
