Front Wiper Motor: Removal

  1. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
    1. Remove the nut, and the front wiper arm and blade assembly LH.
      Fig 1: Identifying Front Wiper Arm And Blade Assembly LH And Nut
      G05419952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
    1. Remove the nut, and the front wiper arm and blade assembly RH.
      Fig 2: Identifying Front Wiper Arm And Blade Assembly RH And Nut
      G05419953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HOOD TO COWL TOP SEAL
    1. Disengage the 8 clips and remove the hood to cowl top seal.
      Fig 3: Identifying Hood And Clips
      G05419954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
    1. Disengage the 2 claws and disconnect the front fender to cowl side seal LH.
      Fig 4: Identifying Front Fender LH Claws
      G05419955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and disconnect the front fender to cowl side seal RH.
    3. Remove the 2 clips.
      Fig 5: Identifying Front Fender RH Claws
      G05419956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

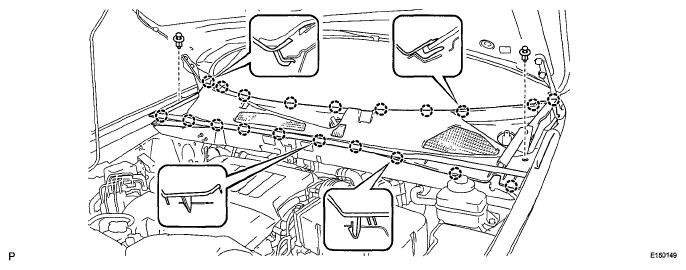

      Fig 6: Identifying Cowl Top Ventilator Louver Sub-Assembly Claws
      G05419957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 20 claws and remove the cowl top ventilator louver sub-assembly.
  5. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 4 bolts, and the windshield wiper motor and link assembly.
      Fig 7: Identifying Windshield Wiper Motor Bolts And Link Assembly
      G05419958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY
    1. Using a screwdriver with the tip wrapped with protective tape, disconnect the rod of the windshield wiper link assembly from the crank arm pivot of the windshield wiper motor assembly as shown in the illustration.
      Fig 8: Locating Windshield Wiper Motor Assembly
      G05419959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place matchmarks on the windshield wiper link assembly and crank arm assembly.
    3. Remove the nut and the crank arm assembly.
      Fig 9: Identifying Matchmarks On Windshield Wiper Link Assembly And Crank Arm Assembly
      G05419960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the clamp.
    5. Remove the 3 bolts and the windshield wiper motor assembly.
      Fig 10: Identifying Windshield Wiper Motor Assembly And Bolts
      G05419961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
