Exhaust Pipe And Catalytic Converter: Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL EXHAUST PIPE ASSEMBLY TAIL
    1. Install the 2 No. 4 exhaust pipe supports and the exhaust tail pipe assembly (for Hatchback).

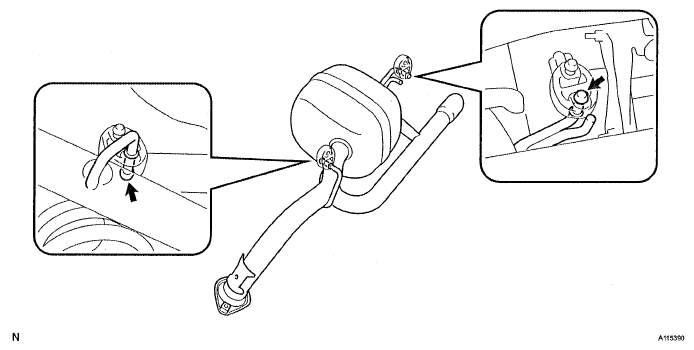

      Fig 1: Locating Exhaust Tail Pipe Assembly Supports No. 4 (Hatchback)
      G04829178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 No. 4 exhaust pipe supports and the exhaust tail pipe assembly (for Sedan).

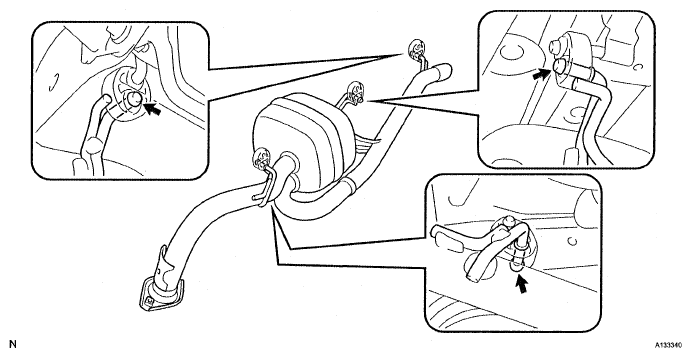

      Fig 2: Locating Exhaust Tail Pipe Assembly Supports No. 4 (Sedan)
      G04829179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the No. 4 exhaust pipe supports.
      NOTE: Install No. 4 exhaust pipe support onto the pipe retaining support.
      Fig 3: Identifying No. 4 Exhaust Pipe Supports
      G04829182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL EXHAUST PIPE ASSEMBLY FRONT
    1. Using vernier calipers, measure the free length of the compression spring.

      Minimum length (Front Side): 40.5 mm (1.594 in.)

      Minimum length (Rear Side): 38.5 mm (1.516 in.)

      If the length is not as specified, replace the compression spring.

      Fig 4: Measuring Free Length Of Compression Spring Using Vernier Calipers
      G04828691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a plastic hammer and a wooden block, tap in a new exhaust pipe gasket until its surface is flush with the exhaust manifold.
      NOTE:
      • Install the exhaust pipe gasket in the correct direction.
      • Do not damage the outer surface of the exhaust pipe gasket.
      • Do not reuse the exhaust pipe gasket.
      • Do not push in the gasket with the exhaust pipe when connecting it.
    3. Install the 3 No. 4 exhaust pipe supports.
    4. Install the exhaust front pipe assembly and a new exhaust pipe gasket with the 4 compression springs and 4 bolts.

      Torque: 43 N*m (439 kgf*cm, 32 ft.*lbf)

      Fig 5: Identifying Wooden Block & Gasket
      G04828692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

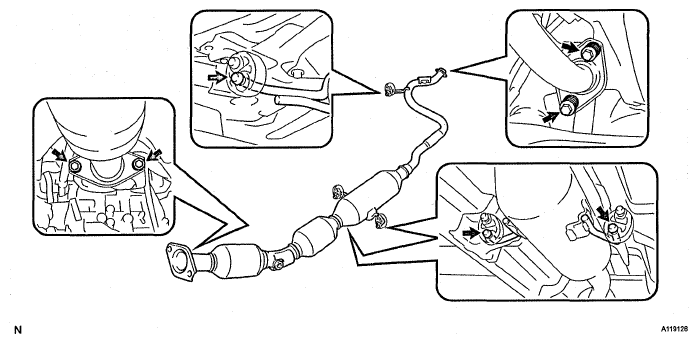

      Fig 6: Locating Front Exhaust Pipe Assembly Support No. 4
      G04829177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check the No. 4 exhaust pipe supports.
      NOTE: Install No. 4 exhaust pipe support onto the pipe retaining support.
  3. INSTALL HEATED OXYGEN SENSOR (See  INSTALLATION  )
  4. INSTALL INSTRUMENT PAD LOWER LH (for Sedan) (See  INSTALLATION  )
  5. INSTALL REAR CONSOLE BOX ASSEMBLY (SEE  INSTALLATION  )
  6. INSTALL CONSOLE BOX CARPET (SEE  INSTALLATION  )
  7. INSTALL CONSOLE BOX REAR COVER (for Hatchback) (See  INSTALLATION  )
  8. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Sedan) (See  INSTALLATION  )
  9. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Hatchback Manual Transaxle) (See  INSTALLATION  )
  10. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) (See  INSTALLATION  )
  11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
  12. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (for Sedan) (See  INSTALLATION  )
  13. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (for Sedan) (See  INSTALLATION  )
    Fig 7: Identifying No. 4 Exhaust Pipe Supports
    G04829182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  15. CHECK FOR EXHAUST GAS LEAKAGE
