CURTAIN SHIELD AIRBAG ASSEMBLY (for 3 Door): Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing (See AIRBAG SYSTEM  ).
NOTE: Always use "Torx" socket wrench E10 when removing the rear seat.

HINT:

The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY  (See REMOVAL )
  3. REMOVE DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  4. REMOVE DECK FLOOR BOX RH  (See REMOVAL )
  5. REMOVE DECK FLOOR BOX LH  (See REMOVAL )
  6. REMOVE NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type)  (See REMOVAL )
  7. REMOVE NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type)  (See REMOVAL )
  8. REMOVE REAR SEAT ASSEMBLY RH (for 60/40 Split Seat Type)  (See REMOVAL )
  9. REMOVE REAR SEAT ASSEMBLY LH (for 60/40 Split Seat Type)  (See REMOVAL )
  10. REMOVE REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type)  (See REMOVAL )
  11. REMOVE REAR SEATBACK ASSEMBLY (for Hold Down Seat Type)  REMOVAL
  12. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  13. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  14. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH  (See REMOVAL )
  15. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH  (See REMOVAL )
  16. REMOVE COWL SIDE TRIM BOARD RH  (See REMOVAL )
  17. REMOVE COWL SIDE TRIM BOARD LH  (See REMOVAL )
  18. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  19. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  20. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH  (See REMOVAL )
  21. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH  (See REMOVAL )
  22. REMOVE REAR DECK TRIM COVER  (See REMOVAL )
  23. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  24. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  25. REMOVE DECK SIDE TRIM PANEL ASSEMBLY RH  (See REMOVAL )
  26. REMOVE DECK SIDE TRIM PANEL ASSEMBLY LH  (See REMOVAL )
  27. REMOVE SEAT BELT ANCHOR COVER CAP  (See REMOVAL )
  28. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  29. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  30. REMOVE CENTER PILLAR UPPER GARNISH RH  (See REMOVAL )
  31. REMOVE CENTER PILLAR UPPER GARNISH LH  (See REMOVAL )
  32. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY  (See REMOVAL )
  33. REMOVE ROOF SIDE INNER GARNISH RH  (See REMOVAL )
  34. REMOVE ROOF SIDE INNER GARNISH LH  (See REMOVAL )
  35. REMOVE REAR ROOF SIDE RAIL GARNISH RH  (See REMOVAL )
  36. REMOVE REAR ROOF SIDE RAIL GARNISH LH  (See REMOVAL )
  37. REMOVE SEAT BELT ANCHOR COVER  (See REMOVAL )
  38. REMOVE ASSIST GRIP COVER  (See REMOVAL )
  39. REMOVE ASSIST GRIP SUB-ASSEMBLY  (See REMOVAL )
  40. REMOVE VISOR ASSEMBLY RH  (See REMOVAL )
  41. REMOVE VISOR ASSEMBLY LH  (See REMOVAL )
  42. REMOVE VISOR HOLDER RH  (See REMOVAL )
  43. REMOVE VISOR HOLDER LH  (See REMOVAL )
  44. REMOVE ROOM LIGHT ASSEMBLY  (See REMOVAL )
  45. REMOVE MAP LIGHT ASSEMBLY  (See REMOVAL )
  46. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  47. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  48. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  (See REMOVAL )
  49. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  (See REMOVAL )
  50. REMOVE INSTRUMENT CLUSTER FINISH PANEL  (See REMOVAL )
  51. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  52. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  53. REMOVE NO. 1 SWITCH HOLE BASE  (See REMOVAL )
  54. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See REMOVAL )
  55. REMOVE INSTRUMENT PANEL BOX  (See REMOVAL )
  56. REMOVE ROOF HEADLINING ASSEMBLY  (See REMOVAL )
  57. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH
    1. Using a thin-bladed screwdriver, release the locking button.
    2. Using a thin-bladed screwdriver, detach the airbag connector.
    3. Loosen the 2 bolts.
    4. Disengage the 2 hooks.
    5. Remove the 2 bolts and 4 screws.
    6. Using a screwdriver, disengage the 4 clips and remove the curtain airbag.
      Fig 1: Detaching Airbag Connector
      G04830353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

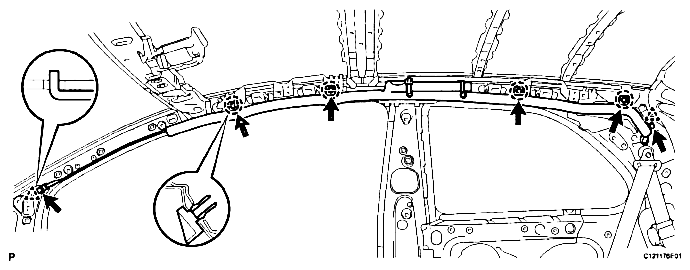

      Fig 2: Locating Clips And Curtain Airbag
      G04830390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE CURTAIN SHIELD AIRBAG BRACKET RH
    1. Remove the bolt, disengage the 2 hooks and remove the curtain shield airbag bracket.
      Fig 3: Locating Curtain Shield Airbag Bracket
      G04830391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE ROOF SIDE RAIL BRACKET RH
    1. Remove the wire harness clamp.
    2. Remove the bolt, disengage the 2 hooks and remove the roof side rail bracket.
      Fig 4: Locating Roof Side Rail Bracket
      G04830392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
