ROOF HEADLINING (for Hatchback 3 Door): Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing (see PRECAUTION ).
NOTE: Always use "Tone" socket wrench E10 when removing the rear seat.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.
  2. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (See  REMOVAL   )
  3. REMOVE DECK BOARD SUB-ASSEMBLY (See  REMOVAL   )
  4. REMOVE DECK FLOOR BOX RH (See  REMOVAL   )
  5. REMOVE DECK FLOOR BOX LH (See  REMOVAL   )
  6. REMOVE NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type)
    1. for RH Side:
      1. Remove the No. 1 rear seat leg cover (See REMOVAL ).
    2. for LH Side:
      1. Remove the No. 1 rear seat leg cover (See REMOVAL ).
  7. REMOVE NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type) (See  REMOVAL  )
  8. REMOVE REAR SEAT ASSEMBLY RH (for 60/40 Split Seat Type) (See  REMOVAL  )
  9. REMOVE REAR SEAT ASSEMBLY LH (for 60/40 Split Seat Type) (See  REMOVAL  )
  10. REMOVE REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type) (See  REMOVAL  )
  11. REMOVE REAR SEATBACK ASSEMBLY (for Hold Down Seat Type) (See  REMOVAL  )
  12. REMOVE FRONT DOOR SCUFF PLATE RH
    1. Disengage the 8 claws and remove the front door scuff plate.
  13. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

  14. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (See  REMOVAL   )
  15. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH (See  REMOVAL   )
  16. REMOVE COWL SIDE TRIM BOARD RH (See  REMOVAL   )
  17. REMOVE COWL SIDE TRIM BOARD LH (See  REMOVAL   )
    Fig 1: Identifying Front Door Scuff Plate Claws
    G04835592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Remove the front door opening trim weatherstrip.
  19. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Use the same procedure as for the RH side.

    Fig 2: Identifying Front Door Opening Trim Weatherstrip
    G04835593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
    1. Remove the belt of the rear seat outer belt from the rear seat shoulder belt hanger.
      Fig 3: Locating Rear Seat Shoulder Belt Hanger
      G04835594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 8 clips, the retainer and the 10 claws and remove the front quarter trim panel.
  21. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  22. REMOVE REAR DECK TRIM COVER (See  REMOVAL   )
    Fig 4: Identifying Front Quarter Trim Panel Clips, Claws & Retainer
    G04835595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH
    1. Remove the bolt.
    2. Disengage the clip and remove the anchor plate.
  24. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

    Fig 5: Identifying Anchor Plate Clip
    G04835596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the 3 screws.
    2. Disengage the 3 clips and the 3 claws and remove the deck trim side panel.
      Fig 6: Locating Deck Trim Side Panel Assembly Clips, Claws & Screws
      G04835597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the 3 screws.
    2. Disengage the 3 clips and 3 claws.
    3. Disconnect the deck side room light connector and remove the deck trim side panel.
      Fig 7: Identifying Deck Side Room Light Connector Clips & Claws
      G04835598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE SEAT BELT ANCHOR COVER CAP

    HINT:

    Use the same procedure for both sides.

    1. Disengage the 3 claws and remove the seat belt anchor cover cap.
      Fig 8: Identifying Seat Belt Anchor Cover Cap Claws
      G04835599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH
    1. Remove the bolt and the through anchor.
  29. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

    Fig 9: Identifying Anchor Bolt
    G04835600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE CENTER PILLAR UPPER GARNISH RH
    1. Disengage the 2 clips and remove the center pillar upper garnish.
  31. REMOVE CENTER PILLAR UPPER GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  32. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (See  REMOVAL   )
    Fig 10: Identifying Center Pillar Upper Garnish Clips
    G04835601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE ROOF SIDE INNER GARNISH RH
    1. w/ Curtain Shield Airbag:
      NOTE: Replace the special clip with a new one when the roof side inner garnish is removed.
      1. Disengage the 4 clips and the claw.
      2. Pass the rear seat outer belt and the rear center seat outer belt through the slit in the roof side inner garnish and remove the roof side inner garnish.
        Fig 11: Identifying Roof Side Inner Garnish RH Clips & Claws - With Curtain Shield Airbag
        G04835602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Curtain Shield Airbag:
      1. Disengage the 4 clips and the claw.
      2. Pass the rear seat outer belt and the rear center seat outer belt through the slit in the roof side inner garnish and remove the roof side inner garnish.
        Fig 12: Identifying Roof Side Inner Garnish RH Clips & Claws - Without Curtain Shield Airbag
        G04835603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE ROOF SIDE INNER GARNISH LH
    1. w/ Curtain Shield Airbag:
      NOTE: Replace the special clip with a new one when the roof side inner garnish is removed.
      1. Disengage the 4 clips and the claw.
      2. Pass the rear seat outer belt through the slit in the roof side inner garnish and remove the roof side inner garnish.
        Fig 13: Identifying Roof Side Inner Garnish LH Clips & Claws - With Curtain Shield Airbag
        G04835604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Curtain Shield Airbag:
      1. Disengage the 4 clips and the claw.
      2. Pass the rear seat outer belt through the slit in the roof side inner garnish and remove the roof side inner garnish.
        Fig 14: Identifying Roof Side Inner Garnish LH Clips & Claws - Without Curtain Shield Airbag
        G04835605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR ROOF SIDE RAIL GARNISH RH
    1. Disengage the 4 clips and remove the rear roof side rail garnish.
  36. REMOVE REAR ROOF SIDE RAIL GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  37. REMOVE SEAT BELT ANCHOR COVER (See  REMOVAL  )
  38. REMOVE ROOF HEADLINING SERVICE HOLE COVER (w/o Curtain Shield Airbag) (See  REMOVAL   )
    Fig 15: Identifying Rear Roof Side Rail Garnish Clips
    G04835606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE ASSIST GRIP COVER (See  REMOVAL   )
  40. REMOVE ASSIST GRIP SUB-ASSEMBLY (See  REMOVAL   )
  41. REMOVE VISOR ASSEMBLY RH (See  REMOVAL   )
  42. REMOVE VISOR ASSEMBLY LH (See  REMOVAL   )
  43. REMOVE VISOR HOLDER RH (See  REMOVAL   )
  44. REMOVE VISOR HOLDER LH (See  REMOVAL   )
  45. REMOVE ROOM LIGHT ASSEMBLY (See  REMOVAL   )
  46. REMOVE MAP LIGHT ASSEMBLY (See  REMOVAL   )
  47. REMOVE FRONT PILLAR GARNISH RH (See  REMOVAL   )
  48. REMOVE FRONT PILLAR GARNISH LH (See  REMOVAL   )
  49. REMOVE INSTRUMENT PANEL FINISH PANEL END RH (See  REMOVAL  )
  50. REMOVE INSTRUMENT PANEL FINISH PANEL END LH (See  REMOVAL  )
  51. REMOVE INSTRUMENT CLUSTER FINISH PANEL (See  REMOVAL  )
  52. REMOVE COMBINATION METER ASSEMBLY (See  REMOVAL  )
  53. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  54. REMOVE NO. 1 SWITCH HOLE BASE (See  REMOVAL  )
  55. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY (See  REMOVAL  )
  56. REMOVE INSTRUMENT PANEL BOX (See  REMOVAL  )
  57. REMOVE ROOF HEADLINING ASSEMBLY
    1. Using a screwdriver, remove the wiring harness clamp.
    2. Disconnect the connector.
      Fig 16: Locating Wiring Harness Clamp
      G04835501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the antenna cord from the antenna cord clamp.
      Fig 17: Removing Antenna Cord From Antenna Cord Clamp
      G04835502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 2 connectors.
    5. Using a clip remover, remove the 2 connectors.
    6. w/ Curtain Shield Airbag:
      1. Using a clip remover, remove the clip.
      2. Disengage the 4 hooks.
        Fig 18: Identifying Hooks & Clips - With Curtain Shield Airbag
        G04835609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. w/o Curtain Shield Airbag:
      1. Using a clip remover, remove the clip.
      2. Disengage the 2 claws and the 4 hooks.
        Fig 19: Identifying Clip, Claws & Hooks - Without Curtain Shield Airbag
        G04835610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the roof headlining from the back door.
      Fig 20: Removing Roof Headlining From Back Door
      G04835611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE NO. 5 ROOF SILENCER PAD

    HINT:

    Only remove the No. 5 roof silencer pad when the No. 1 roof wire and the roof headlining are replaced.

    1. Remove the 2 No. 5 roof silencer pads.
      Fig 21: Locating No. 5 Roof Silencer Pad
      G04835612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE NO. 1 ROOF SILENCER PAD

    HINT:

    Only remove the No. 1 roof silencer pad when the No. 1 roof wire and the roof headlining are replaced.

    1. w/ Curtain Shield Airbag:
      1. Remove the 4 No. 1 roof silencer pads.

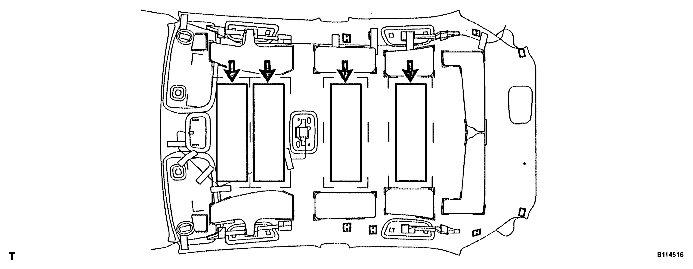

        Fig 22: Locating 4 No. 1 Roof Silencer Pads - With Curtain Shield Airbag
        G04835613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Curtain Shield Airbag:
      1. Remove the 4 No. 1 roof silencer pads.

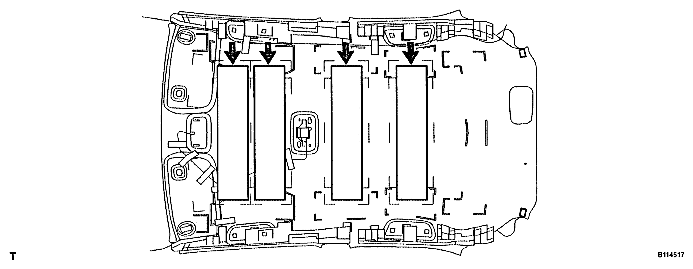

        Fig 23: Locating 4 No. 1 Roof Silencer Pads - Without Curtain Shield Airbag
        G04835614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE REAR ROOF SILENCER PAD

    HINT:

    Only remove the rear roof silencer pad when the roof headlining is replaced.

    1. Remove the 2 rear roof silencer pads.
      Fig 24: Identifying Rear Roof Silencer Pads
      G04835615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. REMOVE NO. 2 ROOF HEADLINING PAD RH (w/ Curtain Shield Airbag)

    HINT:

    Only remove the No. 2 roof headlining pad when the roof headlining is replaced.

    1. Remove the No. 2 roof headlining pad.
  62. REMOVE NO. 2 ROOF HEADLINING PAD LH (w/ Curtain Shield Airbag)

    HINT:

    Use the same procedure as for the RH side.

    Fig 25: Locating No. 2 Roof Headlining Pad
    G04835616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. REMOVE NO. 3 ROOF HEADLINING PAD RH (w/ Curtain Shield Airbag)

    HINT:

    Only remove the No. 3 roof headlining pad when the roof headlining is replaced.

    1. Remove the No. 3 roof headlining pad.
    Fig 26: Locating No. 3 Roof Headlining Pad
    G04835617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. REMOVE NO. 3 ROOF HEADLINING PAD LH (w/ Curtain Shield Airbag)

    HINT:

    Use the same procedure as for the RH side.

  65. REMOVE NO. 4 ROOF HEADLINING PAD RH (w/ Curtain Shield Airbag)

    HINT:

    Only remove the No. 4 roof headlining pad when the roof headlining is replaced.

    1. Remove the No. 4 roof headlining pad.
  66. REMOVE NO. 4 ROOF HEADLINING PAD LH (w/ Curtain Shield Airbag)

    HINT:

    Use the same procedure as for the RH side.

    Fig 27: Locating No. 4 Roof Headlining Pad
    G04835618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE NO. 1 ROOF HEADLINING PAD RH (w/ Curtain Shield Airbag)

    HINT:

    Only remove the No. 1 roof headlining pad when the roof headlining is replaced.

    1. Remove the No. 1 roof headlining pad.
  68. REMOVE NO. 1 ROOF HEADLINING PAD LH (w/ Curtain Shield Airbag)

    HINT:

    Use the same procedure as for the RH side.

    Fig 28: Locating No. 1 Roof Headlining Pad
    G04835619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE NO. 5 ROOF HEADLINING PAD RH (w/ Curtain Shield Airbag)

    HINT:

    Only remove the No. 5 roof headlining pad when the roof headlining is replaced.

    1. Remove the No. 5 roof headlining pad.
  70. REMOVE NO. 5 ROOF HEADLINING PAD LH (w/ Curtain Shield Airbag)

    HINT:

    Use the same procedure as for the RH side.

    Fig 29: Locating No. 5 Roof Headlining Pad
    G04835620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  71. REMOVE NO. 1 ROOF WIRE

    HINT:

    Only remove the No. 1 roof wire when the roof headlining is replaced.

    1. w/ Curtain Shield Airbag:
      1. Remove the 7 pieces of tape.
        Fig 30: Identifying Tape Pieces Location - With Curtain Shield Airbag
        G04835621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the No. 1 roof wire from the claw of the side rail spacer.
    2. w/o Curtain Shield Airbag:
      1. Remove the 6 pieces of tape.
      2. Remove the No. 1 roof wire from the 2 claws of the side rail spacer.
        3. Fig 31: Identifying Tape Pieces Location - Without Curtain Shield Airbag
        G04835622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE ANTENNA CORD SUB-ASSEMBLY

    HINT:

    Only remove the antenna cord when the roof headlining is replaced.

    1. w/ Curtain Shield Airbag:
      1. Remove the 6 pieces of tape.
      2. Remove the antenna cord from the cutout of the roof headlining.
      3. Remove the antenna cord from the 3 claws of the side rail spacer.
        Fig 32: Identifying Antenna Cord From Claws Of Side Rail Spacer (With Curtain Shield Airbag)
        G04835623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Curtain Shield Airbag:
      1. Remove the 5 pieces of tape.
      2. Remove the antenna cord from the cutout of the roof headlining.
      3. Remove the antenna cord from the 5 claws of the side rail spacer.
        Fig 33: Identifying Antenna Cord From Claws Of Side Rail Spacer (Without Curtain Shield Airbag)
        G04835624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. REMOVE FRONT SIDE RAIL SPACER RH

    HINT:

    Only remove the front side rail spacer when the roof headlining is replaced.

    1. w/ Curtain Shield Airbag:
      1. Remove the 3 adhesion portions and the front side rail spacer.
        Fig 34: Identifying Adhesive Location - With Curtain Shield Airbag
        G04835625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Curtain Shield Airbag:
      1. Remove the 4 adhesion portions and the front side rail spacer.
        Fig 35: Identifying Adhesive Location - Without Curtain Shield Airbag
        G04835626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. REMOVE FRONT SIDE RAIL SPACER LH

    HINT:

    Use the same procedure as for the RH side.

  75. REMOVE REAR SIDE RAIL SPACER RH

    HINT:

    Only remove the rear side rail spacer when the roof headlining is replaced.

    1. w/ Curtain Shield Airbag:
      1. Remove the 2 adhesion portions and the rear side rail spacer.
        Fig 36: Identifying Adhesive Location - With Curtain Shield Airbag
        G04835627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Curtain Shield Airbag:
      1. Remove the 4 adhesion portions and the rear side rail spacer.
        2. Fig 37: Identifying Adhesive Location - Without Curtain Shield Airbag
        G04835628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  76. REMOVE REAR SIDE RAIL SPACER LH

    HINT:

    Use the same procedure as for the RH side.

scientia non olet · About LEMON Manuals
