CURTAIN SHIELD AIRBAG ASSEMBLY (for 3 Door): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing (See AIRBAG SYSTEM  ).
NOTE: Always use "Tone" socket wrench E10 when installing the rear seat.

HINT:

The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

  1. INSTALL ROOF SIDE RAIL BRACKET RH
    1. Insert the 2 hooks into the body holes and install the roof side rail bracket.

      Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

    2. Install the wire harness clamp.
      Fig 1: Locating Roof Side Rail Bracket
      G04830392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CURTAIN SHIELD AIRBAG BRACKET RH
    1. Insert the 2 hooks into the body holes and install the curtain shield airbag bracket.

      Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

  3. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH
    1. Tighten the 2 bolts A.

      Torque: 14 N*m (145 kgf*cm, 10 ft.*lbf)

    2. Tighten the 4 screws B.
    3. Install front strap C.
      NOTE: Attach double sided tape to the indicated area, with the strap pulled downward. When installing the strap, make sure that the front pillar garnish installation holes are not hidden by the strap of the curtain shield airbag.
      Fig 2: Locating Curtain Shield Airbag Bracket
      G04830391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

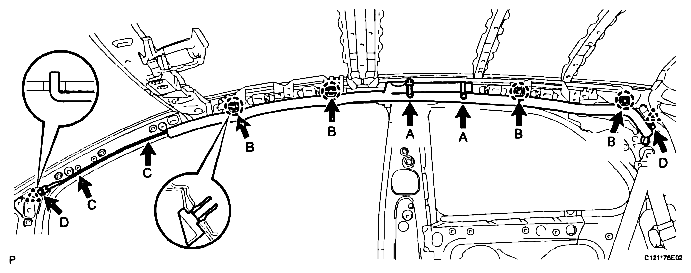

      Fig 3: Locating Curtain Airbag Clips
      G04830395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the 2 bolts D.

      Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

    5. Connect the airbag connector.
      NOTE: Lock the locking button securely.
  4. INSTALL ROOF HEADLINING ASSEMBLY  (See INSTALLATION )
  5. INSTALL INSTRUMENT PANEL BOX  (See INSTALLATION )
  6. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  7. INSTALL NO. 1 SWITCH HOLE BASE  (See INSTALLATION )
  8. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  9. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  10. INSTALL INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  (See INSTALLATION )
  12. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  (See INSTALLATION )
  13. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  14. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  15. INSTALL MAP LIGHT ASSEMBLY  (See INSTALLATION )
  16. INSTALL ROOM LIGHT ASSEMBLY  (See INSTALLATION )
  17. INSTALL VISOR HOLDER RH  (See INSTALLATION )
  18. INSTALL VISOR HOLDER LH  (See INSTALLATION )
  19. INSTALL VISOR ASSEMBLY RH  (See INSTALLATION )
  20. INSTALL VISOR ASSEMBLY LH  (See INSTALLATION )
  21. INSTALL ASSIST GRIP SUB-ASSEMBLY  (See INSTALLATION )
  22. INSTALL SEAT BELT ANCHOR COVER  (See INSTALLATION )
  23. INSTALL REAR ROOF SIDE RAIL GARNISH RH  (See INSTALLATION )
  24. INSTALL REAR ROOF SIDE RAIL GARNISH LH  (See INSTALLATION )
  25. INSTALL ROOF SIDE INNER GARNISH RH  (See INSTALLATION )
  26. INSTALL ROOF SIDE INNER GARNISH LH  (See INSTALLATION )
  27. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY  (See INSTALLATION )
  28. INSTALL CENTER PILLAR UPPER GARNISH RH  (See INSTALLATION )
  29. INSTALL CENTER PILLAR UPPER GARNISH LH  (See INSTALLATION )
  30. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH  (See INSTALLATION )
  31. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH  (See INSTALLATION )
  32. INSTALL SEAT BELT ANCHOR COVER CAP  (See INSTALLATION )
  33. INSTALL DECK SIDE TRIM PANEL ASSEMBLY RH  (See INSTALLATION )
  34. INSTALL DECK SIDE TRIM PANEL ASSEMBLY LH  (See INSTALLATION )
  35. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH  (See INSTALLATION )
  36. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH  (See INSTALLATION )
  37. INSTALL REAR DECK TRIM COVER  (See INSTALLATION )
  38. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH  (See INSTALLATION )
  39. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH (See  INSTALLATION  )
  40. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  41. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  42. INSTALL COWL SIDE TRIM BOARD RH  (See INSTALLATION )
  43. INSTALL COWL SIDE TRIM BOARD LH  (See INSTALLATION )
  44. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH  (See INSTALLATION )
  45. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH  (See INSTALLATION )
  46. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  47. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  48. INSTALL REAR SEAT ASSEMBLY LH (for 60/40 Split Seat Type)  (See INSTALLATION )
  49. INSTALL REAR SEAT ASSEMBLY RH (for 60/40 Split Seat Type)  INSTALLATION
  50. INSTALL NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type)  (See INSTALLATION )
  51. INSTALL NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type)  (See INSTALLATION )
  52. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type)  INSTALLATION
  53. INSTALL REAR SEATBACK ASSEMBLY (for Hold Down Seat Type)  INSTALLATION
  54. INSTALL DECK FLOOR BOX RH  (See INSTALLATION )
  55. INSTALL DECK FLOOR BOX LH  (See INSTALLATION )
  56. INSTALL DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  57. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY  (See INSTALLATION )
  58. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  59. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM  )
