COMBINATION METER (for Hatchback): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COMBINATION METER ASSEMBLY
1. Install the combination meter assembly with the 2 screws.
2. Connect the 2 connectors.
INSTALL INSTRUMENT CLUSTER FINISH PANEL
1. Fit the 3 A claws of the instrument cluster finish panel into the upper instrument cluster finish panel center.

  Fig 2: Identifying Instrument Cluster Finish Panel Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

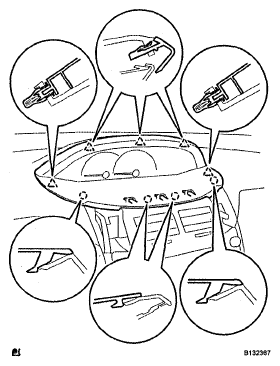

2. Engage the 4 claws and 5 clips and install the instrument cluster finish panel.

  Fig 3: Identifying Instrument Cluster Finish Panel Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL END RH
1. Connect the connector.
2. Engage the 5 claws and 3 clips and install the instrument panel finish panel end RH.

  Fig 4: Identifying Instrument Panel Finish Panel End RH Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
1. Connect the connector.
2. Engage the 5 claws and 3 clips and install the instrument panel finish panel end LH.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
