Outside Molding: Installation

HINT:

The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

  1. INSTALL BACK DOOR OUTSIDE MOLDING RH
    1. Install 6 new clips.
      NOTE: If you install the clips wrongly, the installation of the back door outside molding will be improper.
      Fig 1: Identifying Back Door Outside Molding Clips Positions
      G05115021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 6 clips and install the back door outside molding.
      Fig 2: Identifying Back Door Outside Molding Clips
      G05115022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the screw.
    4. Remove the protective tape.
      Fig 3: Identifying Protective Tape
      G05115018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BACK DOOR OUTSIDE MOLDING LH
    1. Install 6 new clips.
      NOTE: If you install the clips wrongly, the installation of the back door outside molding will be improper.
      Fig 4: Identifying Back Door Outside Molding Clips Positions
      G05115024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 6 clips and install the back door outside molding.
      Fig 5: Identifying Back Door Outside Molding Clips
      G05115025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the screw.
    4. Remove the protective tape.
      Fig 6: Identifying Protective Tape
      G05115015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SPARE TIRE

    Torque: 88 N*m (897 kgf*cm, 65 ft.*lbf)

  4. INSTALL ACCESS DOOR OUTSIDE MOLDING SUB-ASSEMBLY
    1. Install 4 new clips.
      NOTE: If you install the clips wrongly, the installation of the access door outside molding will be improper.
      Fig 7: Identifying Access Door Outside Molding Sub-Assembly Clips
      G05115027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips and install the access door outside molding.
      Fig 8: Identifying Access Door Outside Molding Clips
      G05115028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the nut.

      Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

    4. Remove the protective tape.
      Fig 9: Identifying Protective Tape
      G05115012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT DOOR OUTSIDE MOLDING SUB-ASSEMBLY
    1. Install 9 new clips.
      NOTE: If you install the clips wrongly, the installation of the rear door outside molding will be improper.
      Fig 10: Identifying Front Door Outside Moldding Clips Position
      G05115030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 9 clips and install the front door outside molding.
      Fig 11: Identifying Front Door Outside Molding Clips
      G05115031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 2 nuts.

      Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

    4. Remove the protective tape.
      Fig 12: Identifying Protective Tape
      G05115009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL QUARTER PANEL MOLDING PAD

    HINT:

    Only follow this procedure when replacing the quarter outside molding pad.

    1. Install a new quarter outside molding pad.
      Fig 13: Identifying New Quarter Outside Molding Pad
      G05115033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL QUARTER OUTSIDE MOLDING SUB-ASSEMBLY
    1. Install 2 new clips.
      NOTE: If you install the clips wrongly, the installation of the quarter outside molding will be improper.
      Fig 14: Identifying Quarter Outside Molding Sub-Assembly Clips
      G05115034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips and install the quarter outside molding.
      Fig 15: Identifying Quarter Outside Molding Clips
      G05115007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 8 screws

      Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

      Fig 16: Identifying Quarter Outside Molding Screws
      G05115006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the clip.
    5. Remove the protective tape.
      Fig 17: Identifying Protective Tape
      G05115005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT FENDER OUTSIDE MOLDING PAD

    HINT:

    Only follow this procedure when replacing the front wheel opening extension pad.

    1. Install a new front wheel opening extension pad.
      Fig 18: Identifying Front Wheel Opening Extension Pad Position
      G05115038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT FENDER MOLDING SUB-ASSEMBLY
    1. Install 2 new clips.
      NOTE: If you install the clips wrongly, the installation of the front fender molding will be improper.
      Fig 19: Identifying Front Fender Molding Clips Positions
      G05115039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips and install the front fender molding.
      Fig 20: Identifying Front Fender Molding Clips
      G05115003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 5 screws.

      Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

    4. Install the 2 clips
      Fig 21: Identifying Front Fender Molding Clips & Screws
      G05115041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the protective tape.
      Fig 22: Identifying Protective Tape For Fender Panel
      G05115001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FRONT BUMPER SIDE SUPPORT  (See INSTALLATION  )
  11. INSTALL ROCKER PANEL MOLDING
    1. Install 3 clips.
      Fig 23: Identifying Rocker Panel Molding Clips Position
      G05115043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: If you install the clips wrongly, the installation of the rocker panel molding will be improper.
    2. Engage the 5 clips and install the rocker panel molding.

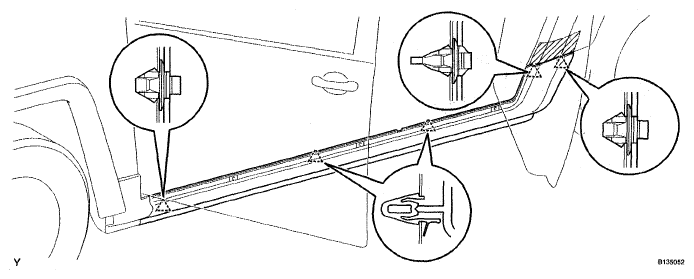

      Fig 24: Identifying Rocker Panel Molding Clips
      G05114999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 3 screws.

      Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

    4. Install the 6 retainers.

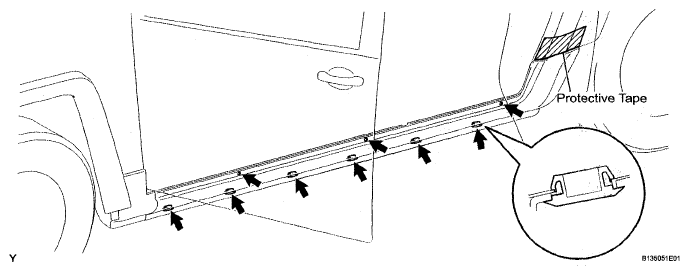

      Fig 25: Identifying Rocker Panel Molding Retainers & Screws
      G05114998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL SIDE STEP SUB-ASSEMBLY  (See INSTALLATION  )
  13. INSTALL QUARTER PANEL MUDGUARD  (See INSTALLATION  )
  14. INSTALL FRONT FENDER MUDGUARD  (See INSTALLATION  )
  15. INSTALL REAR BUMPER COVER  (See INSTALLATION  )
  16. INSTALL FRONT BUMPER COVER
    1. Engage the 2 claws and install the front bumper cover.
      Fig 26: Identifying Front Bumper Cover Claws
      G05114864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 8 screws and the 4 bolts.

      Torque:

      3.0 N*m (30 kgf*cm, 27 in.*lbf) for screw

      8.0 N*m (80 kgf*cm, 71 in.*lbf) for bolt

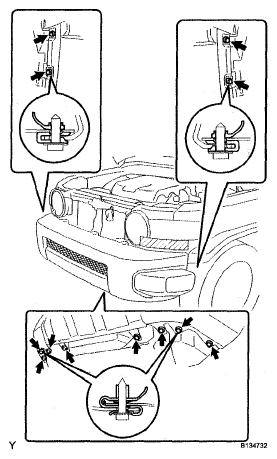

      Fig 27: Identifying Front Bumper Cover Screws & Bolts
      G05114884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 5 clips.
      Fig 28: Identifying Front Bumper Cover Clips
      G05114862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the protective tape.
      Fig 29: Identifying Protective Tape
      G05114861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL RADIATOR GRILLE  (See INSTALLATION  )
  18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Back Sonar)

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
