Rear Bumper: Installation

INSTALL REAR BUMPER BAR BRACKET LH
1. Insert the hook into the body hole and install the rear bumper bar bracket with the bolt.
  Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

  Fig 1: Identifying Rear Bumper Bar Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER BAR BRACKET RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR BUMPER SIDE SUPPORT SUB-ASSEMBLY LH
1. Align the locating pin with the hole and install the rear bumper side support with the 2 bolts.
  Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

  Fig 2: Identifying Rear Bumper Side Support Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER SIDE SUPPORT SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR BUMPER SIDE STAY LH
1. Insert the hook into the body hole and install the rear bumper side stay with the bolt.
  Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

  Fig 3: Identifying Rear Bumper Side Stay Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER SIDE STAY RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR BUMPER ENERGY ABSORBER
1. Engage the 2 claws and install the rear bumper energy absorber.

  Fig 4: Identifying Rear Bumper Energy Absorber Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER UPPER RETAINER LH
1. Engage the 3 claws and install the rear bumper upper retainer.

  Fig 5: Identifying Rear Bumper Upper Retainer Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the 2 screws.
  Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf)
INSTALL REAR BUMPER UPPER RETAINER RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR BUMPER END RETAINER LH
1. Engage the 2 claws and install the rear bumper end retainer.

  Fig 6: Identifying Rear Bumper End Retainer Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the screw.
  Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf)
INSTALL REAR BUMPER END RETAINER RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR BUMPER COVER
1. Engage the 6 claws and the 2 clips and install the rear bumper cover.

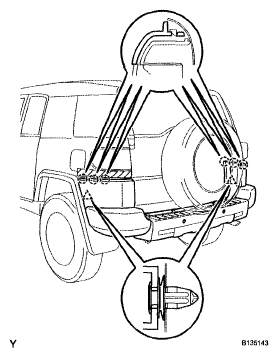

  Fig 7: Identifying Rear Bumper Cover Claws & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Back Sonar:
  1. Connect the 2 wire to wire connectors.

    Fig 8: Identifying Wire Connectors
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Tighten the 7 bolts and the 2 screws.
  Torque:

  8.0 N*m (80 kgf*cm, 71 in.*lbf) for bolt

  3.0 N*m (30 kgf*cm, 27 in.*lbf) for screw

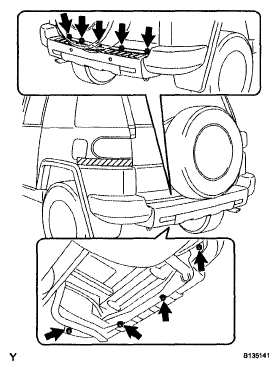

  Fig 9: Identifying Rear Bumper Cover Bolts & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the protective tape.

  Fig 10: Identifying Protective Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
