Instrument Panel Safety Pad: Installation

  1. INSTALL NO. 3 INSTRUMENT PANEL STAY
    1. Engage the claw and install the 5 No. 3 instrument panel stays.

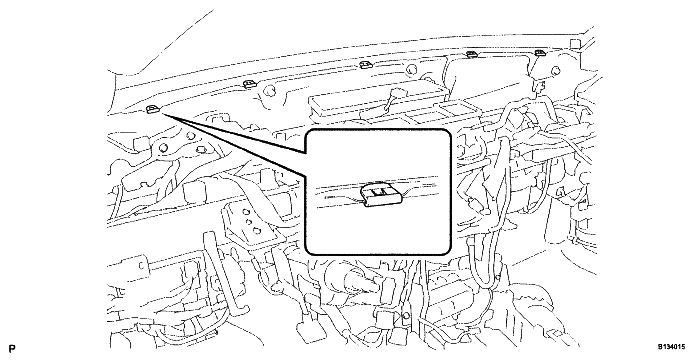

      Fig 1: Identifying No. 3 Instrument Panel Stay Claw
      G04981306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMC Made)
    1. Engage the 5 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    2. Install the 2 bolts <C> or <H> and 2 nuts or <Z>.

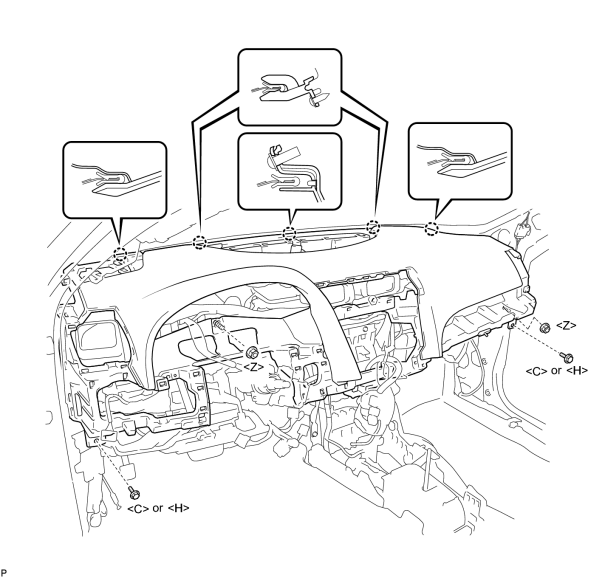

      Fig 2: Identifying Instrument Panel Safety Pad Assembly Claws (For TMC Made)
      G00455914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage each clamp.
    4. Install the bolt <J>.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    5. Install the 2 passenger airbag bolts <K>.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    6. Connect each connector and install the instrument panel safety pad assembly.
    7. with Plasmacluster:
      1. Connect the connector.
        Fig 3: Locating Instrument Panel Safety Pad Assembly Connectors (For TMC Made)
        G04981302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMMK Made)
    1. Engage the 5 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    2. Install the 2 bolts <N>, <a> or and 2 nuts.

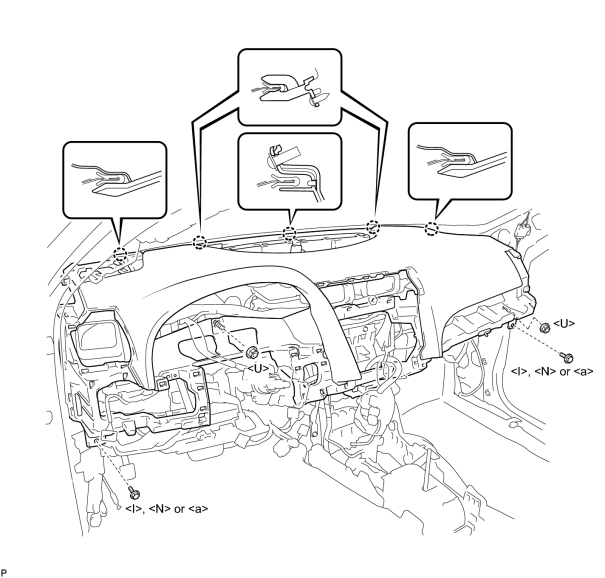

      Fig 4: Identifying Instrument Panel Safety Pad Assembly Claws (For TMMK Made)
      G00455915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage each clamp.
    4. Install the bolt <Y>.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    5. Install the 2 passenger airbag bolts <V>.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    6. Connect each connector and install the instrument panel safety pad assembly.
    7. with Plasmacluster:
      1. Connect the connector.

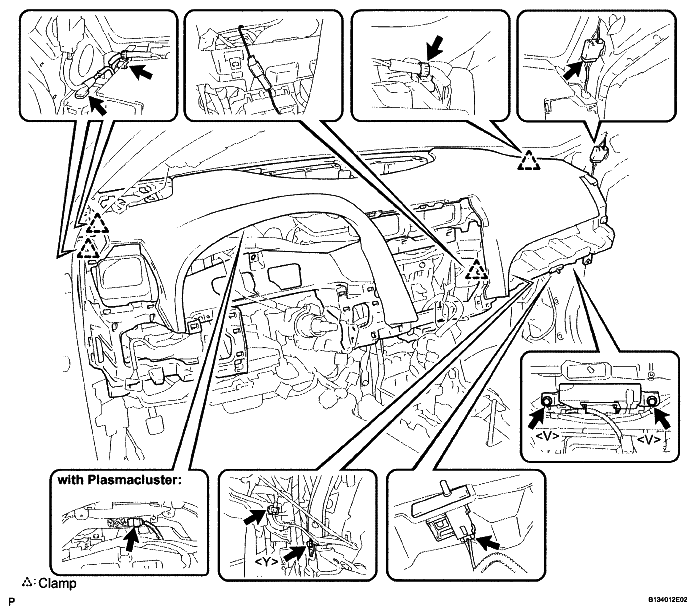

        Fig 5: Identifying Instrument Panel Safety Pad Assembly Connectors (For TMMK Made)
        G04981304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  5. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH
    1. Connect each connector.
    2. Engage the 4 guides.
    3. Engage the 8 clips and install the No. 1 defroster nozzle garnish.
      Fig 6: Identifying No. 1 Defroster Nozzle Garnish Clips And Guides
      G04981301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  (See INSTALLATION )
  7. INSTALL INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 2 guides.
    2. Engage the 6 claws and the 2 clips to install the instrument panel No. 1 speaker panel sub-assembly.
      Fig 7: Identifying Instrument Panel No. 1 Speaker Panel Sub-Assembly Claws And Clips
      G04981298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY
    1. Engage the 4 clips and install the instrument panel No. 1 register assembly.
      Fig 8: Identifying Instrument Panel No. 1 Register Assembly Clips
      G04981297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  10. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedures for the RH side and the LH side (See INSTALLATION ).

  11. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 2 guides.
    2. Engage the 6 claws and the 2 clips to install the instrument panel No. 2 speaker panel sub-assembly.
      Fig 9: Identifying Instrument Panel No. 2 Speaker Panel Sub-Assembly Claws And Clips
      G04981300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY
    1. Engage the 4 clips and install the instrument panel No. 3 register assembly.
      Fig 10: Identifying Instrument Panel No. 3 Register Assembly Clips
      G04981299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  14. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made)
    1. Engage the clip.
    2. Install the No. 1 console box insert front with the 3 screws <F>.
      Fig 11: Identifying No. 1 Console Box Insert Front Clip And Screws (For TMC Made)
      G04981295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made)
    1. Engage the clip.
    2. Install the No. 1 console box insert front with the 3 screws <O>.
      Fig 12: Identifying No. 1 Console Box Insert Front Clip And Screws (For TMMK Made)
      G04981296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made)
    1. Engage the clip.
    2. Install the No. 2 console box insert front with the 3 screws <F>.
      Fig 13: Identifying No. 2 Console Box Insert Front Clip And Screws (For TMC Made)
      G04981293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made)
    1. Engage the clip.
    2. Install the No. 2 console box insert front with the 3 screws <O>.
      Fig 14: Identifying No. 2 Console Box Insert Front Clip And Screws (For TMMK Made)
      G04981294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL CONSOLE BOX ASSEMBLY (for TMC Made)
    1. Install the 2 screws <F>.
      Fig 15: Locating Console Box Assembly Screws
      G04981289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the console box assembly with the 2 bolts <G>.
      Fig 16: Locating Console Box Assembly Bolts
      G04981290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the clamp.
  19. INSTALL CONSOLE BOX ASSEMBLY (for TMMK Made)
    1. Install the 2 screws <O>.
      Fig 17: Locating Console Box Assembly Screws
      G04981291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the console box assembly with the 2 bolts <S> or <T>.
      Fig 18: Locating Console Box Assembly Bolts
      G04981292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the clamp.
  20. INSTALL CONSOLE BOX CARPET
    1. Install the console box carpet.
      Fig 19: Identifying Console Box Carpet
      G04981288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL CONSOLE BOX POCKET
    1. Install the console box pocket.
  22. INSTALL RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System)  (See INSTALLATION )
  23. INSTALL NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
  24. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
    1. Connect the connector.
    2. Engage the 7 clips and install the instrument panel No. 2 register assembly.
      Fig 20: Identifying Instrument Panel No. 2 Register Assembly Clips
      G04981354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made)
    1. Connect each connector.
    2. Engage the 4 claws.
    3. Install the upper console panel sub-assembly with the 2 screws <F>.
      Fig 21: Locating Upper Console Panel Sub-Assembly Claws And Screws (For TMC Made)
      G04981283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made)
    1. Connect each connector.
    2. Engage the 4 claws.
    3. Install the upper console panel sub-assembly with the 2 screws <O>.
      Fig 22: Locating Upper Console Panel Sub-Assembly Claws And Screws (For TMMK Made)
      G04981284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle)
    1. Connect the connector.
    2. Engage the 3 claws and 5 clips to install the upper console rear panel sub-assembly.

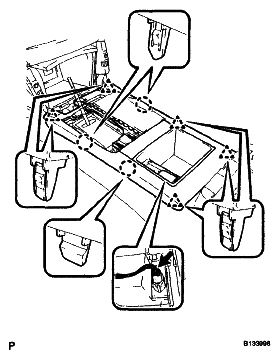

      Fig 23: Identifying Upper Console Rear Panel Sub-Assembly Claws And Clips (For Automatic Transaxle)
      G04981281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle)
    1. Engage the 3 claws and 5 clips to install the upper console rear panel sub-assembly.
      Fig 24: Identifying Upper Console Rear Panel Sub-Assembly Claws And Clips (For Manual Transaxle)
      G04981282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)
    1. with Seat Heater System:
      1. Connect each connector.
    2. Engage the 6 claws and the 3 clips to install the floor shift position indicator housing sub-assembly.
      Fig 25: Identifying Floor Shift Position Indicator Housing Sub-Assembly Claws And Clips
      G04981278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL UPPER CONSOLE PANEL (for Manual Transaxle)
    1. Engage the 2 claws and the 5 clips to install the upper console panel as shown in the illustration.
      Fig 26: Identifying Upper Console Panel Claws And Clips (For Manual Transaxle)
      G04981360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Engage the 2 clips and install the No. 2 instrument cluster finish panel garnish.
      Fig 27: Identifying No. 2 Instrument Cluster Finish Panel Garnish Clips
      G04981277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Engage the 2 clips and install the No. 1 instrument cluster finish panel garnish.
      Fig 28: Identifying No. 1 Instrument Cluster Finish Panel Garnish Clips
      G04981276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
    1. Install the shift lever knob sub-assembly.
      Fig 29: Installing Shift Lever Knob Sub-Assembly (For Automatic Transaxle)
      G04976063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
    1. Install the shift lever knob sub-assembly.
      Fig 30: Installing Shift Lever Knob Sub-Assembly (For Manual Transaxle)
      G04981364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)
    1. Connect the connector.
    2. Engage the 3 claws and 3 clips.
    3. Install the 4 screws <B>.
    4. Install the lower instrument panel sub-assembly with the bolt <A>.
      Fig 31: Identifying Lower Instrument Panel Sub-Assembly Claws And Clips (For TMC Made)
      G04981272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)
    1. Engage the 3 claws and 3 clips.
    2. Install the screw <O> or and 3 screws <O>.
    3. Install the lower instrument panel sub-assembly with the bolt <N>.
      Fig 32: Identifying Lower Instrument Panel Sub-Assembly Claws And Clips (For TMMK Made)
      G04981273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
    1. Engage the 4 claws and 2 guides and install the instrument panel No. 2 under cover.
      Fig 33: Identifying Instrument Panel No. 2 Under Cover Sub-Assembly Claws And Guides
      G04981367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH  (See INSTALLATION )
  39. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  40. INSTALL COMBINATION METER ASSEMBLY (for TMC Made)
    1. Connect each connector.
    2. Install the combination meter assembly with the 4 screws <E>.
      Fig 34: Locating Combination Meter Assembly Screws (For TMC Made)
      G04981269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL COMBINATION METER ASSEMBLY (for TMMK Made)
    1. Connect each connector.
    2. Install the combination meter assembly with the 4 screws <R>.
      Fig 35: Locating Combination Meter Assembly Screws (For TMMK Made)
      G04981270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL INSTRUMENT CLUSTER FINISH PANEL
    1. Engage the guide and the 4 claws.
    2. Install the instrument cluster finish panel with the 2 clips.
      Fig 36: Identifying Instrument Cluster Finish Panel Guide And Claws
      G04981268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System)
    1. Engage the 2 claws and 2 clips to install the lower instrument panel finish panel.
      Fig 37: Identifying Lower Instrument Panel Finish Panel Claws And Clips (W/O Smart Key System)
      G04981266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System)
    1. Connect the connector.
    2. Engage the 2 claws and 2 clips to install the lower instrument panel finish panel.
      Fig 38: Identifying Lower Instrument Panel Finish Panel Claws And Clips (W/ Smart Key System)
      G04981267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Engage the 3 claws and 2 clips to install the No. 1 instrument panel sub-assembly.
      Fig 39: Identifying Instrument Panel Sub-Assembly Claws And Clips
      G04981265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  47. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  48. INSTALL STEERING COLUMN COVER (for TMC Made)
    1. Engage the claw and install the upper steering column cover.
    2. Engage the 2 claws and install the lower steering column cover.
    3. Install the steering column cover with the 2 screws <D>.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

      Fig 40: Identifying Steering Column Cover Claws (For TMC Made)
      G04981263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. INSTALL STEERING COLUMN COVER (for TMMK Made)
    1. Engage the claw and install the upper steering column cover.
    2. Engage the 2 claws and install the lower steering column cover.
    3. Install the steering column cover with the 2 screws <Q>.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

      Fig 41: Identifying Steering Column Cover Claws (For TMMK Made)
      G04981264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)
    1. Install the air hose and connect the connector.
    2. Engage the claw and the 9 clips.
    3. Instal the instrument panel finish panel LH with the screw and bolt <A>.

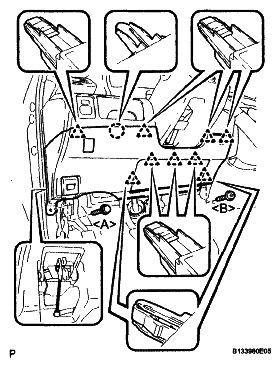

      Fig 42: Identifying Lower Instrument Panel Finish Panel Claws And Clips (For TMC Made)
      G04981376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)
    1. Install the air hose and connect the connector.
    2. Engage the claw and the 9 clips.
    3. Install the instrument panel finish panel LH with the screw <O> or and bolt <N>.

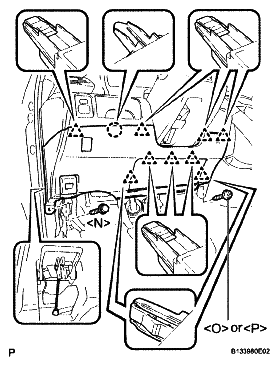

      Fig 43: Identifying Lower Instrument Panel Finish Panel Claw And Clips (For TMMK Made)
      G04981262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  (See INSTALLATION )
  53. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  54. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  55. INSTALL STEERING PAD  (See INSTALLATION )
  56. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  57. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  58. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  59. INSPECT STEERING PAD  (See INSTALLATION )
  60. INSPECT SRS WARNING LIGHT  (See DIAGNOSIS SYSTEM
scientia non olet · About LEMON Manuals
