Front Passenger Airbag Assembly: Installation

  1. INSTALL INSTRUMENT PANEL WIRE ASSEMBLY
    1. Connect the 2 connectors.
    2. Install the clamp and the instrument panel wire assembly on the front passenger airbag assembly.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
      Fig 1: Locating Instrument Panel Wire Assembly Connectors
      G04979643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
    1. Engage the 10 hooks and install the front passenger airbag assembly on the instrument panel.

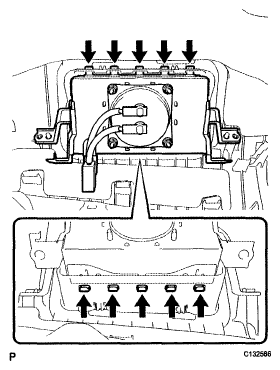

      Fig 2: Locating Front Passenger Airbag Assembly Hooks
      G04979642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.
    Fig 3: Identifying Front Passenger Airbag Assembly Screws
    G04979641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 INSTRUMENT PANEL STAY  (See INSTALLATION )
  4. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMC Made)  (See INSTALLATION )
  5. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMMK Made)  (See INSTALLATION )
  6. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH  (See INSTALLATION )
  7. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  (See INSTALLATION )
  8. INSTALL INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  9. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY  (See INSTALLATION )
  10. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  11. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)  (See INSTALLATION )
  12. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  13. INSTALL INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY  (See INSTALLATION )
  14. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  15. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made)  (See INSTALLATION )
  16. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made)  (See INSTALLATION )
  17. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made)  (See INSTALLATION )
  18. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made)  (See INSTALLATION )
  19. INSTALL CONSOLE BOX ASSEMBLY (for TMC Made)  (See INSTALLATION )
  20. INSTALL CONSOLE BOX ASSEMBLY (for TMMK Made)  (See INSTALLATION )
  21. INSTALL CONSOLE BOX CARPET  (See INSTALLATION )
  22. INSTALL CONSOLE BOX POCKET  (See INSTALLATION )
  23. INSTALL RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System)  (See INSTALLATION )
  24. INSTALL NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
  25. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY  (See INSTALLATION )
  26. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made)  (See INSTALLATION )
  27. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made)  (See INSTALLATION )
  28. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  29. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  30. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  31. INSTALL UPPER CONSOLE PANEL (for Manual Transaxle)  (See INSTALLATION )
  32. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH  (See INSTALLATION )
  33. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH  (See INSTALLATION )
  34. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  35. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  36. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY
    1. Connect the connector.
    Fig 4: Locating Instrument Panel Wire Assembly Connector
    G04979647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)  (See INSTALLATION )
  38. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)  (See INSTALLATION )
  39. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  40. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH  (See INSTALLATION )
  41. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  42. INSTALL COMBINATION METER ASSEMBLY (for TMC Made)  (See INSTALLATION )
  43. INSTALL COMBINATION METER ASSEMBLY (for TMMK Made)  (See INSTALLATION )
  44. INSTALL INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  45. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System)  (See INSTALLATION )
  46. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System)  (See INSTALLATION )
  47. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  48. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  49. ADJUST SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION   )
  50. INSTALL STEERING COLUMN COVER (for TMC Made)  (See INSTALLATION )
  51. INSTALL STEERING COLUMN COVER (for TMMK Made)  (See INSTALLATION )
  52. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)  (See INSTALLATION )
  53. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)  (See INSTALLATION )
  54. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  (See INSTALLATION )
  55. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  56. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  57. INSTALL STEERING PAD (See  INSTALLATION   )
  58. INSTALL LOWER NO. 3 STEERING WHEEL COVER (See  INSTALLATION   )
  59. INSTALL LOWER NO. 2 STEERING WHEEL COVER (See  INSTALLATION   )
  60. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  61. INSPECT STEERING PAD (See  INSTALLATION   )
  62. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (See INSTALLATION  ).
