Roof Headlining: Installation

  1. INSTALL NO. 1 ROOF WIRE (w/o Sliding Roof)
    1. Apply new double-sided tape to locations shown in the illustration while aligning the tape with the markings on the roof headlining.

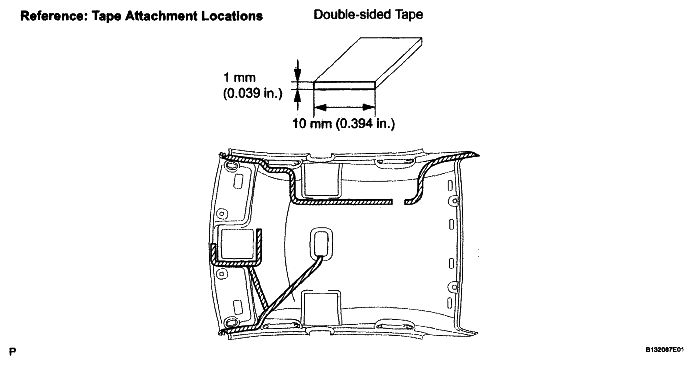

      Fig 1: Identifying Double-Sided Tape Attachment Locations
      G04982097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Securely apply the double-sided tape to prevent it from being out of alignment and peeling off.
    2. Peel off the release paper from the double-sided tape.
    3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
      NOTE:
      • Securely attach the No. 1 roof wire.
      • Failure to do so may cause abnormal noise.
    4. Apply adhesive tape to locations shown in the illustration.

      HINT:

      As shown at point A in the illustration, line up and secure the reference tape of the wire harness to the tip of the roof headlining assembly.

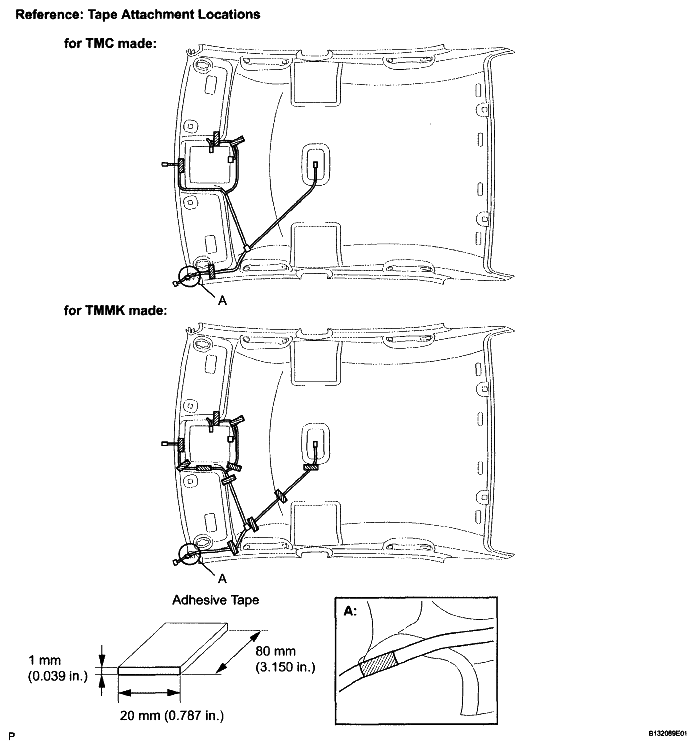

      Fig 2: Applying Adhesive Tape To Point A
      G04982098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 ROOF WIRE (w/ Sliding Roof)
    1. Apply new double-sided tape to locations shown in the illustration while aligning the tape with the markings on the roof headlining.
      NOTE: Securely apply the double-sided tape to prevent it from being out of alignment and peeling off.

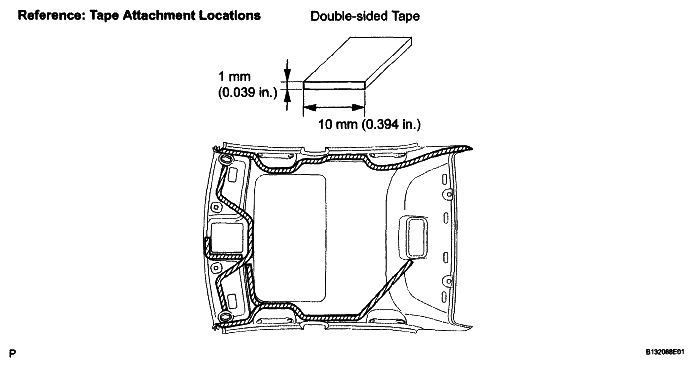

      Fig 3: Identifying Adhesive Tape Attachment Locations (W/ Sliding Roof)
      G04982099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Peel off the release paper from the double-sided tape.
    3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
      NOTE:
      • Securely attach the No. 1 roof wire.
      • Failure to do so may cause abnormal noise.
    4. Turn the visor connectors clockwise approximately 90° to install the connectors to the roof headlining.
    5. Apply adhesive tape to locations shown in the illustration.

      HINT:

      As shown at point A in the illustration, line up and secure the reference tape of the wire harness to the tip of the roof headlining assembly.

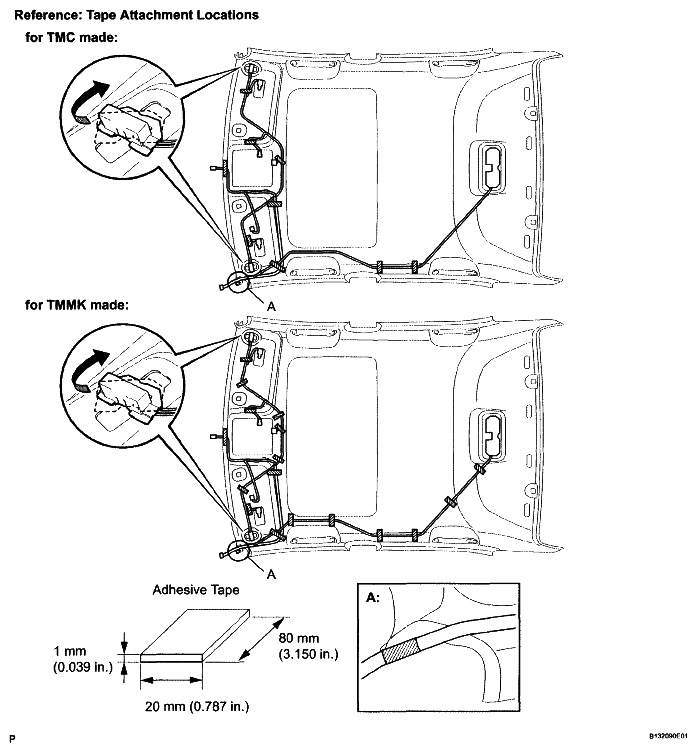

      Fig 4: Applying Adhesive To Point A
      G04982100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ANTENNA CORD SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL VANITY LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Engage the 3 claws and install the vanity light assembly.

      HINT:

      Use the same procedure to install the light on the other side.

      Fig 5: Identifying Claws
      G04982101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FASTENER HOOK (w/ Sliding Roof)
    1. Align the markings on the roof headlining assembly with the fastener hooks and install the fastener hooks using hot melt glue as shown in the illustration.
      Fig 6: Identifying Roof Headlining Assembly Fastener Hooks (W/Sliding Roof)
      G04982102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 REAR SIDE RAIL SPACER LH (w/ Sliding Roof)
    1. Align the markings on the roof headlining assembly with the No. 2 rear side rail spacer LH and install the spacer using hot melt glue as shown in the illustration.
      Fig 7: Identifying No.2 Rear Side Rail Spacer (W/ Sliding Roof)
      G04982093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 REAR SIDE RAIL SPACER RH (w/ Sliding Roof)

    HINT:

    Use the same procedure for the RH side and the LH side.

  8. INSTALL NO. 4 ROOF SILENCER PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the No. 4 roof silencer pads and install the silencer pads using hot melt glue or double-sided tape as shown in the illustration.
      Fig 8: Identifying No.4 Roof Silencer Pad (W/O Sliding Roof)
      G04982092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the No. 2 roof silencer pad and install the silencer pad using hot melt glue or double-sided tape as shown in the illustration.
      Fig 9: Identifying No.2 Roof Silencer Pad (W/O Sliding Roof)
      G04982105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ROOF SIDE RAIL SILENCER PAD LH (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the roof side rail silencer pad LH and install the silencer pad using hot melt glue as shown in the illustration.
      Fig 10: Identifying Roof Side Rail Silencer Pad (W/O Sliding Roof)
      G04982090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL ROOF SIDE RAIL SILENCER PAD RH (w/o Sliding Roof)

    HINT:

    Use the same procedure for the RH side and the LH side.

  12. INSTALL NO. 3 REAR SIDE RAIL SPACER LH (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the No. 3 rear side rail spacer LH and install the spacer using hot melt glue as shown in the illustration.
      Fig 11: Identifying No.3 Rear Side Rail Spacer (W/O Sliding Roof)
      G04982089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL NO. 3 REAR SIDE RAIL SPACER RH (w/o Sliding Roof)

    HINT:

    Use the same procedure for the RH side and the LH side.

  14. INSTALL NO. 2 REAR SIDE RAIL SPACER LH (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the No. 2 rear side rail spacer LH and install the spacer using hot melt glue as shown in the illustration.
      Fig 12: Identifying No.2 Rear Side Rail Spacer (W/O Sliding Roof)
      G04982108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 2 REAR SIDE RAIL SPACER RH (w/o Sliding Roof)

    HINT:

    Use the same procedure for the RH side and the LH side.

  16. INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. Pull the roof headlining assembly into the vehicle through the rear left door.
      Fig 13: Locating Roof Headlining Assembly (W/O Sliding Roof)
      G04982110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips.
    3. Connect the antenna cord sub-assembly connector and engage the clamp to the rear pillar RH.
    4. Connect the antenna cord sub-assembly connector and engage each clamp to the front pillar RH.
    5. Install the radio setting condenser to the front pillar RH with the bolt.
    6. Connect the No. 1 roof wire connector and engage each clamp to the front pillar LH.

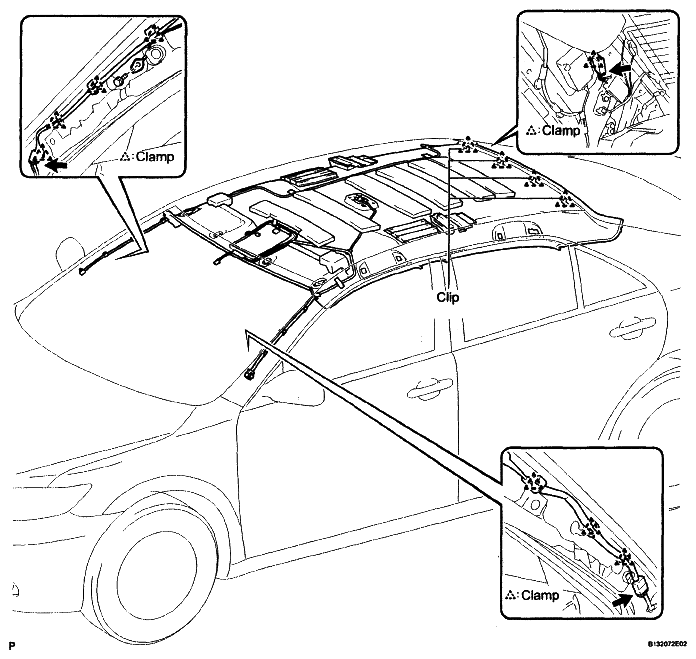

      Fig 14: Identifying Clip And Clamp Location On Roof Headlining Assembly (W/O Sliding Roof)
      G04982083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. Pull the roof headlining assembly into the vehicle through the rear left door.
      Fig 15: Installing Roof Headlining Assembly (W/ Sliding Roof)
      G04982112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook, 4 clips, and 2 fasteners.
    3. Connect the sliding roof drive gear connector.
    4. Connect the antenna cord sub-assembly connector and engage the clamp to the rear pillar RH.
    5. Connect the antenna cord sub-assembly connector and engage each clamp to the front pillar RH.
    6. Install the radio setting condenser to the front pillar RH with the bolt.
    7. Connect the No. 1 roof wire connector and engage each clamp to the front pillar LH.

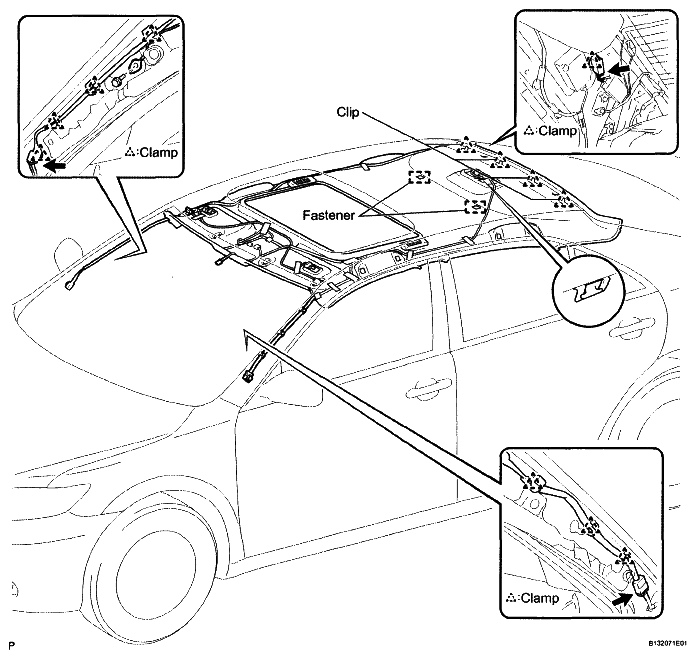

      Fig 16: Identifying Clip, Clamp And Fastener Location On Roof Headlining Assembly (W/ Sliding Roof)
      G04982085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL SUNSHADE TRIM HOLDER (w/ Rear Sunshade)
    1. Engage the 2 claws.
      Fig 17: Identifying Claws On Sunshade Trim Holder
      G04982082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, turn the pin of each sunshade trim holder 90° to install the sunshade trim holders.
      Fig 18: Identifying Pin Location On Sunshade Trim Holder
      G04982115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
    1. Align the joining point of the moulding with the notch of the roof headlining assembly, and install the sun roof opening trim moulding.
      NOTE: After installation, check that the corners fit correctly.
      Fig 19: Identifying Joining Point And Notch Location
      G04982116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL SPOT LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Push the light bulb holder in the direction indicated by the arrow in the illustration to engage the claw.
      Fig 20: Pushing Light Bulb Holder
      G04982117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 claws.
    3. Engage the 6 claws and install the spot light assembly.
      Fig 21: Identifying Claws Location On Spot Light Assembly
      G04982118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL NO. 1 ROOM LIGHT ASSEMBLY (w/o Sliding Roof)
    1. Engage the 4 claws and install the room light switch base to the No. 1 room light assembly.
      Fig 22: Identifying Claws Location On Room Light Switch Assembly
      G04982119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 claws.
      Fig 23: Identifying Claws Location
      G04982120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 4 claws and install the lens cover.
      Fig 24: Identifying Claws Location On Lens Cover
      G04982121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY
    1. Assemble the front assist grip sub-assembly as shown in the illustration.
      Fig 25: Assemble View Of Front Assist Grip Sub-Assembly
      G04982122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front assist grip sub-assembly.
      Fig 26: Identifying Rear Assist Grip Sub-Assembly
      G04982123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and the LH side.

  23. INSTALL REAR ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for the rear side and the front side.

  24. INSTALL VISOR HOLDER
    1. Engage the 2 claws.
    2. Push in the visor holder as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and the LH side.

      Fig 27: Pushing Visor Holder
      G04982124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL VISOR ASSEMBLY LH
    1. Engage the 2 clips and install the visor assembly LH.
      Fig 28: Identifying Clip Location On Visor Assembly
      G04982125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 claws and install the visor bracket cover.
      Fig 29: Identifying Claws Location On Visor Bracket Cover
      G04982126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL VISOR ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  27. INSTALL ROOF CONSOLE BOX ASSEMBLY
    1. Connect the connectors.
    2. Engage the 2 claws and 2 clips, and then install the roof console box assembly.
      Fig 30: Identifying Claws And Clips Location On Roof Console Box Assembly
      G04982127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL FRONT PILLAR GARNISH LH
    1. Remove the protective cover.

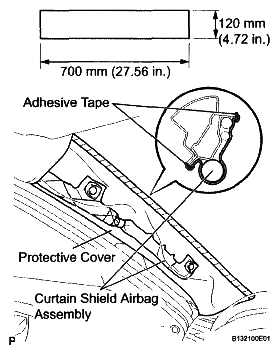

      Fig 31: Positions For Covering Curtain Shield Airbag Assembly
      G04982068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new clip <A> on the front pillar garnish LH.
    3. Engage the 2 claws and 2 clips, then install the front pillar garnish LH.
      Fig 32: Identifying Clip Location On Front Pillar Garnish
      G04982129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL FRONT PILLAR GARNISH RH
    1. Remove the protective cover.

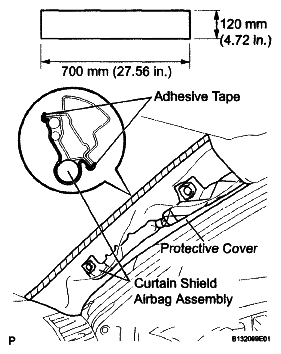

      Fig 33: Positions For Covering Curtain Shield Airbag Assembly
      G04982070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new clip <A> on the front pillar garnish RH.
      Fig 34: Identifying Clip Location On Front Pillar Garnish
      G04982131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 claws and 2 clips, then install the front pillar garnish RH.
  30. INSTALL ROOF SIDE INNER GARNISH LH
    1. Engage the 5 clips and 2 claws, then install the roof side inner garnish LH.
      Fig 35: Identifying Clips And Claws Location On Roof Side Inner Garnish
      G04982066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  32. INSTALL UPPER CENTER PILLAR GARNISH LH
    1. Engage the clip.
    2. Install the upper center pillar garnish LH with the bolt.
      Fig 36: Installing Upper Center Pillar Garnish
      G04982133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL LOWER CENTER PILLAR GARNISH LH
    1. Engage the 2 claws and 2 clips, then install the lower center pillar garnish LH.
      Fig 37: Installing Lower Center Pillar Garnish
      G04982134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Install the floor end of the front seat outer belt assembly with the bolt LH.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 38: Identifying Front Seat Outer Belt Bolt
      G04979759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL LAP BELT OUTER ANCHOR COVER (for LH Side)
    1. Engage the 3 claws and install the lap belt outer anchor cover.
      Fig 39: Identifying Claws On Lap Belt Outer Anchor Cover
      G04979758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip LH as shown in the illustration.
      NOTE: After installation, check that the corners fit correctly.
      Fig 40: Identifying Paint Mark Position On Front Door Opening Trim Weatherstrip
      G04982137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Engage the 2 clips.
    2. Install the cowl side trim sub-assembly LH with the cowl side trim clip.
      Fig 41: Identifying Cowl Side Trim Clip
      G04982061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Engage the 7 claws and 3 clips, then install the front door scuff plate LH.
      Fig 42: Identifying Claws And Clips On Front Door Scuff Plate
      G04982060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL UPPER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  40. INSTALL LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  41. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  42. INSTALL LAP BELT OUTER ANCHOR COVER (for RH Side)

    HINT:

    Use the same procedure for the RH side and the LH side.

  43. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip RH as shown in the illustration.
      NOTE: After installation, check that the corners fit correctly.
      Fig 43: Identifying Paint Mark Position On Front Door Opening Trim Weatherstrip
      G04982140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  45. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  46. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP LH  (See REASSEMBLY )
  47. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH  (See REASSEMBLY )
  48. INSTALL DOOR ASSIST GRIP COVER LH  (See REASSEMBLY )
  49. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH  (See REASSEMBLY )
  50. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH (for Reclining Seat Type)  (See REASSEMBLY )
  51. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH (for Reclining Seat Type)

    HINT:

    Use the same procedure for the RH side and the LH side.

  52. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the rear door opening trim weatherstrip LH as shown in the illustration.
      NOTE: After installation, check that the corners fit correctly.
      Fig 44: Identifying Paint Mark Position On Rear Door Opening Trim Weatherstrip
      G04982141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. INSTALL REAR DOOR SCUFF PLATE LH
    1. Engage the 5 claws and 2 clips, then install the rear door scuff plate LH.
      Fig 45: Identifying Claws And Clips On Rear Door Scuff Plate
      G04982059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the rear door opening trim weatherstrip RH as shown in the illustration.
      Fig 46: Identifying Marking Position On Rear Door Opening Trim Weatherstrip
      G04982143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: After installation, check that the corners fit correctly.
  55. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  56. INSTALL CENTER SEAT BACK ASSEMBLY (for Reclining Seat Type)  (See INSTALLATION )
  57. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Reclining Seat Type)  (See INSTALLATION )
  58. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Reclining Seat Type)  (See INSTALLATION )
  59. INSTALL REAR SEAT BACK COVER (for Reclining Seat Type)
  60. INSTALL REAR SIDE SEAT BACK ASSEMBLY LH (for Fold Down Seat Type)  (See INSTALLATION )
  61. INSTALL REAR SIDE SEAT BACK ASSEMBLY RH (for Fold Down Seat Type)

    HINT:

    Use the same procedure for the RH side and the LH side.

  62. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Fold Down Seat Type)  (See INSTALLATION )
  63. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Fold Down Seat Type)  (See INSTALLATION )
  64. INSTALL REAR SEAT BACK ASSEMBLY (for Fixed Seat Type)  (See INSTALLATION )
  65. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
  66. INSTALL REAR SEAT HEADREST ASSEMBLY
  67. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
  68. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)  (See INSTALLATION )
  69. INSTALL INNER SEAT TRACK BRACKET COVER RH (for Power Seat)  (See INSTALLATION )
  70. INSTALL SEAT TRACK COVER LH (for Power Seat)  (See INSTALLATION )
  71. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
  72. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)  (See INSTALLATION )
  73. INSTALL INNER SEAT TRACK BRACKET COVER LH (for Manual Seat)  (See INSTALLATION )
  74. INSTALL SEAT TRACK COVER LH (for Manual Seat)  (See INSTALLATION )
  75. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  76. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)

    HINT:

    Use the same procedure for the RH side and the LH side.

  77. INSTALL INNER SEAT TRACK BRACKET COVER LH (for Power Seat)

    HINT:

    Use the same procedure for the RH side and the LH side.

  78. INSTALL SEAT TRACK COVER RH (for Power Seat)

    HINT:

    Use the same procedure for the RH side and the LH side.

  79. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
  80. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)

    HINT:

    Use the same procedure for the RH side and the LH side.

  81. INSTALL INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)

    HINT:

    Use the same procedure for the RH side and the LH side.

  82. INSTALL SEAT TRACK COVER RH (for Manual Seat)

    HINT:

    Use the same procedure for the RH side and the LH side.

  83. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  84. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)
  85. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)

    (See INITIALIZATION )

  86. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

  87. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)  (See INSTALLATION )
  88. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
scientia non olet · About LEMON Manuals
