Instrument Panel Safety Pad: Installation

  1. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Engage the 3 pins.
    2. Install the 7 bolts < A >, < E >, < F > and the nut < J >.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf) (Bolt < A >)

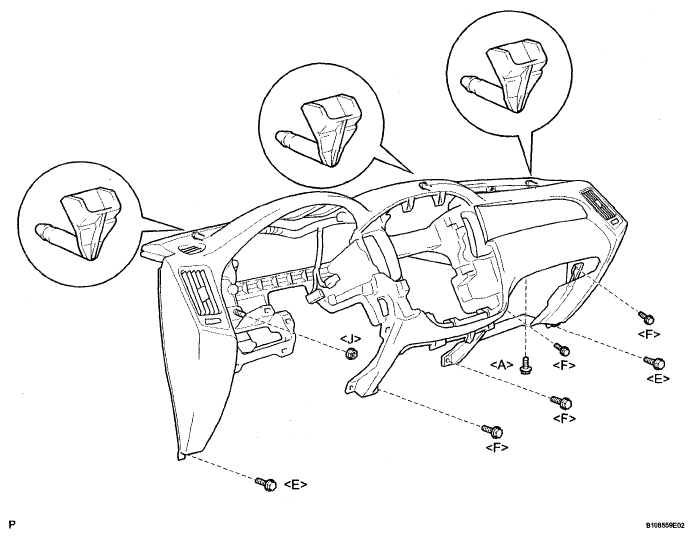

      Fig 1: Identifying Bolts And Nut Of Instrument Panel Sub-Assembly
      G05205237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect each of the clamps and the connectors, and install the bolt.

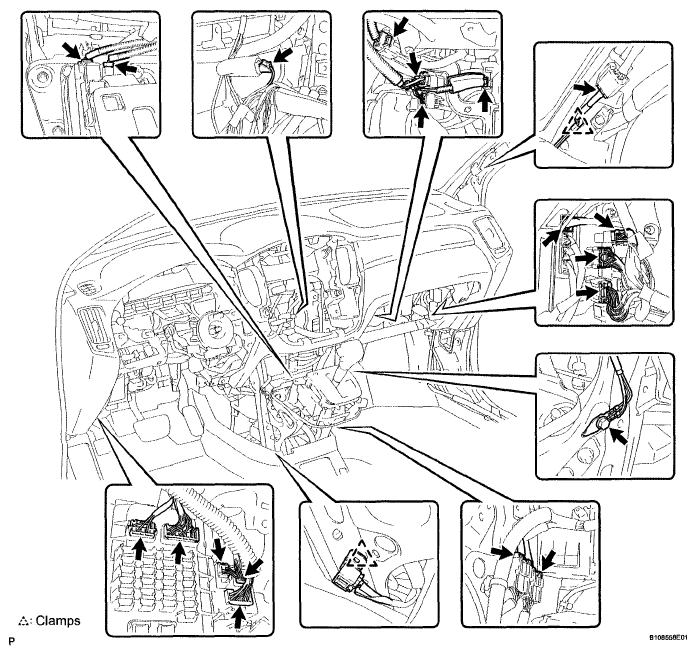

      Fig 2: Locating Bolts, Clamps And Connectors Of Instrument Panel Sub-Assembly
      G05205238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Engage the 2 clips and install the cowl side trim sub-assembly LH.
      Fig 3: Identifying Cowl Side Trim Sub-Assembly Clips LH
      G05205200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  4. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  5. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  6. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  7. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  8. CONNECT FRONT PASSENGER AIRBAG CONNECTOR  (See INSTALLATION )
  9. INSTALL INSTRUMENT PANEL NO. 2 FINISH PANEL LOWER
    1. Install the 7 screws < G > and the instrument panel No. 2 finish panel lower.
      Fig 4: Identifying Instrument Panel No. 2 Finish Panel Lower With Screws
      G05243995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Install the 2 clips.
      Fig 5: Identifying Glove Compartment Door Assembly Clips
      G05243994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the glove compartment door damper clip and the glove compartment door assembly.
      Fig 6: Identifying Glove Compartment Door Damper Clip
      G05205197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL CONSOLE BOX ASSEMBLY
    1. Cover the parts indicated in the illustration with protective tape to prevent them from being damaged.
    2. Engage the 2 clips and install the console box assembly.
      NOTE: Do not damage the instrument panel safety pad when installing the console box assembly.
      Fig 7: Identifying Console Box Assembly With Screws, Console Cap And Bolts
      G05205196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the attached protective tape from the console box assembly.
    4. Install the 2 bolts < D >.
    5. Install the 2 console caps and the 2 screws < l >.
    6. Install the 3 screws < G >.
  12. INSTALL FRONT SEAT ARMREST ASSEMBLY CENTER
    1. Install the bolt and front seat armrest assembly center.

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

    2. Engage the 2 claws and install the seat armrest cover LH.
  13. INSTALL FLOOR CARPET COVER CENTER LH
    1. Install the 2 clips and the floor carpet cover center LH.
  14. INSTALL FLOOR CARPET COVER CENTER RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
    1. Connect the connectors.
    2. Engage the 4 clips and the 2 claws, and install the instrument cluster finish panel assembly center.
      Fig 8: Identifying Clips And Claws Of Instrument Cluster Finish Panel Assembly Center
      G05205193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL INSTRUMENT PANEL INSERT SUB-ASSEMBLY LOWER LH
    1. Install the 3 bolts < C > and the instrument panel insert sub-assembly lower LH.
      Fig 9: Installing Bolts And Instrument Panel Insert Sub-Assembly Lower LH
      G05243988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER
    1. Connect the hood lock control cable.
    2. Connect the connectors.
    3. Engage the 3 clips.
    4. Install the 2 bolts < B > and the instrument panel finish panel sub-assembly lower.
      Fig 10: Identifying Clips, Bolt And Instrument Panel Finish Panel Sub-Assembly Lower
      G05205246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Install the 3 screws < G > and combination meter assembly.
      Fig 11: Identifying Combination Meter Assembly Screws And Connector
      G05243986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Engage the claw.
    2. Install the 4 screws < G > and the instrument cluster finish panel garnish.
      Fig 12: Identifying Instrument Cluster Finish Panel Garnish, Screws And Claw
      G05205189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Engage the 5 clips and install the instrument cluster finish panel assembly.
      Fig 13: Identifying Instrument Cluster Finish Panel Assembly With Clips
      G05205188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER
    1. Connect the connectors.
    2. Engage the 5 clips and install the instrument panel finish panel lower.
  22. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
  23. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Navigation System)
    Fig 14: Identifying Instrument Panel Finish Panel Lower With Clips
    G05205187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
    1. Engage the 8 clips and install the instrument cluster finish panel sub-assembly center.
      Fig 15: Identifying Instrument Cluster Finish Panel Sub-Assembly Center With Clips
      G05205251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL WIPER SWITCH  (See INSTALLATION )
  26. INSTALL HEADLIGHT DIMMER SWITCH  (See INSTALLATION )
  27. INSTALL STEERING COLUMN COVER UPPER  (See INSTALLATION )
  28. INSTALL STEERING COLUMN COVER LOWER  (See INSTALLATION )
  29. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  30. INSTALL STEERING PAD  (See INSTALLATION )
  31. INSTALL STEERING WHEEL NO. 3 COVER LOWER  (See INSTALLATION )
  32. INSTALL STEERING WHEEL NO. 2 COVER LOWER  (See INSTALLATION )
  33. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  34. PERFORM INITIALIZATION
    NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
  35. INSPECT STEERING PAD  (See ON-VEHICLE INSPECTION )
  36. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
