Steering Column Assembly: Installation

  1. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
  2. INSTALL STEERING COLUMN ASSEMBLY
    1. Install the steering column assembly with the 2 bolts and 2 nuts.

      Torque: 21 N*m (210 kgf*cm, 15 ft.*lbf)

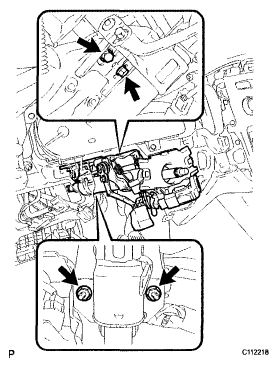

      Fig 1: Locating Steering Column Assembly Bolts And Nuts
      G05203037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connectors to the steering column assembly.
    3. Install the wire harness clamps to the steering column assembly.
  3. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align matchmarks on the steering intermediate shaft assembly and the power steering link assembly.
      Fig 2: Identifying Matchmarks On Steering Intermediate Shaft Assembly
      G05203036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

      Fig 3: Locating Bolt
      G05203068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the clamp to the steering column hole shield and tighten the bolt.
      Fig 4: Installing Clamp To Steering Column Hole Shield
      G05203069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL SPIRAL CABLE  (See REMOVAL )
  5. INSTALL WIPER SWITCH
  6. INSTALL HEADLIGHT DIMMER SWITCH
  7. INSTALL STEERING COLUMN COVER UPPER
    1. Engage the claw to install the steering column cover upper.
      Fig 5: Installing Steering Column Cover Upper
      G05203033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL STEERING COLUMN COVER LOWER
    1. Engage the 2 claws to install the steering column cover lower.
    2. Fig 6: Installing Steering Column Cover Lower
      G05203032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 3 screws.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  9. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  (See INSTALLATION )
  10. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER  (See INSTALLATION )
  11. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER  (See INSTALLATION )
  12. ADJUST SPIRAL CABLE  (See INSTALLATION )
  13. INSTALL STEERING WHEEL ASSEMBLY
    1. Align the matchmarks on the steering wheel assembly and steering main shaft assembly.
    2. Install the steering wheel assembly set nut.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

  14. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  15. INSTALL STEERING PAD  (See INSTALLATION )
  16. INSTALL STEERING WHEEL COVER LOWER NO.3
  17. INSTALL STEERING WHEEL COVER LOWER NO.2
  18. INSTALL INSTRUMENT PANEL INSERT SUB-ASSEMBLY LOWER LH  (See INSTALLATION )
  19. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER  (See INSTALLATION )
  20. INSTALL FRONT WHEEL LH

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  22. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

  23. PERFORM INITIALIZATION
    1. Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
