ROOF HEADLINING (w/ Rear No. 2 Seat): Installation

1. Attach the roof wire, radio antenna cord and washer hose along the adhesive part.

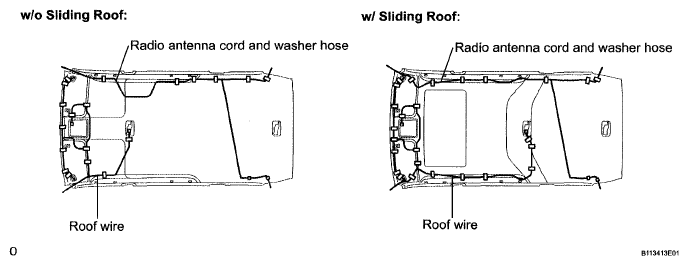

   Fig 1: Identifying Roof Wire, Radio Antenna Cord And Washer Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Attach the roof wire, radio antenna cord and washer hose securely.
2. Be careful that dirt or foreign objects do not stick to the adhesive part when Identifying the peeling paper.

1. Place the roof headlining to the vehicle from the back door side.
2. Install the roof headlining assembly and engage the 4 clips.
   Fig 2: Identifying Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the sunroof opening trim molding, (w/ sliding roof)
4. Connect the sliding roof drive gear connector, (w/ sliding roof)
5. Connect the washer hose. Connect the radio antenna cord connector and engage the clamps to the rear quarter pillar RH.
6. Connect the roof wire connector and engage the clamps to the front pillar LH.
7. Connect the washer hose. Connect the radio antenna cord connector and engage the clamps to the front pillar RH.
8. Install the radio antenna cord connector bolt to the front pillar RH.

1. Connect the connector.
2. Install the visor assembly with the 2 screws.
3. Engage the 3 claws and install the visor bracket cover.
   Fig 3: Identifying Visor Bracket Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Roof Console Box Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector.
2. Engage the 2 clips, and install the roof console box assembly.
3. Install the 2 screws.

1. Disconnect the connector.
2. Engage the 2 claws and 2 springs, install the room light assembly No. 1.
3. Engage the 4 claws and install the lens cover.

1. Install the assist grip sub-assembly with the 2 screws.
   Fig 5: Identifying Assist Grip Sub-Assembly With Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the assist grip covers.
   Fig 6: Engaging Assist Grip Covers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the other 3 assist grips.

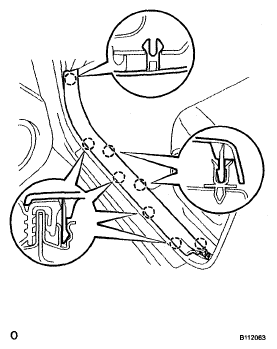

Fig 7: Identifying Roof Side Garnish Assembly Inner

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 5 clips and install the roof side garnish assembly inner.

1. Install the rear No. 2 seat belt assembly outer with the bolt.
   Fig 8: Identifying Rear No. 2 Seat Belt Assembly Outer With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

2. Engage 2 claws, install the cover and engage the 2 claws.

1. Engage the 5 claws and 3 clips, and install the roof side rail garnish sub-assembly.

1. Engage the 4 claws and install the rear No. 1 seat belt assembly.
2. Engage the 3 clips and install the quarter pillar garnish.

Fig 11: Identifying Deck Trim Side Panel Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage 5 clips and install the deck trim side panel assembly.
2. Install the 5 bolt and 4 deck side trim covers.
   Fig 12: Identifying Deck Side Trim Covers & Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear combination light service cover.
4. Engage the 2 clips.

1. Install the 2 rope hooks with the 2 bolts.

   Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

   HINT:

   Use the same procedure to install the other side.

1. Install the rear No. 1 seat belt assembly outer with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Fig 13: Identifying Deck Side Trim Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 4 claws and install the deck side trim cover.
2. Install the bolt and deck side trim cover front.

Fig 14: Identifying Center Pillar Garnish

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the clip and install the center pillar garnish.
2. Install the 2 screws.

1. Install the front seat outer belt assembly with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

2. Engage the 4 claws and install the seat belt anchor cover cap.
   Fig 15: Identifying Seat Belt Anchor Cover Cap

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Identifying Center Pillar Garnish Lower

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage 5 clips and 2 claws, and install the center pillar garnish lower.

Fig 17: Identifying Front Pillar Garnish

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new clip (A) on the front pillar garnish.
2. Engage the 2 claws and 2 clips, and install the front pillar garnish.

Fig 18: Identifying Rear Door Scuff Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 4 claws and 2 clips, and install the rear door scuff plate.

Fig 19: Identifying Front Door Scuff Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 8 claws and install the front door scuff plate.

Fig 20: Identifying Deck Side Trim Box

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the deck side trim box and 2 clips.

1. Install the deck side trim box and clip.

1. Install the jack carrier assembly, jack assembly and jack carrier support.

Fig 21: Identifying Rear Seat Reclining Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the rear seat reclining cover No. 2.
2. Install the clip.

Fig 22: Identifying Rear Floor Finish Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 6 clips and install the rear floor finish plate.
2. Install 2 clips.

Fig 23: Identifying Deck Floor Box Rear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the deck floor box rear with the 2 clips.

1. Install the deck board sub-assembly with the 2 bolt.
2. Engage the 5 clips.

(See INITIALIZATION )
