Parking Brake Pedal: Installation

  1. INSTALL PARKING BRAKE PEDAL
    1. Install the parking brake pedal with the 3 nuts.

      Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

      Fig 1: Installing Parking Brake Pedal
      G05202971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector and clamp.
    3. Install the parking brake No.1 cable assembly to the body with the 2 nuts and 2 bolts.

      Torque: Bolt

      8.5 N*m (87 kgf*cm, 75 in.*lbf)

      Nut

      6.0 N*m (61 kgf*cm, 53 in.*lbf)

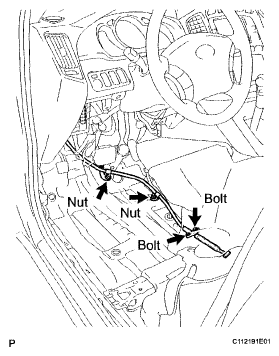

      Fig 2: Installing Parking Brake No 1 Cable Assembly To Body
      G05202979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the parking brake equalizer to the parking brake No.1 cable assembly.
      Fig 3: Installing Parking Brake Equalizer
      G05202969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Slide the rubber boot back as shown in the illustration.
      Fig 4: Sliding Rubber Boot
      G05202981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the parking brake No.2 and No.3 cable assemblies to the parking brake equalizer.
      Fig 5: Locating Parking Brake Pedal Bolts
      G05202967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the parking brake No.2 and No.3 cable assemblies with the 2 bolts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  2. INSTALL FLOOR FOOTREST
  3. INSTALL SKID CONTROL ECU  (See INSTALLATION )
  4. INSTALL FLOOR CARPET COVER CENTER  (See INSTALLATION )
  5. INSTALL INSTRUMENT PANEL INSERT SUB-ASSEMBLY LOWER  (See INSTALLATION )
  6. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER  (See INSTALLATION )
  7. INSTALL COWL SIDE TRIM SUB-ASSEMBLY  (See INSTALLATION )
  8. INSTALL FRONT DOOR SCUFF PLATE

    For w/ Rear No.2 Seat (See INSTALLATION )

    For w/o Rear No.2 Seat (See INSTALLATION )

  9. INSTALL FRONT SEAT ASSEMBLY

    For Manual Seat of w/o Front Seat Side Airbag (See INSTALLATION )

    For Manual Seat of w/ Front Seat Side Airbag (See INSTALLATION )

    For Power Seat of w/o Front Seat Side Airbag (See INSTALLATION )

    For Power Seat of w/ Front Seat Side Airbag (See INSTALLATION )

  10. INSTALL SEAT TRACK COVER RH
  11. INSTALL SEAT TRACK COVER LH
  12. INSTALL SEAT TRACK BRACKET COVER INNER FRONT LH
  13. INSTALL SEAT TRACK BRACKET COVER OUTER FRONT LH
  14. REMOVE REAR WHEEL
  15. ADJUST PARKING BRAKE SHOE CLEARANCE (See  ADJUSTMENT   )
  16. INSTALL REAR WHEEL

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  17. INSPECT PARKING BRAKE PEDAL TRAVEL (See  ADJUSTMENT   )
  18. ADJUST PARKING BRAKE PEDAL TRAVEL (See  ADJUSTMENT   )
  19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  20. PERFORM INITIALIZATION

    (See INITIALIZATION )

  21. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

  22. INSPECT SLIDE ADJUSTER LOCK (FOR MANUAL SEAT)  (See INSTALLATION )
  23. INSPECT POWER SEAT OPERATION (FOR POWER SEAT)  (See ON-VEHICLE INSPECTION )
