Manual Transaxle Unit: Removal
- REMOVE HOOD NOTE: At the time of installation, please refer to the following item. Adjust the hood (See ADJUSTMENT ).
- REMOVE WIPER ARM (See
REMOVAL
) NOTE: At the time of installation, please refer to the following item. Adjust the installation position of the wiper arms (See ADJUSTMENT ).
- REMOVE RH AND LH COWL TOP VENTILATOR LOUVERS (See REMOVAL )

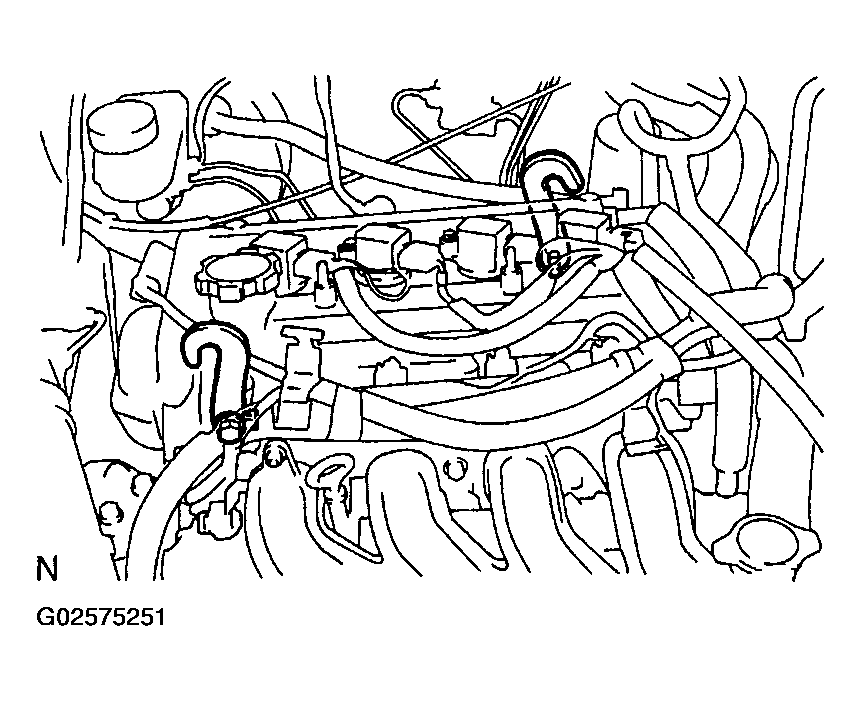

- REMOVE NO. 2 CYLINDER HEAD COVER
Remove the 4 nuts and No. 2 cylinder head cover.
Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
- REMOVE BATTERY AND AIR CLEANER CASE ASSEMBLY WITH AIR HOSE

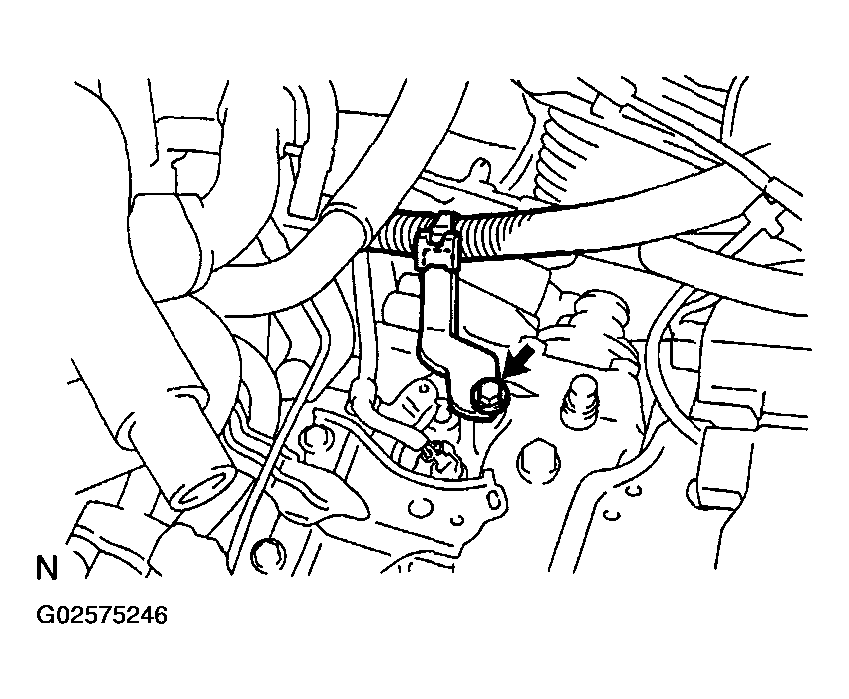

- DISCONNECT WIRE HARNESS FROM TRANSAXLE
Remove the set bolt of the wire harness clamp.
- DISCONNECT CONTROL CABLE
- Remove the 2 clips and washers.
- Remove the 2 clips and disconnect the control cables from the transaxle.

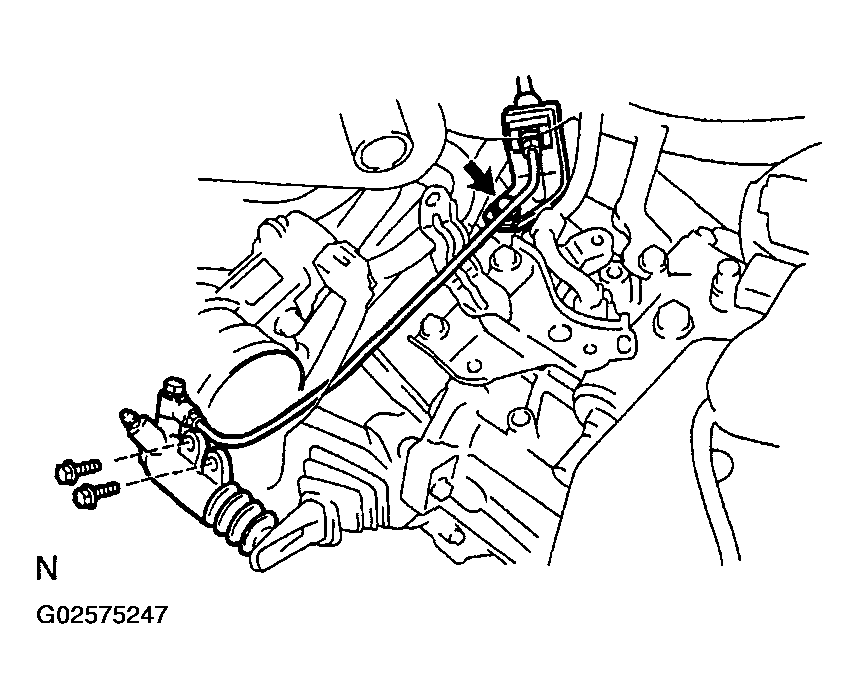

- DISCONNECT CLUTCH RELEASE CYLINDER
- Remove the set bolt of the clutch line.
Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)
- Remove the 2 set bolts of the clutch release cylinder.
Torque: 12 N.m (120 kgf.cm, 9 ft-lbf)
- Remove the set bolt of the clutch line.

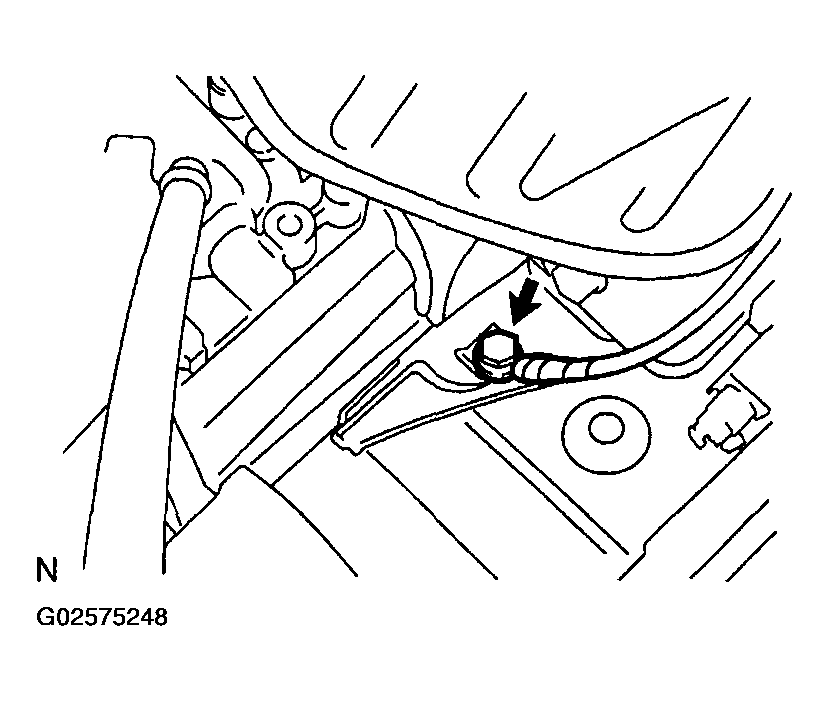

- DISCONNECT GROUND CABLE
Remove the set bolt of the ground cable from the engine left mounting bracket.
- DISCONNECT BACK-UP LIGHT SWITCH AND VEHICLE SPEED SENSOR CONNECTORS

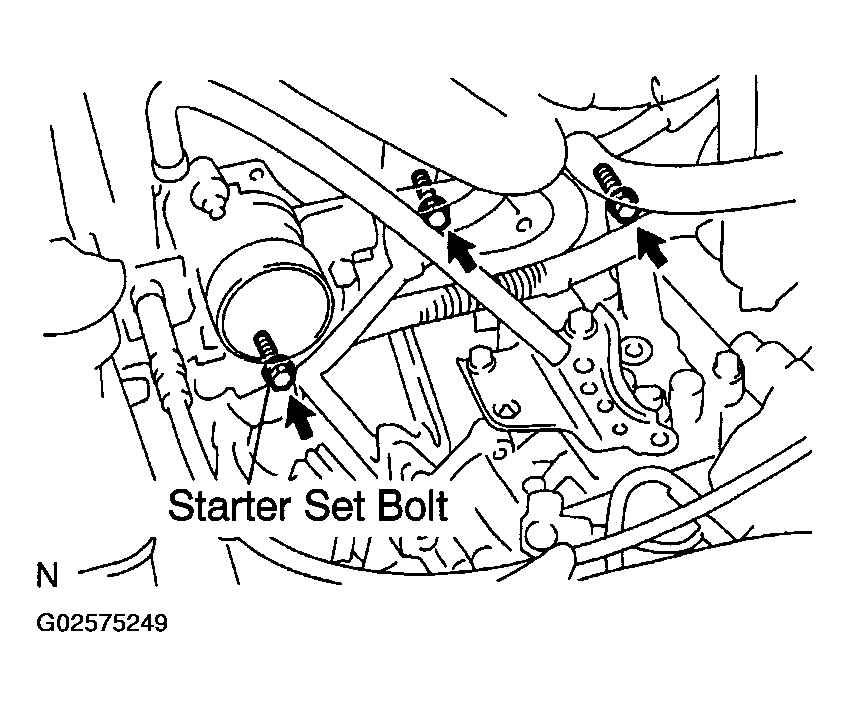

- REMOVE 2 TRANSAXLE UPPER SIDE MOUNTING BOLTS
Torque: 33 N.m (340 kgf.cm, 25 ft.lbf)
- REMOVE STARTER SET BOLT
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

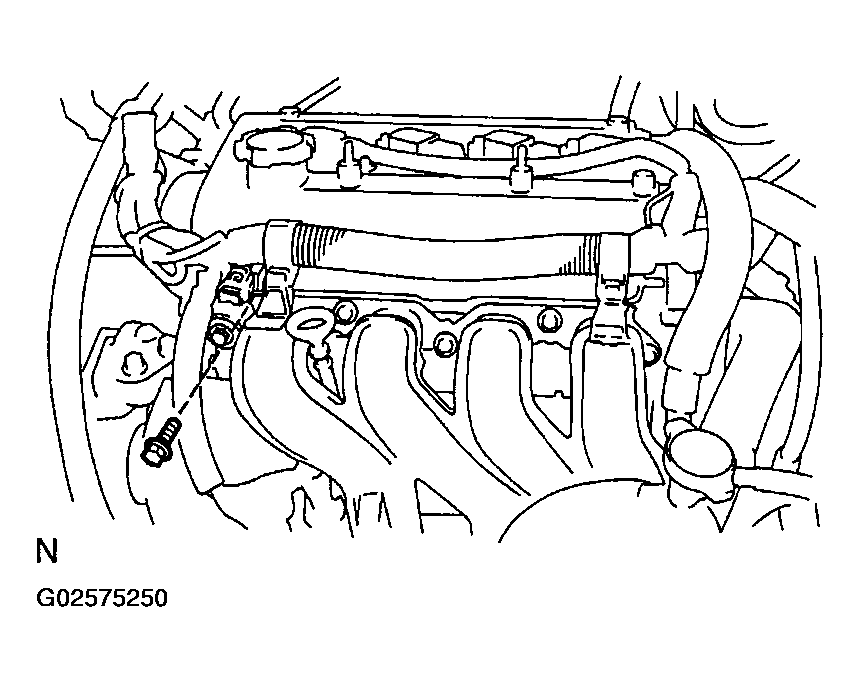

- ATTACH ENGINE SLING DEVICE TO ENGINE HANGER
- Remove the bolt.
- Install the 2 No. 1 engine hangers with the bolts in the correct direction.
Parts No.:
No. 1 engine hanger: 12281-21010
Bolt: 91642-81025
Torque: 40 N.m (400 kgf.cm, 29 ft.lbf)
- Attach the engine chain hoist to the engine hangers.
CAUTION: Do not attempt to hang the engine by hooking the chain to any other part. - RAISE VEHICLE CAUTION: Make sure that the vehicle is securely supported.
- REMOVE LH ENGINE UNDER COVER

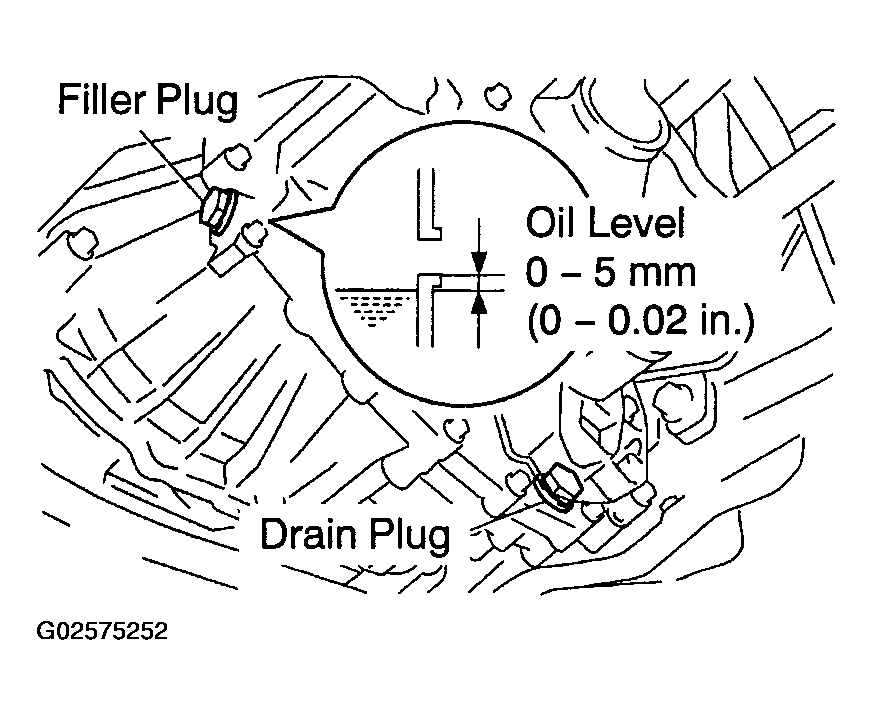

- DRAIN TRANSAXLE OIL
Oil grade: API GL-4 or GL-5
Viscosity: SAE 75 W-90
Capacity: 1.9 liters (2.0 US qts, 1.7 Imp. qts)
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
- REMOVE RH AND LH FRONT DRIVE SHAFTS (See REMOVAL )
- REMOVE SUSPENSION MEMBER
- Remove the 2 set nuts and bolt of the engine rear mounting insulator from the suspension member (See REMOVAL ).
- Disconnect the sliding yoke (See REMOVAL ).
- Power steering:
Disconnect the pressure feed and return tubes (See REMOVAL ).
- Power steering:
Disconnect the tube clamp (See REMOVAL ).
- Remove the suspension member (See REMOVAL ).
- JACK UP TRANSAXLE SLIGHTLY
Using a transmission jack, support the transaxle.

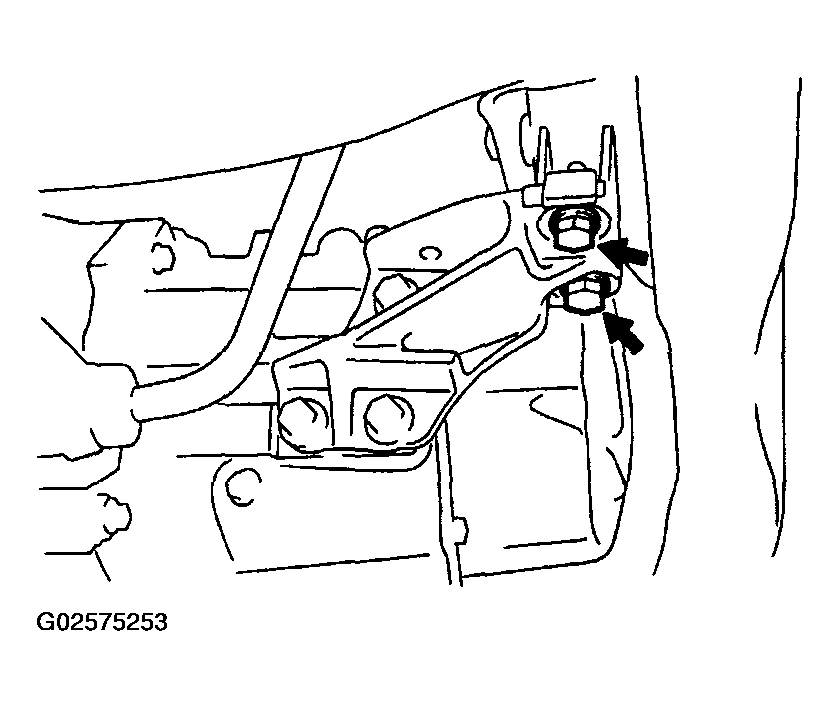

- DISCONNECT ENGINE LEFT MOUNTING BRACKET FROM ENGINE LEFT MOUNTING INSULATOR
Remove the 2 bolts.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

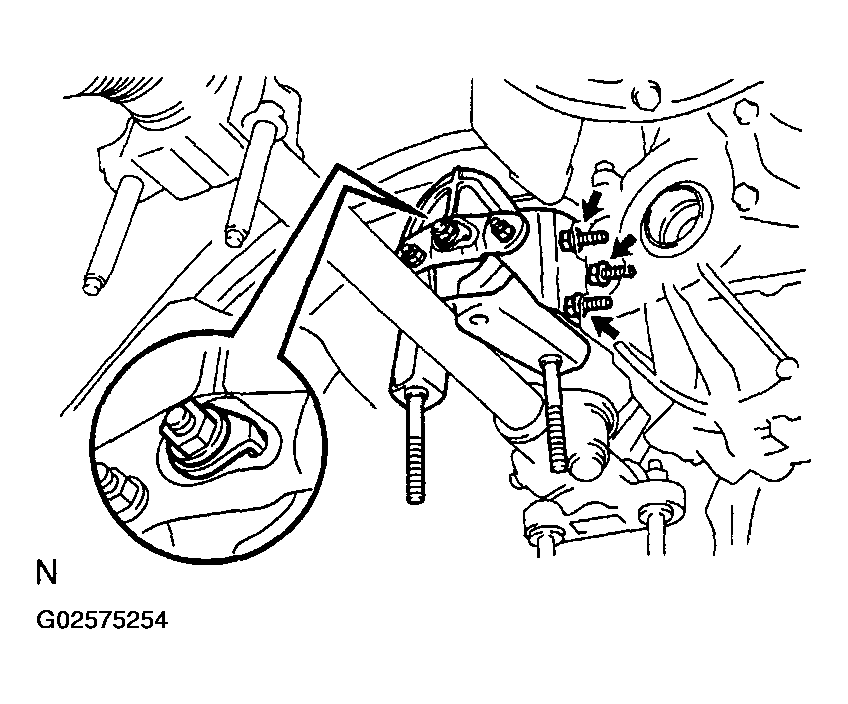

- REMOVE ENGINE REAR MOUNTING INSULATOR AND BRACKET
- Remove the bolt, nut and engine rear mounting insulator.
Torque: 64 N.m (650 kgf.cm, 47 ft.lbf)
- Remove the 3 bolts and engine rear mounting bracket.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
- Remove the bolt, nut and engine rear mounting insulator.

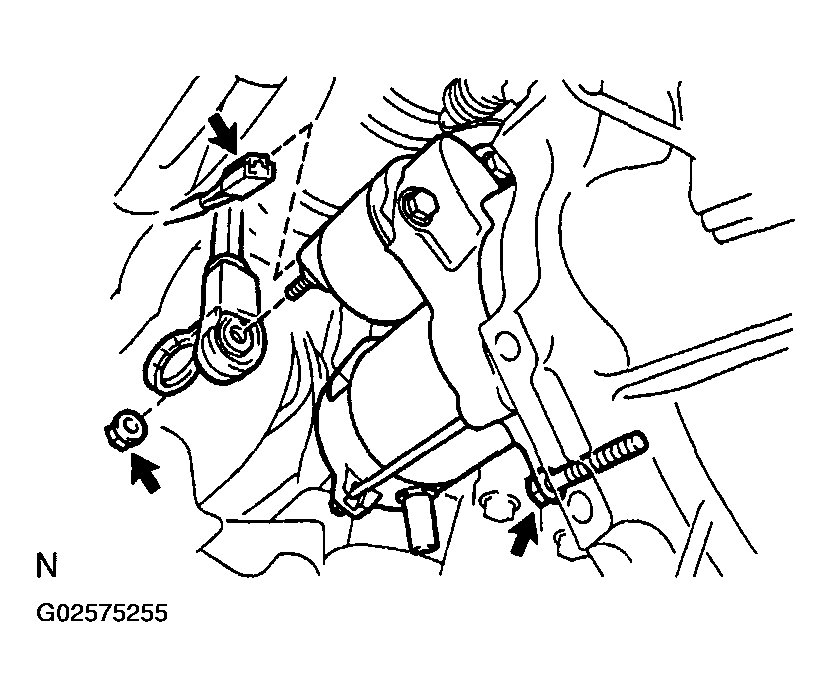

- REMOVE STARTER
- Remove the bolt, starter cover and starter.
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
- Disconnect the starter connector.
- Remove the nut and starter wire.
- Remove the bolt, starter cover and starter.

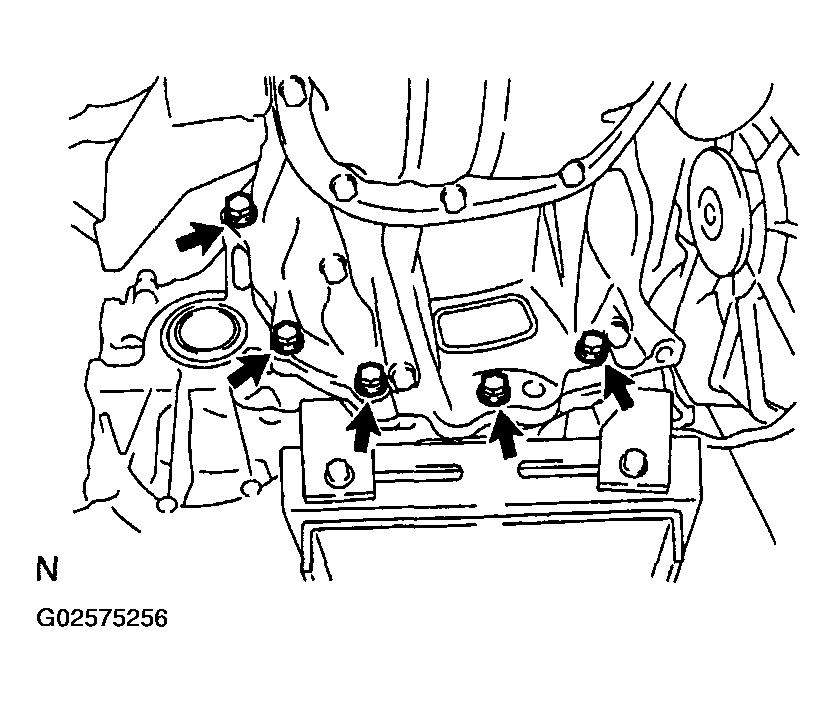

- REMOVE 5 TRANSAXLE LOWER SIDE MOUNTING BOLTS
Torque: 33 N.m (340 kgf.cm, 25 ft.lbf)
- REMOVE TRANSAXLE
Lower the engine left side and remove the transaxle from the engine.
NOTE: At the time of installation, please refer to the following items.- Align the input shaft with the clutch disc and install the transaxle to the engine.
- Temporarily tighten the transaxle mounting bolts.
