Front Drive Shaft: Removal

NOTE:
  • The hub bearing could be damaged if it is subjected to the vehicle weight, such as when moving the vehicle with the drive shaft removed.

    Therefore, if it is absolutely necessary to place the vehicle weight on the hub bearing, first support it with SST.

    SST 09608-16042 (09608-02021, 09608-02041)

    Fig 1: Identifying SST 09608-16042 (09608-02021, 09608-02041
    G02575491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • After disconnecting the drive shaft from the axle hub, work carefully so as not to damage the ABS speed sensor rotor serration on the drive shaft.
  1. REMOVE FRONT WHEEL
  2. DRAIN GEAR OIL (M/T) or ATF (A/T)
  3. REMOVE DRIVE SHAFT LOCK NUT
    1. Using SST and a hammer, unstake the staked part of the lock nut.

      SST 09930-00010

    2. While applying brakes, remove the lock nut.
  4. DISCONNECT STEERING KNUCKLE FROM LOWER SUSPENSION ARM
    1. Remove the clip and nut.
      Fig 2: Unstaking Staked Part Of Lock Nut Using SST And Hammer
      G02575492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, disconnect the steering knuckle.

      SST 09628-00011 (09628-00030, 09628-00040, 09628-00050)

  5. DISCONNECT TIE ROD END FROM STEERING KNUCKLE
    1. Remove the cotter pin and nut.

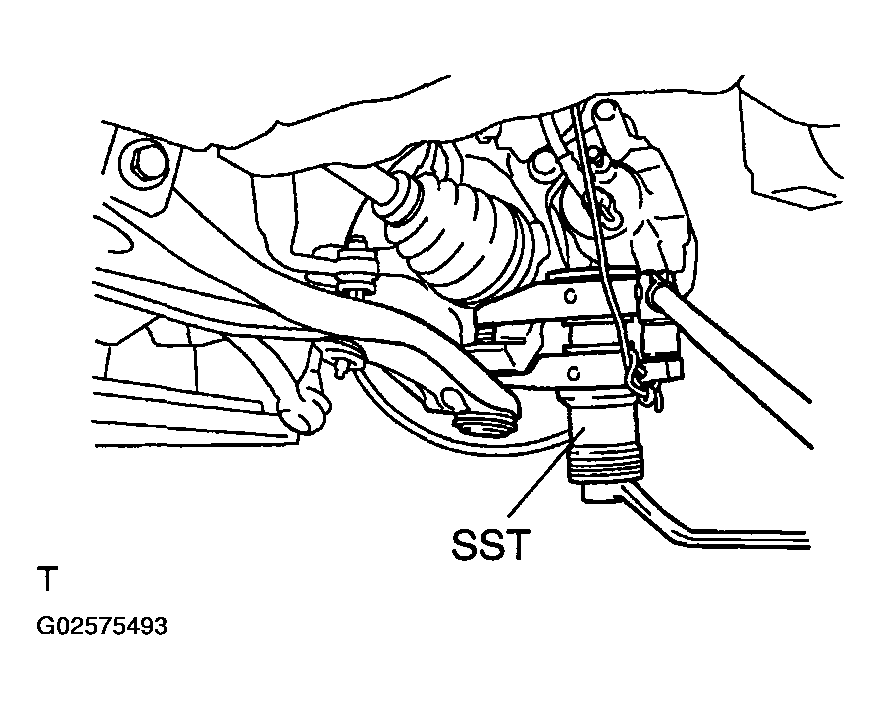

      Fig 3: Disconnecting Steering Knuckle Using SST
      G02575493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, disconnect the tie rod end from the steering knuckle.

      SST 09628-62011

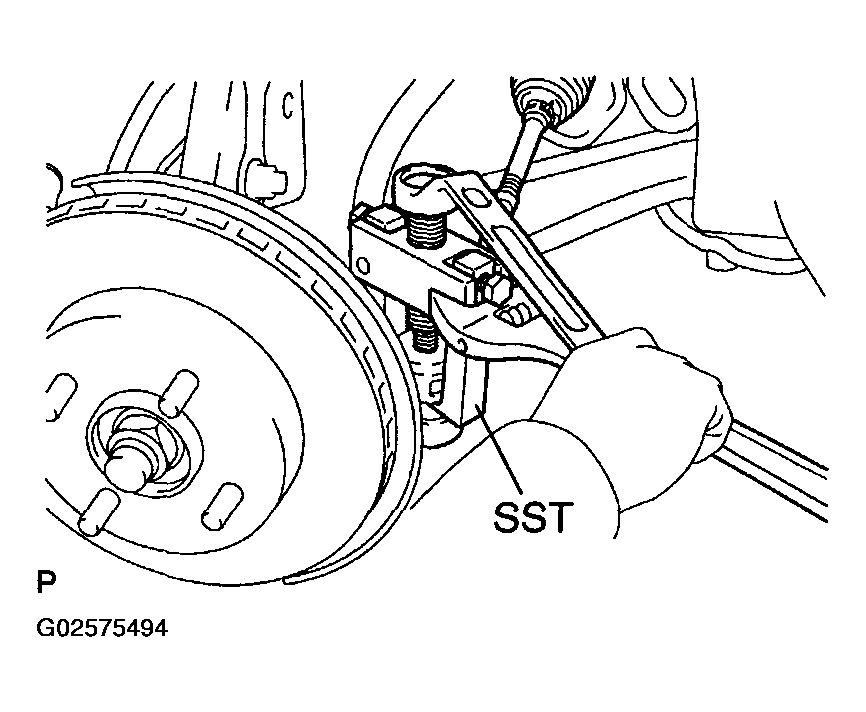

    Fig 4: Disconnecting Tie Rod End From Steering Knuckle Using SST
    G02575494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT DRIVE SHAFT FROM AXLE HUB

    Using a plastic hammer, disconnect the drive shaft from the axle hub.

    NOTE: Be careful not to damage the boot and ABS speed sensor rotor.
    Fig 5: Disconnecting Drive Shaft From Axle Hub Using Plastic Hammer
    G02575495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE DRIVE SHAFT

    Using SST, remove the drive shaft from the transaxle.

    SST 09520-01010, 09520-24010 (09520-32040)

    NOTE: Be careful not to damage the dust cover and oil seal.

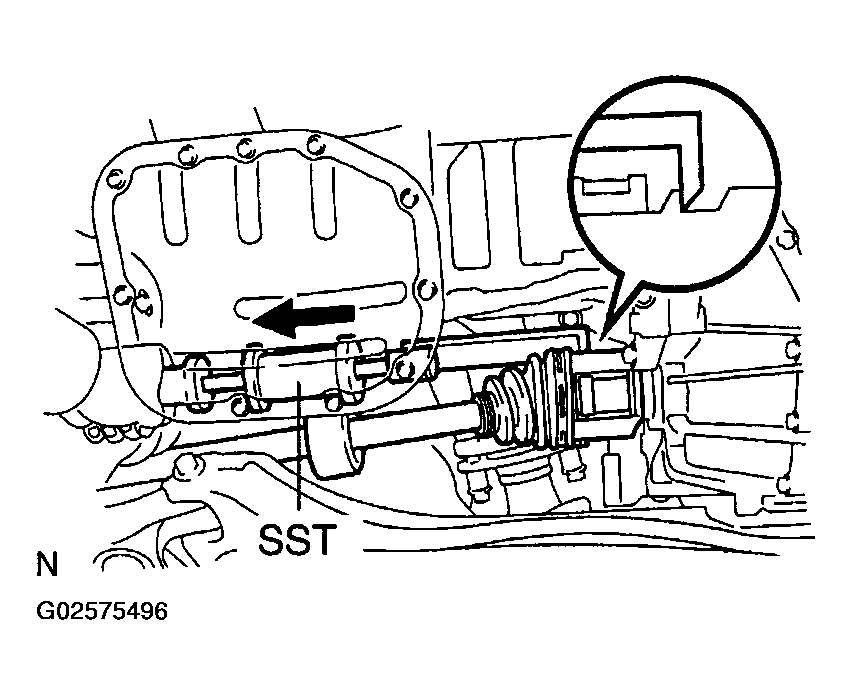

    Fig 6: Removing Drive Shaft From Transaxle Using SST
    G02575496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
