Exterior Body Panels: Hood: Adjustment

NOTE: The centering bolts are used to mount the hood hinge and hood lock. The hood and hood lock cannot be adjusted with the centering bolts on. Substitute the centering bolts with the standard bolts (with washer) when making adjustments.

Fig 1: Identifying Centering And Standard Bolts

ADJUST HOOD IN FORWARD/REARWARD AND LEFT/RIGHT DIRECTIONS
Adjust the hood by loosening the hood side hinge bolts.
1. Torque: 11.5 N.m (115 kgf.cm, 8 ft.lbf)
Fig 2: Adjusting Hood By Loosening Hood Side Hinge Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST FRONT EDGE OF HOOD IN VERTICAL DIRECTION
Adjust the hood by turning the cushions.

Fig 3: Adjusting Hood By Turning Cushions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST HOOD LOCK
Adjust the lock by loosening the 3 bolts.
1. Torque: 8.0 N.m (80 kgf.cm, 69 in.lbf)

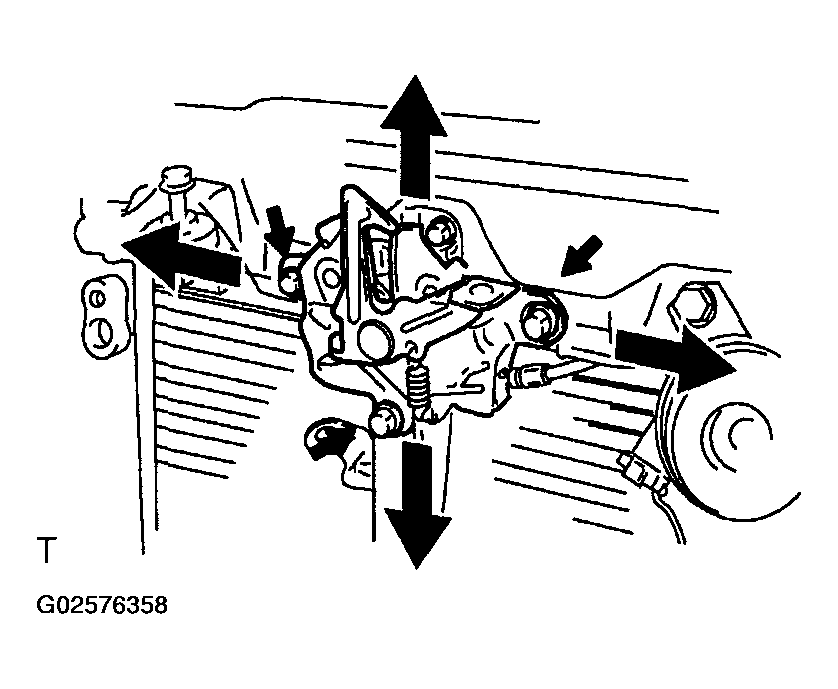

Fig 4: Adjusting Lock By Loosening Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
