Front Wiper System & Washer System: Removal

Remove the 2 wiper arm head caps, 2 nuts and 2 wiper arms.

1. Remove the hood to cowl top seal.
2. Remove the cowl top ventilator center.
3. Remove the 7 clips, then pull out the cowl top ventilator louver RH and LH.

1. Disconnect the connector.
2. Remove the 3 bolts and wiper motor assembly.

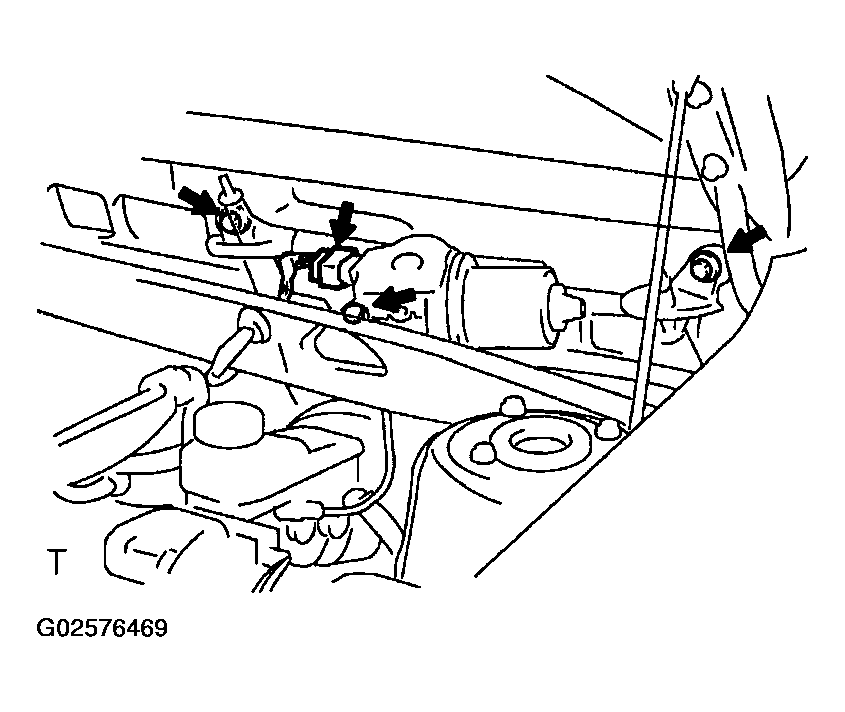

Fig 1: Removing Bolts Of Wiper Motor Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut and washer.
2. Place the matchmarks on the wiper link and motor.
3. Remove the 3 bolts and motor from the wiper link assembly.

1. Pull out the wiper motor wire harness with the grommet.
2. Remove the 9 bolts and outer front cowl top panel.

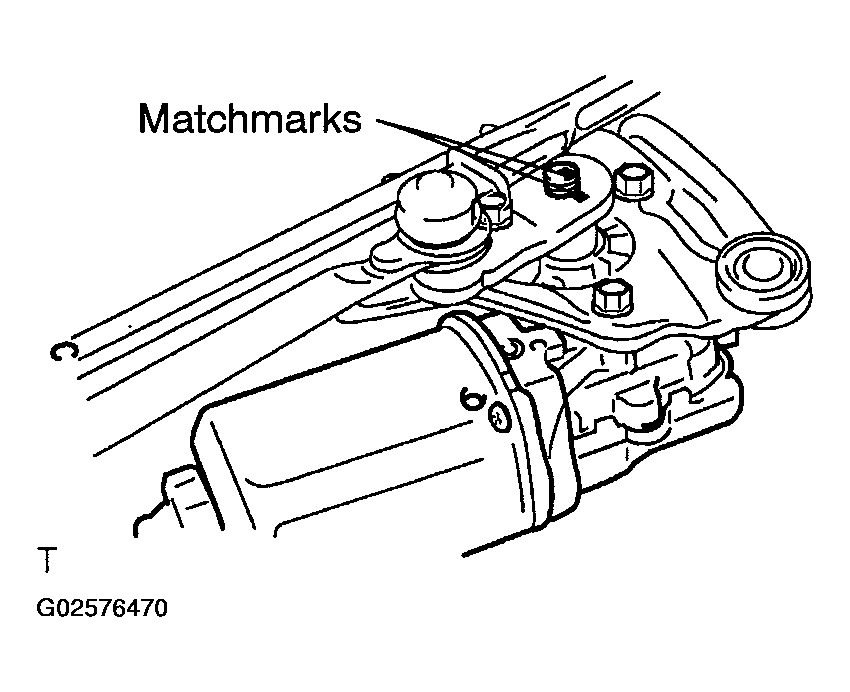

Fig 2: Locating Matchmarks On Wiper Link And Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the washer hose.
2. Using a screwdriver, remove the front washer nozzle from the hood.
   NOTE: Tape the screwdriver tip before use.
3. Remove the other using the same procedures described above.

Fig 3: Removing Front Washer Nozzle From Hood

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
