Front Stabilizer Bar: Removal

REMOVE FRONT WHEELS
REMOVE STABILIZER BAR LINKS
1. While holding the stabilizer bar link, remove the 2 nuts, 5 retainers, 4 cushions and the stabilizer bar link.
2. Employ the same manner described above to the other side.
DISCONNECT TIE ROD ENDS FROM STEERING KNUCKLES
1. Remove the cotter pin and nut.

  Fig 1: Removing 2 Nuts, 5 Retainers, 4 Cushions And Stabilizer Bar Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, disconnect the tie rod end from the steering knuckle.
  SST 09628-62011
3. Employ the same manner described above to the other side.
DISCONNECT LOWER SUSPENSION ARMS FROM STEERING KNUCKLES
1. Remove the clip and nut.

  Fig 2: Disconnecting Tie Rod End From Steering Knuckle Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, disconnect the steering knuckle.
  SST 09628-00011 (09628-00030, 09628-00040, 09628-00050)
3. Employ the same manner described above to the other side.
REMOVE ENGINE HOOD (See HOOD )

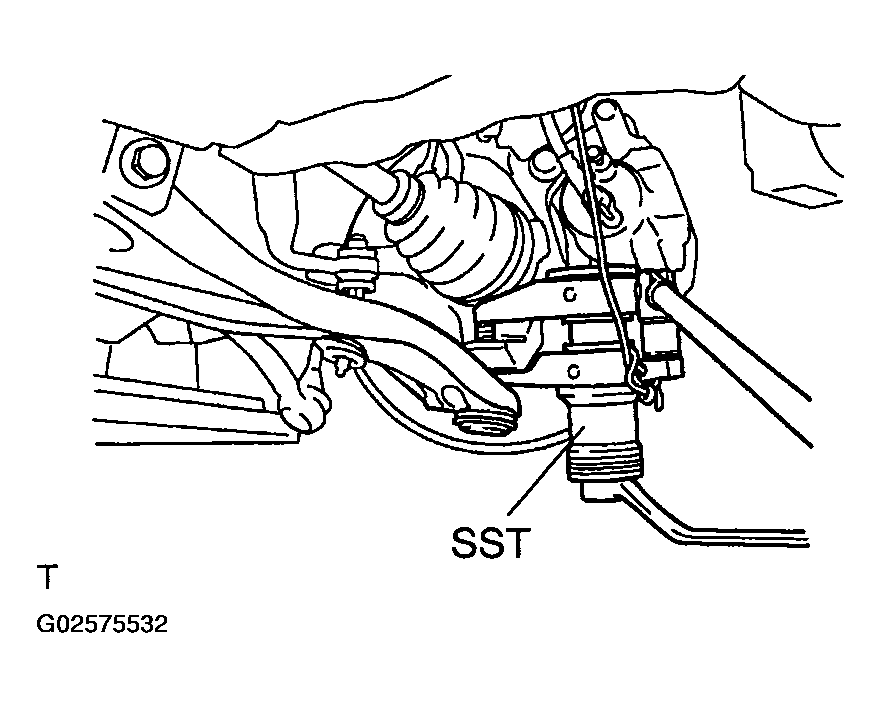

Fig 3: Disconnecting Steering Knuckle Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ATTACH ENGINE SLING DEVICE TO ENGINE HANGERS
1. Remove the bolt.

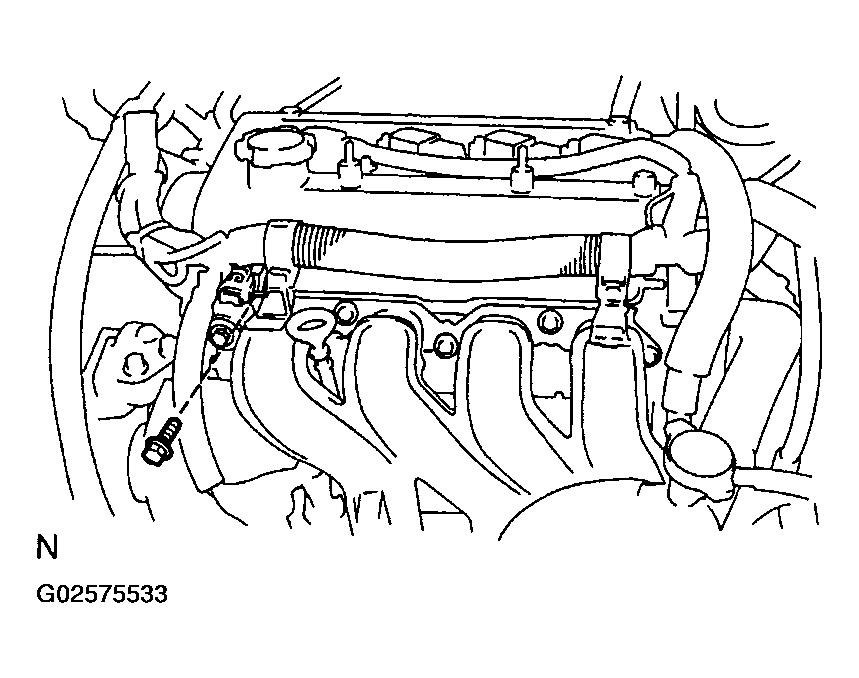

  Fig 4: Removing Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 No. 1 engine hangers with the bolts in the correct direction.
  Parts No.:

  No. 1 engine hanger: 12281-21010

  Bolt: 91511-60818

  Torque: 40 N.m (400 kgf.cm, 29 ft.lbf)
3. Attach the engine chain hoist to the engine hangers.

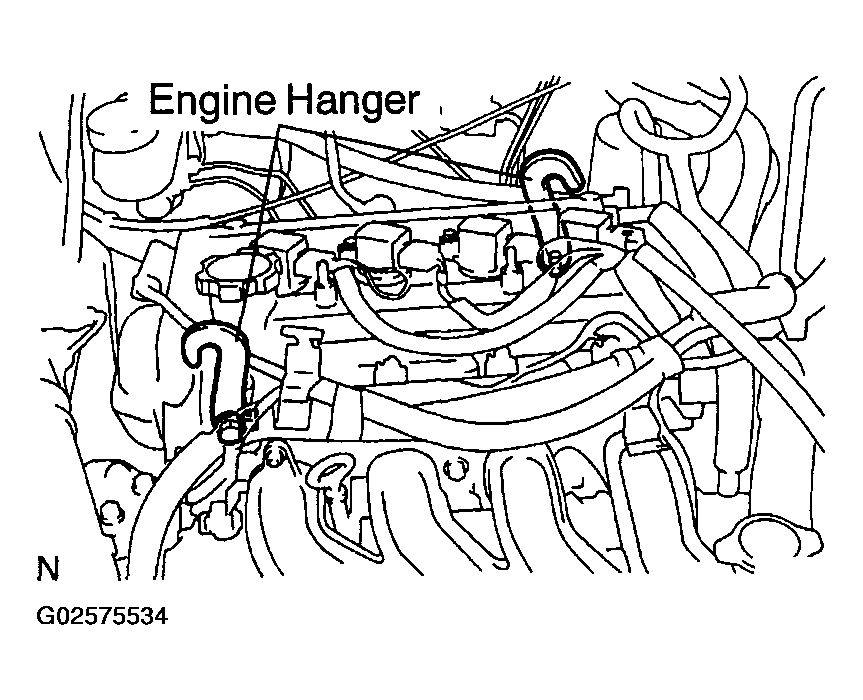

Fig 5: Installing 2 No. 1 Engine Hangers With Bolts In Correct Direction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAUTION: Do not attempt to hang the engine by hooking the chain to any other part.
DISCONNECT ENGINE REAR MOUNT
Remove the bolt and 2 nuts, and disconnect the engine rear mount.
DISCONNECT SLIDING YOKE (See REMOVAL )
Power steering:
DISCONNECT PRESSURE FEED AND RETURN TUBES (See REMOVAL )
Power steering:
DISCONNECT TUBE CLAMP

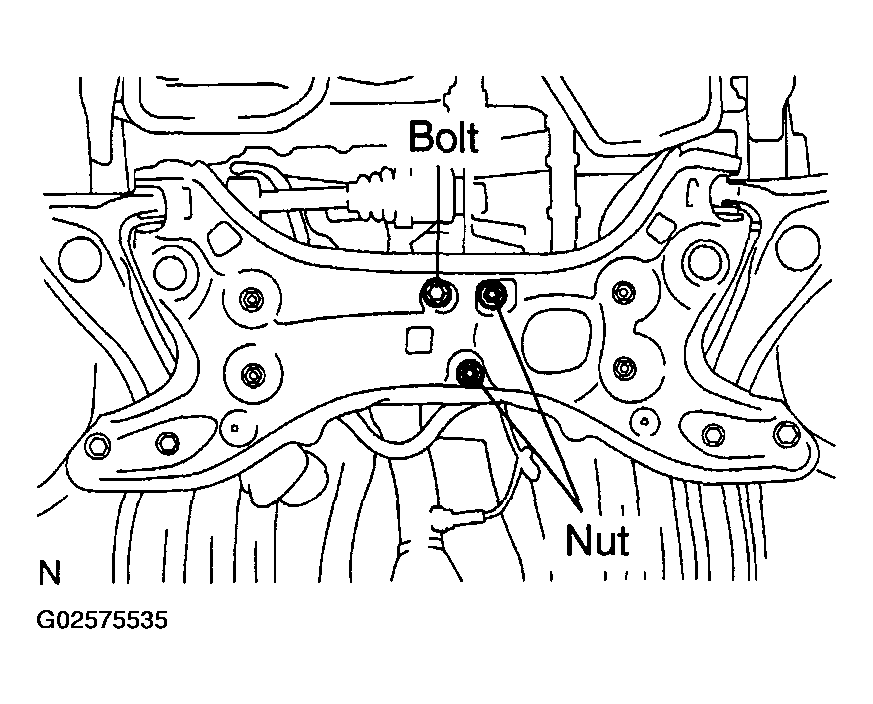

Fig 6: Removing Bolt And 2 Nuts And Disconnecting Engine Rear Mount
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt and disconnect the tube clamp.
LOWER SUSPENSION MEMBER
1. Support the suspension member with a transmission jack.
2. Remove the 4 bolts and lower the suspension member.

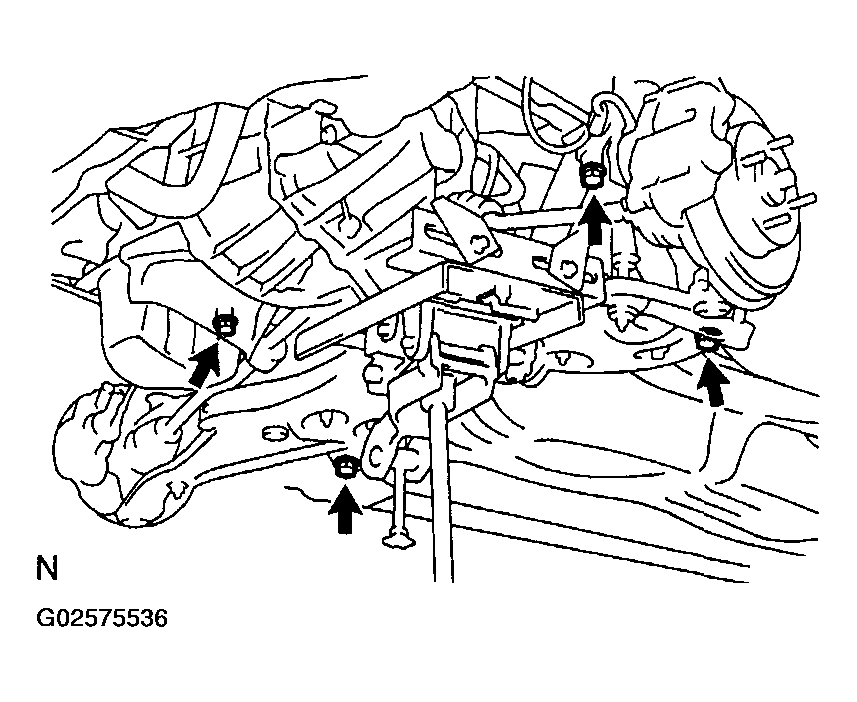

Fig 7: Removing 4 Bolts And Lower Suspension Member
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STABILIZER BAR
Remove the 4 bolts, 2 brackets, bushings and stabilizer bar.

Fig 8: Removing 4 Bolts, 2 Brackets, Bushings And Stabilizer Bar
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
