Oil Pump Seal (3MZ-FE): Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE FRONT FENDER APRON SEAL RH
  3. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1 (See  REPLACEMENT   )
  4. REMOVE VANE PUMP V BELT (See  REPLACEMENT   )
  5. REMOVE ENGINE MOVING CONTROL ROD (See  REPLACEMENT   )
  6. REMOVE ENGINE MOUNTING STAY NO. 2 RH (See  REPLACEMENT   )
  7. REMOVE GENERATOR BRACKET NO. 2 (See  REPLACEMENT   )
  8. REMOVE CRANKSHAFT PULLEY (See  REPLACEMENT   )

    SST 09213-54015 (91651-60855), 09330-00021, 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05031)

  9. REMOVE TIMING BELT NO. 1 COVER
  10. REMOVE TIMING BELT NO. 2 COVER (See  REPLACEMENT   )
  11. REMOVE ENGINE MOUNTING BRACKET RH (See  REPLACEMENT   )
  12. REMOVE TIMING BELT GUIDE NO. 2
  13. REMOVE TIMING BELT (See  REPLACEMENT   )
  14. REMOVE CRANKSHAFT TIMING PULLEY
    1. Remove the bolt and timing belt plate.

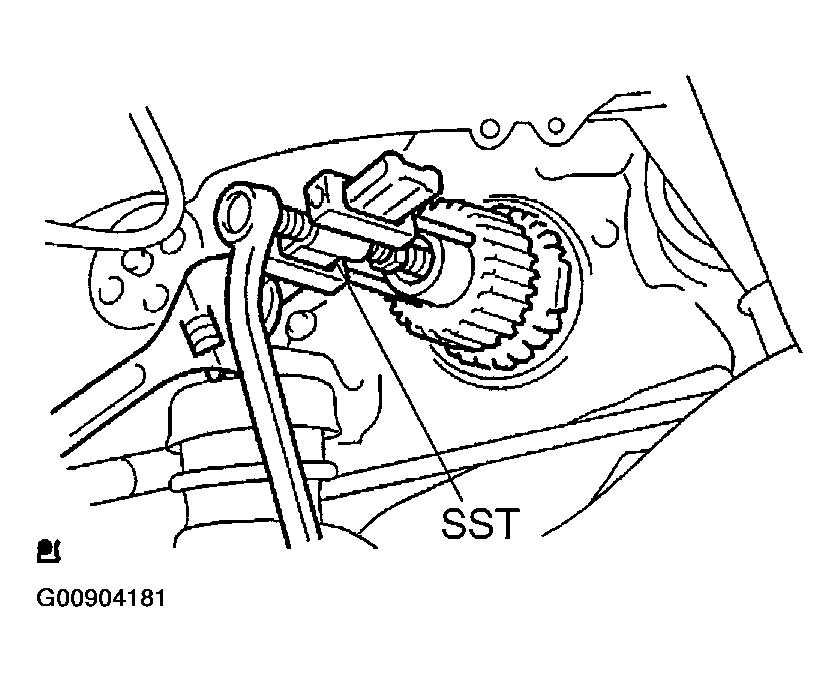

      Fig 1: Removing Crankshaft Timing Pulley Using SST
      G00904181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the pulley bolt to the crankshaft.
    3. Using SST, remove the crankshaft timing pulley.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05011)

      NOTE:
      • Do not scratch the sensor part of the crankshaft timing pulley.
      • Before using SST, apply lubricating oil to the threads and tip of the center bolt 150.
  15. REMOVE OIL PUMP SEAL
    1. Using a knife, cut off the oil seal lip.
    2. Using a screwdriver with the tip wrapped in tape, pry out the oil seal.
      NOTE: After removing, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.

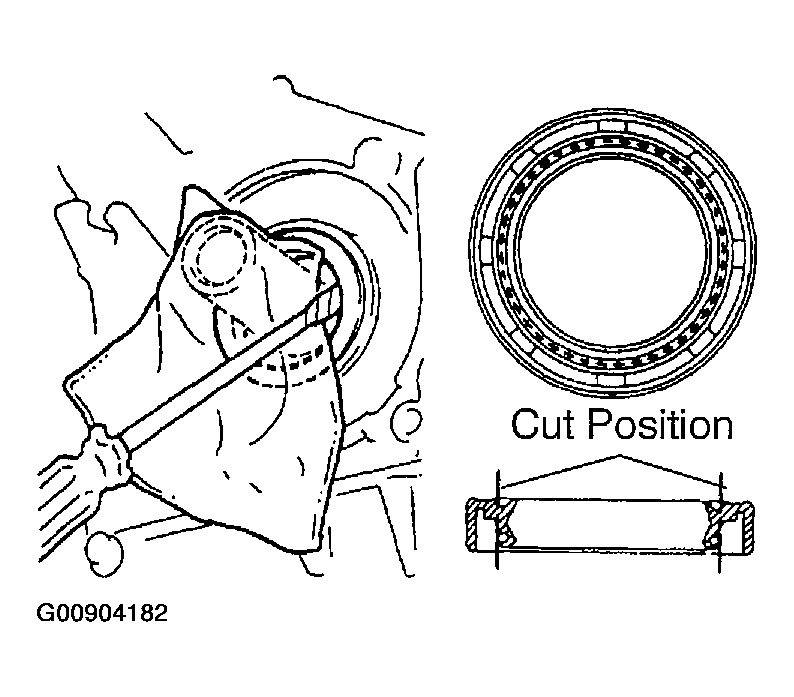

      Fig 2: Prying Out Oil Seal Using Screwdriver
      G00904182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL OIL PUMP SEAL
    1. Apply multi-purpose grease to a new oil seal lip.
      NOTE: Keep the lip free of foreign objects.
    2. Using SST and a hammer, tap in the new oil seal until its surface is flush with the oil pump edge.

      SST 09223-00010

      NOTE:
      • Be careful not to tap the oil seal at an angle.
      • Wipe off extra grease on the crankshaft.

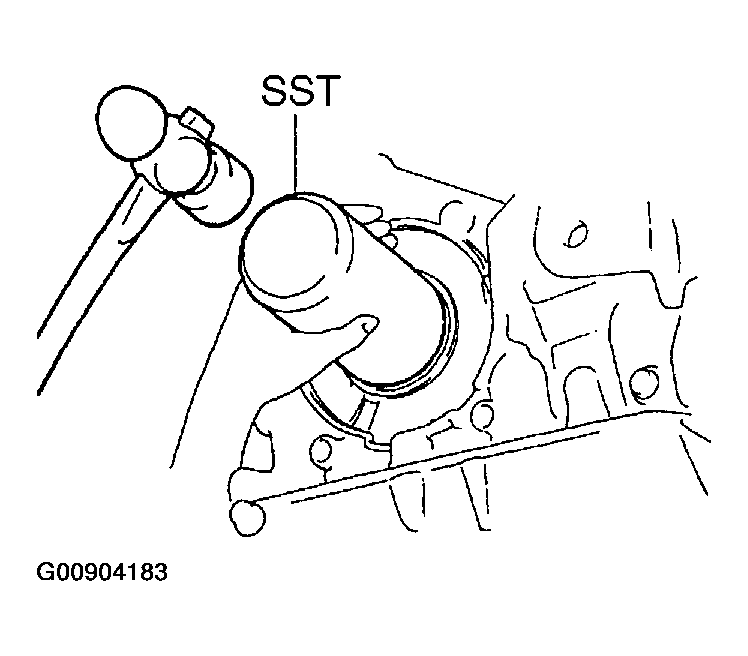

        Fig 3: Taping In Oil Seal Using SST And Hammer
        G00904183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL CRANKSHAFT TIMING PULLEY
    1. Align the keyway of the pulley with the key located on the crankshaft, then slide the pulley into place.
      NOTE: Do not scratch the sensor area of the crankshaft timing pulley.
    2. Install the timing belt plate with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

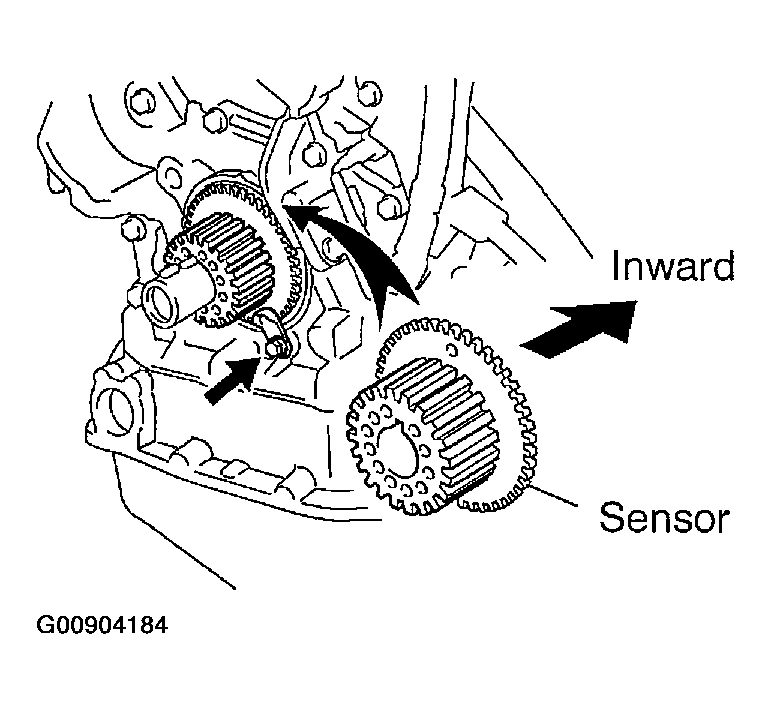

      Fig 4: Locating Key On Crankshaft
      G00904184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSPECT TIMING BELT (See  REPLACEMENT   )
  19. INSTALL TIMING BELT (See  REPLACEMENT   )

    SST 09960-10010 (09962-01000, 09963-01000)

  20. INSTALL TIMING BELT TENSIONER ASSY (See  REPLACEMENT   )
  21. INSTALL TIMING BELT GUIDE NO. 2 (See  REPLACEMENT   )
  22. INSTALL ENGINE MOUNTING BRACKET RH (See  REPLACEMENT   )
  23. INSTALL TIMING BELT NO. 2 COVER (See  REPLACEMENT   )
  24. INSTALL TIMING BELT NO. 1 COVER (See  REPLACEMENT   )
  25. INSTALL CRANKSHAFT PULLEY (See  REPLACEMENT   )

    SST 09213-54015 (91651-60855), 09330-00021

  26. INSTALL GENERATOR BRACKET NO. 2 (See  REPLACEMENT   )
  27. INSTALL ENGINE MOUNTING STAY NO. 2 RH (See  REPLACEMENT   )
  28. INSTALL ENGINE MOVING CONTROL ROD (See  REPLACEMENT   )
  29. INSTALL VANE PUMP V BELT (See  REPLACEMENT   )
  30. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1 (See  REPLACEMENT   )
  31. INSPECT DRIVE BELT DEFLECTION AND TENSION (See  INSPECTION   )
  32. INSTALL FRONT WHEEL RH (See  REPLACEMENT   )
  33. CHECK FOR ENGINE OIL LEAKS
