Drive Pinion: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Adjust backlash and tooth contact of the hypoid gear set. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>FRONT DIFFERENTIAL>ADJUSTMENT .
  2. Install a new O-ring to converter case.
    NOTE: Apply CVTF to the O-rings.
    G08318083Courtesy of SUBARU OF AMERICA, INC.
  3. Apply liquid gasket to the mating surface of the drive pinion retainer as shown in the figure, and temporarily install the drive pinion retainer.
    NOTE:
    • Before applying liquid gasket, degrease the old liquid gasket seal surface of the drive pinion retainer and converter case.
    • Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1215B or equivalent

    G13225955Courtesy of SUBARU OF AMERICA, INC.

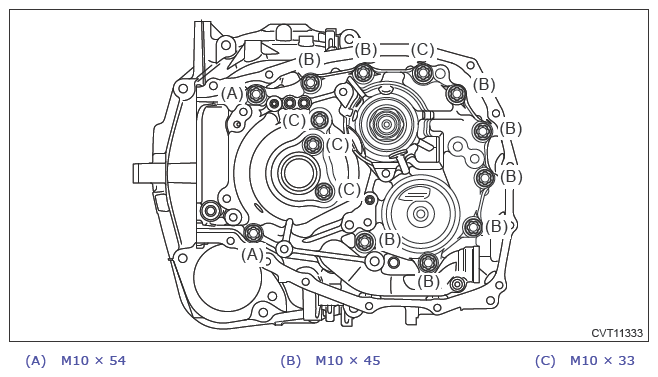

  4. Tighten the bolt using the ST.

    Preparation tool:

    ST: SOCKET (E20) (18270KA020)

    Tightening torque:

    43 N.m (4.4 kgf-m, 31.7 ft-lb)

    G14394260Courtesy of SUBARU OF AMERICA, INC.
  5. Install the forward clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>FORWARD CLUTCH>INSTALLATION .
  6. Install the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>REVERSE BRAKE>INSTALLATION .
  7. Install the primary pulley, secondary pulley and variator chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>PRIMARY PULLEY AND SECONDARY PULLEY>INSTALLATION .
  8. Install the reduction drive gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>REDUCTION DRIVE GEAR>INSTALLATION .
  9. Install the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION CASE>INSTALLATION .
  10. Install the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION CONTROL DEVICE>INSTALLATION .
  11. Install the oil strainer and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>OIL PAN>INSTALLATION .
  12. Install the reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>REDUCTION DRIVEN GEAR>INSTALLATION .
  13. Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>PARKING PAWL>INSTALLATION .
  14. Install the transfer driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSFER DRIVEN GEAR>INSTALLATION .
  15. Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSFER CLUTCH>INSTALLATION .
  16. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>EXTENSION CASE>INSTALLATION .
  17. Install the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>ELECTRIC FLUID PUMP>INSTALLATION .
  18. Install the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>INHIBITOR SWITCH>INSTALLATION .
  19. Install the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>SECONDARY SPEED SENSOR>INSTALLATION .
  20. Install the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>PRIMARY SPEED SENSOR>INSTALLATION .
  21. Install the turbine speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TURBINE SPEED SENSOR>INSTALLATION .
  22. Install the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION HARNESS>INSTALLATION .
  23. Install the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>CONTROL VALVE BODY>INSTALLATION .
  24. Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>AIR BREATHER HOSE>INSTALLATION .
  25. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION ASSEMBLY>INSTALLATION .
