Parking Pawl: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Confirm that the inhibitor switch is in the "N range".

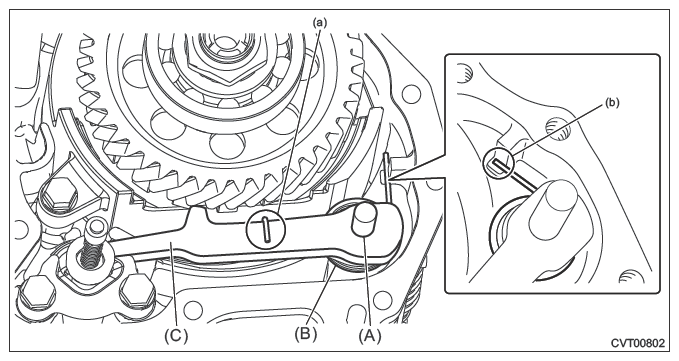

  2. Install the parking pawl shaft (A), return spring (B) and parking pawl (C).
    NOTE: Make sure that the end of return spring sticks out of parking pawl as shown in (a). Make sure that the other end contacts the rib of transmission case as shown in (b).
    G13225833Courtesy of SUBARU OF AMERICA, INC.
  3. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>EXTENSION CASE>INSTALLATION .
  4. Install the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>ELECTRIC FLUID PUMP>INSTALLATION .
  5. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION ASSEMBLY>INSTALLATION .
