Side Impact Sensor (Rear Wheel House)

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cushion assembly rear seat and the backrest assembly rear seat. Ref. to SEATS>REAR SEAT>REMOVAL .
  3. Remove the cover side sill front Rr and the cover side sill front Ft. Ref. to EXTERIOR/INTERIOR TRIM>LOWER INNER TRIM>REMOVAL .
  4. Remove the weather strip body side flange front. Ref. to EXTERIOR BODY PANELS>WEATHER STRIP>REPLACEMENT .
  5. Remove the trunk trim panel side. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  6. Remove the trim panel assembly quarter. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
  7. Remove the Side impact sensor (rear wheel house).
    1. Disconnect the airbag connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>EACH IMPACT SENSOR .

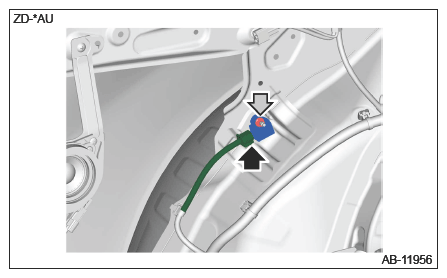

    2. Remove the nut, and remove the side impact sensor (rear wheel house).
G16526721Courtesy of SUBARU OF AMERICA, INC.
