Lower Inner Trim: Removal

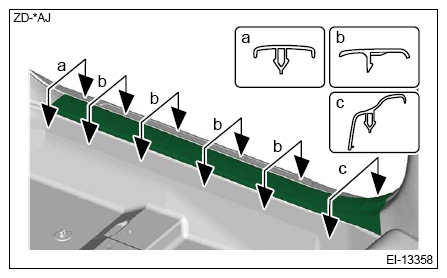

  1. Release the claws, and then remove the cover side sill front Rr.
    CAUTION: Do not pull with excessive force. Claws of the cover side sill front Rr may be damaged.
    G16527321Courtesy of SUBARU OF AMERICA, INC.

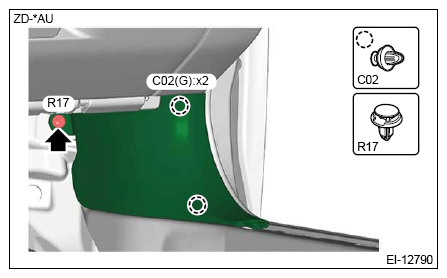

  2. Remove the clips, and remove the cover side sill front Ft.
    G16527322Courtesy of SUBARU OF AMERICA, INC.

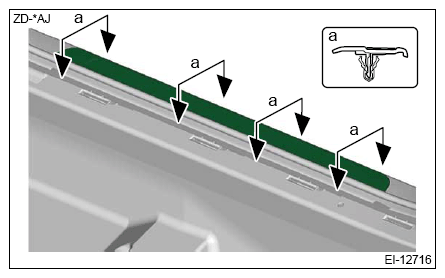

  3. Release the claws, and then remove the cover side sill front OUT.
CAUTION: Do not pull with excessive force. Claws of the cover side sill front OUT may be damaged.
G16527323Courtesy of SUBARU OF AMERICA, INC.
