Trunk Room Trim: Removal

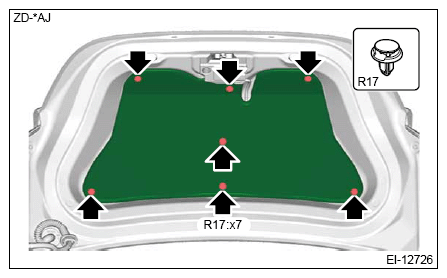

  1. Remove the clips, and remove the trim panel trunk lid.
    G16527336Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the mat trunk.

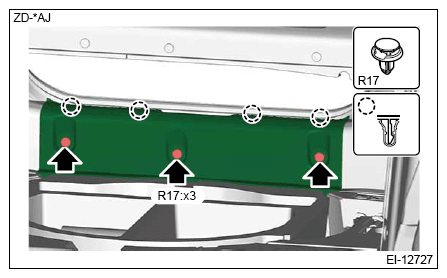

  3. Remove the trim panel trunk rear.
    1. Remove the clip.
    2. Release the claws, and remove the trim panel trunk rear.
    G16527337Courtesy of SUBARU OF AMERICA, INC.

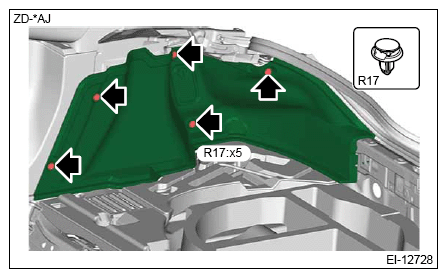

  4. Release the clips and remove the trunk trim panel side.
G16527338Courtesy of SUBARU OF AMERICA, INC.
