Rear Shelf Trim: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cushion assembly rear seat and the backrest assembly rear seat. Ref. to SEATS>REAR SEAT>REMOVAL .
  3. Remove the cover side sill front Rr and the cover side sill front Ft. Ref. to EXTERIOR/INTERIOR TRIM>LOWER INNER TRIM>REMOVAL .
  4. Remove the weather strip body side flange front. Ref. to EXTERIOR BODY PANELS>WEATHER STRIP>REPLACEMENT .
  5. Remove the trunk trim panel side. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  6. Remove the trim panel assembly quarter and the trim panel assembly C pillar rear. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .

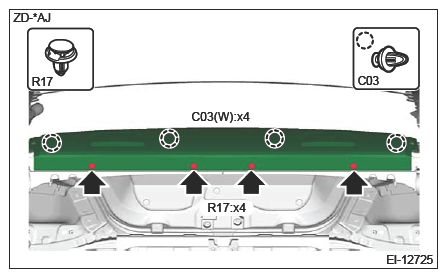

  7. Remove the trim panel assembly rear shelf.
    1. Release the clips.
    2. Pull the trim panel assembly rear shelf towards you to remove it.
G16527335Courtesy of SUBARU OF AMERICA, INC.
