Roof Trim: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM"  . Ref. to AIRBAG SYSTEM>General Description>CAUTION .

Adjust the front seat position.

  1. Adjust the front seat position.
    1. Remove the headrest.
    2. Move the seat to the front-most position and tilt the backrest rearward.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the third-row seats. Ref. to SEATS>Third Seat>REMOVAL .
  4. Remove the lower inner trim on the left and right sides. Ref. to EXTERIOR/INTERIOR TRIM>Lower Inner Trim>REMOVAL .
  5. Remove the upper inner trim on the left and right sides. Ref. to EXTERIOR/INTERIOR TRIM>Upper Inner Trim>REMOVAL .
  6. Remove the rear quarter trim on the left and right sides. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .
  7. Remove the stereo camera cover assembly. Ref. to EyeSight>Stereo Camera>REMOVAL .
  8. Remove the left and right sun visor assembly. Ref. to EXTERIOR/INTERIOR TRIM>Sun Visor>REMOVAL .
  9. Remove all assist grips. Ref. to EXTERIOR/INTERIOR TRIM>Assist Grip>REMOVAL .

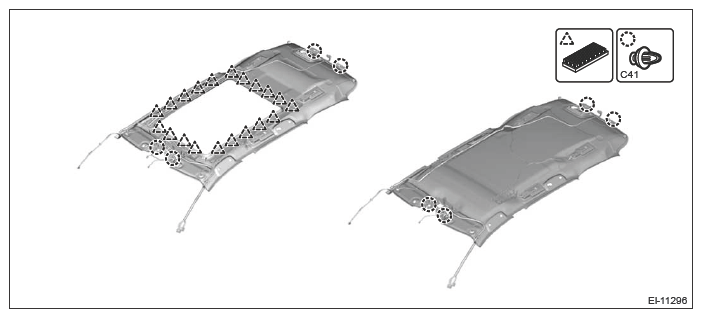

  10. Remove the trim panel sub assembly.
    1. Remove the harness clamp of the cord assembly feeder and the cord assembly roof, and disconnect the connectors.
    2. Remove the clip.
    3. Remove the weather strip body side flange from the front/rear and left/right doors, and remove the trim panel sub assembly.
G13201660Courtesy of SUBARU OF AMERICA, INC.
