Assist Grip: Removal

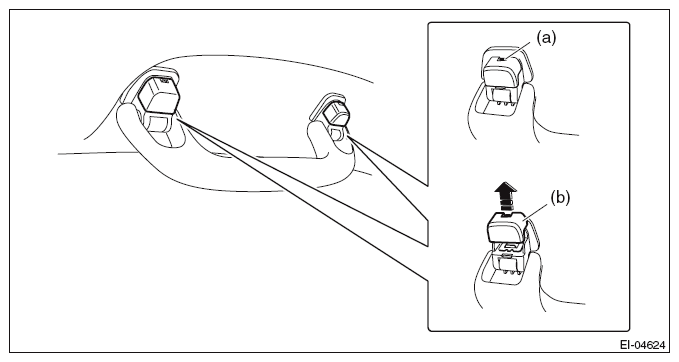

  1. Pull up the cap (b) while pulling the knob (a) toward you with a flat tip screwdriver or similar tool wrapped with a protection tape.
  2. Pull the assist grip toward yourself (toward the vehicle center) to remove.
G10273187Courtesy of SUBARU OF AMERICA, INC.
