Reduction Driven Gear: Installation

  1. Install the straight pin to reduction driven gear assembly.

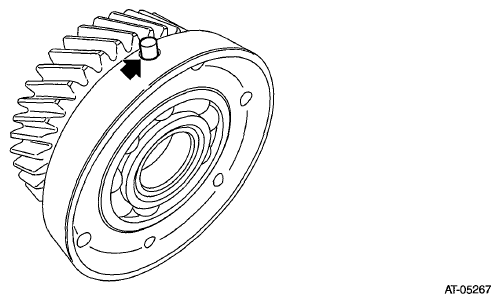

    Fig 1: Locating Reduction Driven Gear Assembly Straight Pin
    G06654607Courtesy of SUBARU OF AMERICA, INC.
  2. Fit the straight pin portion to the recess portion of transmission case and install the reduction driven gear and install the snap ring.

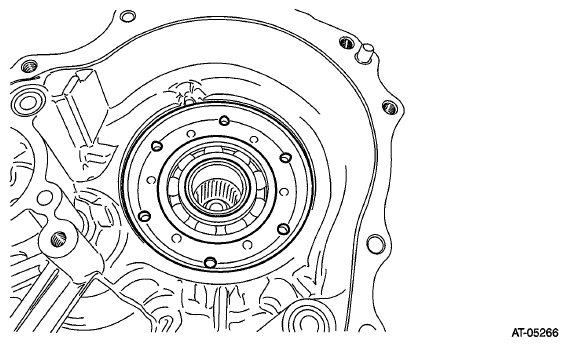

    Fig 2: Installing Reduction Driven Gear
    G06654606Courtesy of SUBARU OF AMERICA, INC.
  3. Select the snap ring. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Reduction Driven Gear>ADJUSTMENT .
  4. Replace with the selected snap ring.
    NOTE: If the clearance measured in step 3) is within standard, the snap ring replacement is not necessary.
  5. Install the forward clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Forward Clutch Assembly>INSTALLATION .
  6. Install the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Intermediate Case>INSTALLATION .
  7. Install the transfer reduction driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>INSTALLATION .
  8. Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Clutch>INSTALLATION .
  9. Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>INSTALLATION .
  10. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>INSTALLATION .
  11. Install the transmission to vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>INSTALLATION .
