Rear Drive Shaft: Installation

  1. Select the thrust needle bearing. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>ADJUSTMENT .
  2. Install the selected thrust needle bearing to transfer clutch assembly.
    NOTE: Install the thrust needle bearing in the correct direction.
    Fig 1: Installing Thrust Needle Bearing Into Transfer Clutch Assembly
    G06654499Courtesy of SUBARU OF AMERICA, INC.
  3. Install the rear drive shaft.

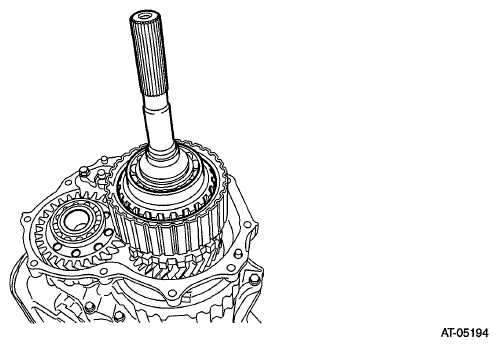

    Fig 2: Identifying Rear Drive Shaft
    G06654502Courtesy of SUBARU OF AMERICA, INC.
  4. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>INSTALLATION .
  5. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>INSTALLATION .
