Transfer Reduction Driven Gear: Installation

  1. Install the reduction driven gear assembly.

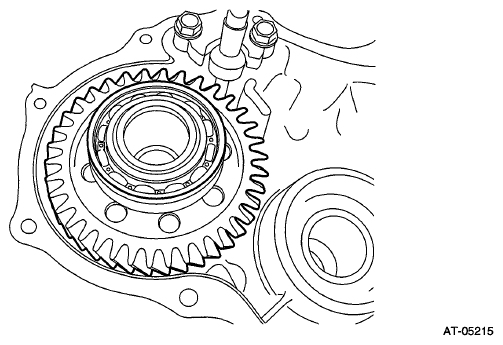

    Fig 1: Identifying Reduction Driven Gear Assembly
    G06654532Courtesy of SUBARU OF AMERICA, INC.
  2. Select shims. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>ADJUSTMENT .
  3. Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Clutch>INSTALLATION .
  4. Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>INSTALLATION .
  5. Mount the selected shim onto ball bearing.
  6. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>INSTALLATION .
  7. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>INSTALLATION .
