HVAC System (Heater, Ventilator And A/C): Condenser: Removal

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Using the refrigerant recovery system, discharge refrigerant. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>Refrigerant Recovery Procedure>PROCEDURE .
3. Remove the air intake duct.
   • Non-turbo model: Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL .
   • Turbo model: Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .
4. Remove the reservoir tank.
   • Non-turbo model: Ref. to COOLING(H4DO)>Reservoir Tank>REMOVAL .
   • Turbo model: Ref. to COOLING(H4DOTC)>Reservoir Tank>REMOVAL .
5. Remove the bracket - grille.
   1. Remove each bumper clip.
      Fig 1: Locating Bumper And Grille Bracket Clips

      Courtesy of SUBARU OF AMERICA, INC.
   2. Remove the clip, and remove the bracket - grille.
      CAUTION: Be careful not to damage the front grille assembly, etc.
   Fig 2: Locating Grille Bracket Clips

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the bolt, and disconnect the hose - pressure discharge and the pipe - evaporator cooling from the condenser assembly - air conditioner.
   CAUTION: Seal the disconnected hose, pipe and engaging part of condenser assembly with a plug or vinyl tape to prevent foreign matter from entering.

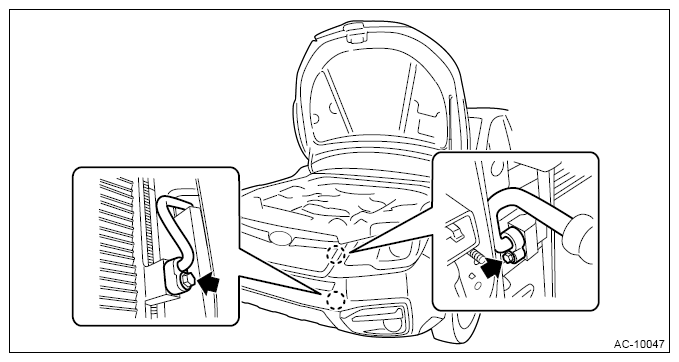

   Fig 3: Locating Condenser Assembly Pressure Discharge And Evaporator Cooling Pipe Hose Bolts

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the bolts and remove the radiator upper bracket.
   Fig 4: Locating Radiator Upper Bracket Bolts

   Courtesy of SUBARU OF AMERICA, INC.
8. Remove the condenser assembly - air conditioner.
   1. Remove the bolts at the bottom of the condenser.
      Fig 5: Locating Air Condenser Assembly Bolts

      Courtesy of SUBARU OF AMERICA, INC.
   2. Remove the bolts at the top of the condenser.
   3. By lifting the condenser assembly - air conditioner, pull it out through the space between the radiator and the radiator panel.
      CAUTION: Be careful not to damage the condenser and radiator fin. If a damaged fin is found, repair it using a thin screwdriver.

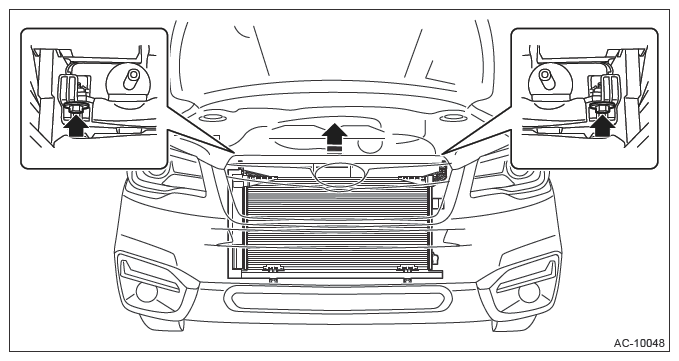

Fig 6: Removing Air Conditioner Condenser Assembly

Courtesy of SUBARU OF AMERICA, INC.
