Air Intake Duct: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip which secures air intake duct (rear), and remove the air intake duct (rear).

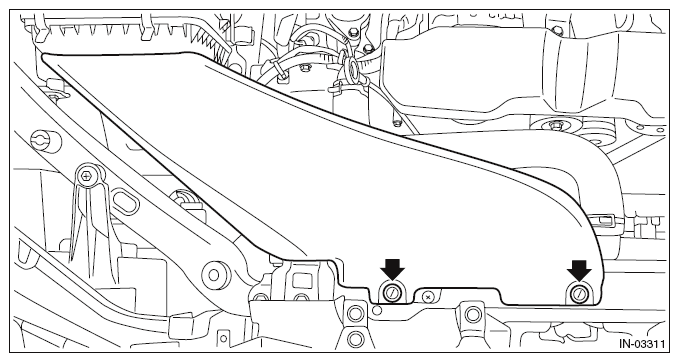

    Fig 1: Locating Air Intake Duct (Rear) Clips
    G09475821Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the clip (A) and four claws and then remove the air intake duct (front).

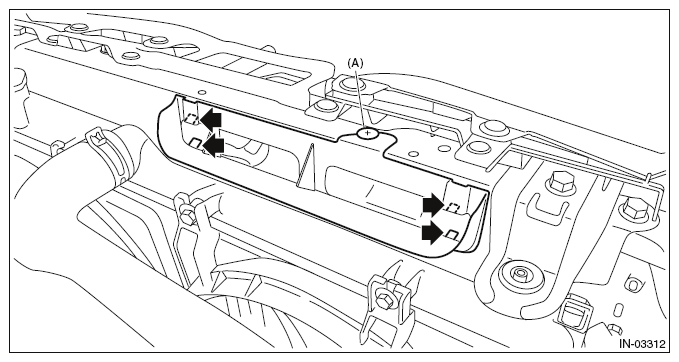

Fig 2: Locating Air Intake Duct (Front) Clip And Claws
G09475822Courtesy of SUBARU OF AMERICA, INC.
