Reservoir Tank: Removal

  1. Disconnect the over flow hose (A) connected to the radiator filler neck from the reservoir tank.
  2. Pull out the reservoir tank to the arrow direction while pushing the claw (B).

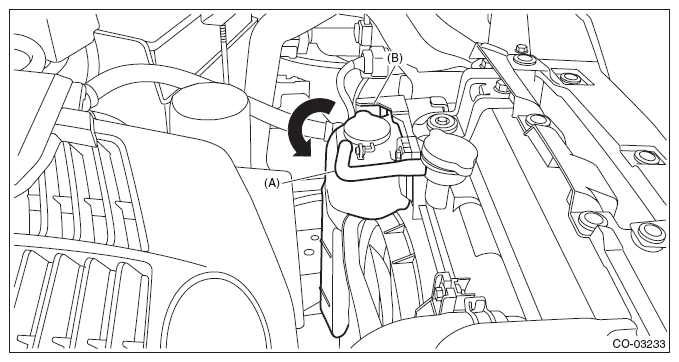

Fig 1: Disconnecting Over Flow Hose
G09480829Courtesy of SUBARU OF AMERICA, INC.
