Air Intake Duct: Removal

  1. Remove the clip which secures air intake duct (rear), and remove the air intake duct (rear).

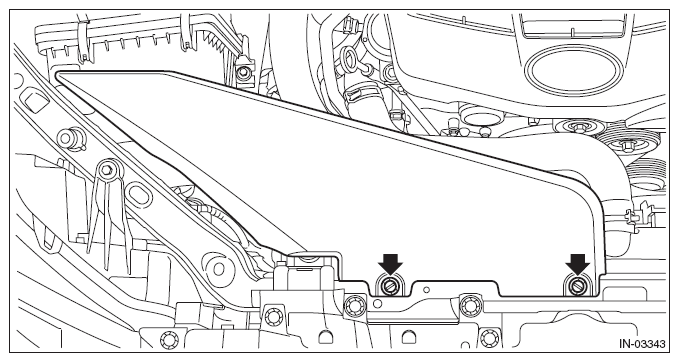

    Fig 1: Locating Air Intake Duct (Rear) With Clip
    G09480070Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the clip (A) and four claws and then remove the air intake duct (front).

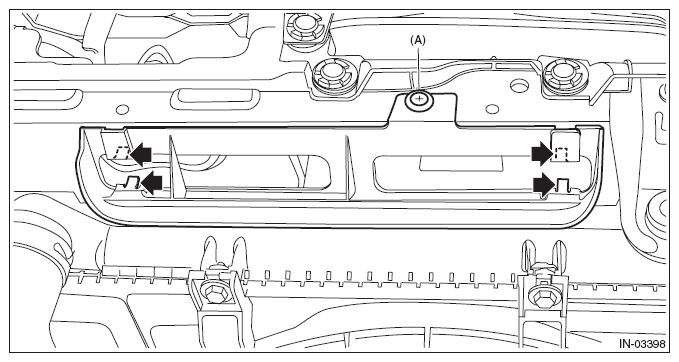

    Fig 2: Locating Air Intake Duct (Front) With Clip And Claws
    G09480071Courtesy of SUBARU OF AMERICA, INC.
