Reservoir Tank: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the over flow hose (A) connected to the radiator filler neck from the reservoir tank.
  2. Pull out the reservoir tank to the arrow direction while pushing the claw (B).

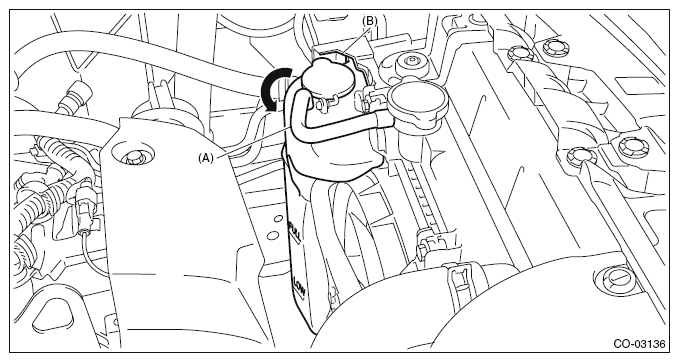

Fig 1: Pulling Out Reservoir Tank
G09476494Courtesy of SUBARU OF AMERICA, INC.
