Engine Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift.
Open front hood fully and support with stay.
Raise rear seat, and turn floor mat up.
Release fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , OPERATION, FUEL. >
Remove filler cap.
Collect refrigerant, and remove pressure hoses. (With A/C) < Ref. to REMOVAL , FLEXIBLE HOSE. >
Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake duct and air cleaner case. < Ref. to REMOVAL , AIR INTAKE DUCT > and < Ref. to REMOVAL , AIR CLEANER CASE. >
Remove under cover.
Remove radiator from vehicle. < Ref. to REMOVAL , RADIATOR. >
Remove ATF cooler pipe from body. < Ref. to REMOVAL , ATF COOLER PIPE AND HOSE. >
Remove air cleaner case stay.
- MT model

  Fig 2: Identifying Air Cleaner Case Stay - MT Model
  Courtesy of SUBARU OF AMERICA, INC.
- AT model

  Fig 3: Identifying Air Cleaner Case Stay - AT Model
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the following connectors and cables.
1. Engine ground terminal

  Fig 4: Identifying Engine Ground Cable
  Courtesy of SUBARU OF AMERICA, INC.
2. Engine harness connectors

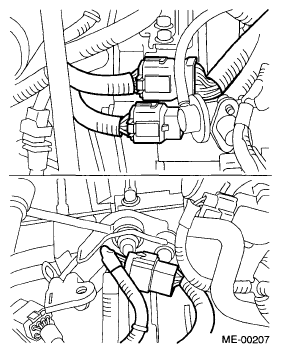

  Fig 5: Identifying Engine Harness Connectors
  Courtesy of SUBARU OF AMERICA, INC.
3. Alternator connector, terminal and A/C compressor connector

  Fig 6: Identifying Alternator Connector, Terminal And A/C Compressor Connector
  Courtesy of SUBARU OF AMERICA, INC.
4. Accelerator cable and cruise control cable

  Fig 7: Identifying Accelerator Cable And Cruise Control Cable
  Courtesy of SUBARU OF AMERICA, INC.
5. Pressure switch

  Fig 8: Identifying Pressure Switch
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the following hoses.
1. Brake booster vacuum hose

  Fig 9: Disconnecting Brake Booster Vacuum Hose
  Courtesy of SUBARU OF AMERICA, INC.
2. Heater inlet/outlet hose

  Fig 10: Disconnecting Heater Inlet/Outlet Hose
  Courtesy of SUBARU OF AMERICA, INC.
Remove power steering pump from bracket.
1. Remove resonator chamber.

  Fig 11: Removing Resonator Chamber
  Courtesy of SUBARU OF AMERICA, INC.
2. Loosen lock bolt and slider bolt, and remove front side V-belt.
  < Ref. to REMOVAL , V-BELT. >
3. Remove pipe with bracket.

  Fig 12: Identifying Pipe With Bracket
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove bolts which install power steering pump bracket.

  Fig 13: Locating Power Steering Pump Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.
5. Remove power steering tank from the bracket by pulling it upward.

  Fig 14: Pulling Power Steering Tank
  Courtesy of SUBARU OF AMERICA, INC.
6. Place power steering pump on the right side wheel apron.

  Fig 15: Placing Power Steering Pump On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.
Remove front and center exhaust pipe.
< Ref. to REMOVAL , FRONT EXHAUST PIPE > and < Ref. to REMOVAL , CENTER EXHAUST PIPE. >
Remove nuts which hold lower side of transmission to engine.

Fig 16: Locating Lower Side Of Transmission To Engine Nuts Location
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which install front cushion rubber onto front crossmember.

Fig 17: Locating Front Cushion Rubber Nuts
Courtesy of SUBARU OF AMERICA, INC.
Separate torque converter clutch from drive plate. (AT model)
1. Lower the vehicle.
2. Remove service hole plug.
3. Remove bolts which hold torque converter clutch to drive plate.
4. Remove other bolts while rotating the crankshaft pulley using ST.
ST 499977100 CRANK PULLEY WRENCH

Fig 18: Removing Housing Cover Mounting Bolts Using Socket Wrench
Courtesy of SUBARU OF AMERICA, INC.
Remove pitching stopper.

Fig 19: Identifying Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Disconnect fuel delivery hose, return hose and evaporation hose using ST.
ST 42099AE000 CONNECTOR REMOVER
CAUTION:
- Disconnect hose with its end wrapped with cloth to prevent fuel from splashing.
- Catch fuel from hose into container.

  Fig 20: Disconnecting Fuel Delivery Hose
  Courtesy of SUBARU OF AMERICA, INC.
Support engine with a lifting device and wire ropes.

Fig 21: Supporting Engine With Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Support transmission with a garage jack.
CAUTION: Before moving engine away from transmission, check to be sure no work has been overlooked. Doing this is very important in order to facilitate re-installation and because transmission lowers under its own weight.

Fig 22: Supporting Transmission With Garage Jack
Courtesy of SUBARU OF AMERICA, INC.
Separation of engine and transmission.
1. Remove starter. < Ref. to REMOVAL , STARTER. >
2. Remove bolts which hold upper side of transmission to engine.

  Fig 23: Locating Upper Side Of Transmission Bolts Location
  Courtesy of SUBARU OF AMERICA, INC.
Install ST to torque converter clutch case. (AT model)
ST 498277200 STOPPER SET

Fig 24: Setting ST To Converter Clutch Case (AT Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove engine from vehicle.
1. Slightly raise engine.
2. Raise transmission with garage jack.
3. Move engine horizontally until main shaft is withdrawn from clutch cover.
4. Slowly move engine away from engine room.
CAUTION: Be careful not to damage adjacent parts or body panels with crank pulley, oil level gauge, etc.

Fig 25: Supporting Engine With Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Remove front cushion rubbers.
