Remove/Install Panoramic Roof - AR77.21-P-0750SRA
MODEL 453.3
with CODE E22 (Panoramic sunroof)
MODIFICATION NOTES
| 17.08.2017 | Workshop equipment is linked in EPC with replacement part. | Only use linked workshop equipment. |
| Notes on removal/installation of windows | AH67.10-P-1000-02RT | ||
| Preparation | |||
| 1 | Workshop equipment is linked in EPC with replacement part. | ||
| Remove | |||
| 2 | Remove roller sun blind from rear panoramic roof | AR77.21-P-0205SRA | |

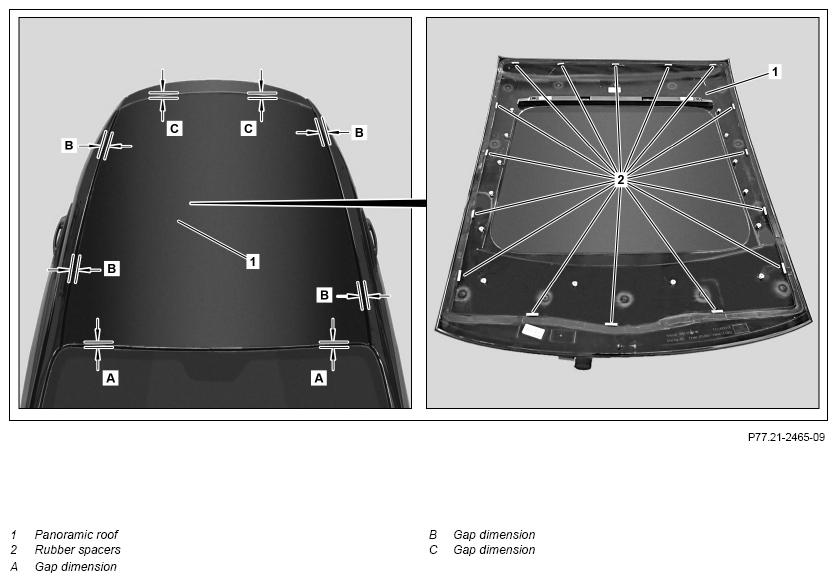

| 3 | Determine gap dimensions (A), (B) and (C) with feeler gauge and note | Fig 1 | |
| Risk of injury from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows | Wear protective gloves and safety glasses. | AS67.00-Z-0004-01A | |
| 4 | Cut out panoramic roof | AR77.21-P-0750-01SRA | |
| Install | |||
| 5 | Open driver door side window | The side window of the driver door should remain open during the curing time. Otherwise the glass pane can be pressed toward outside by the air when the doors are closed. |
|
| 6 | Replace rubber spacers (2) on panoramic roof (1) | ||
| 7 | Prepare glass pane on panoramic roof for installation | AR77.21-P-0750-02SRA | |
| 8 | Prepare panoramic roof frame for installation | AR77.21-P-0800-02SRA | |
| 9 | Apply adhesive material for glass pane on panoramic roof | AR77.21-P-0750-04SRA | |
| 10 | Install glass pane on panoramic roof | AR77.21-P-0750-05SRA | |
| 11 | Remove/install roller sun blind on panoramic roof | AR77.21-P-0205SRA |
